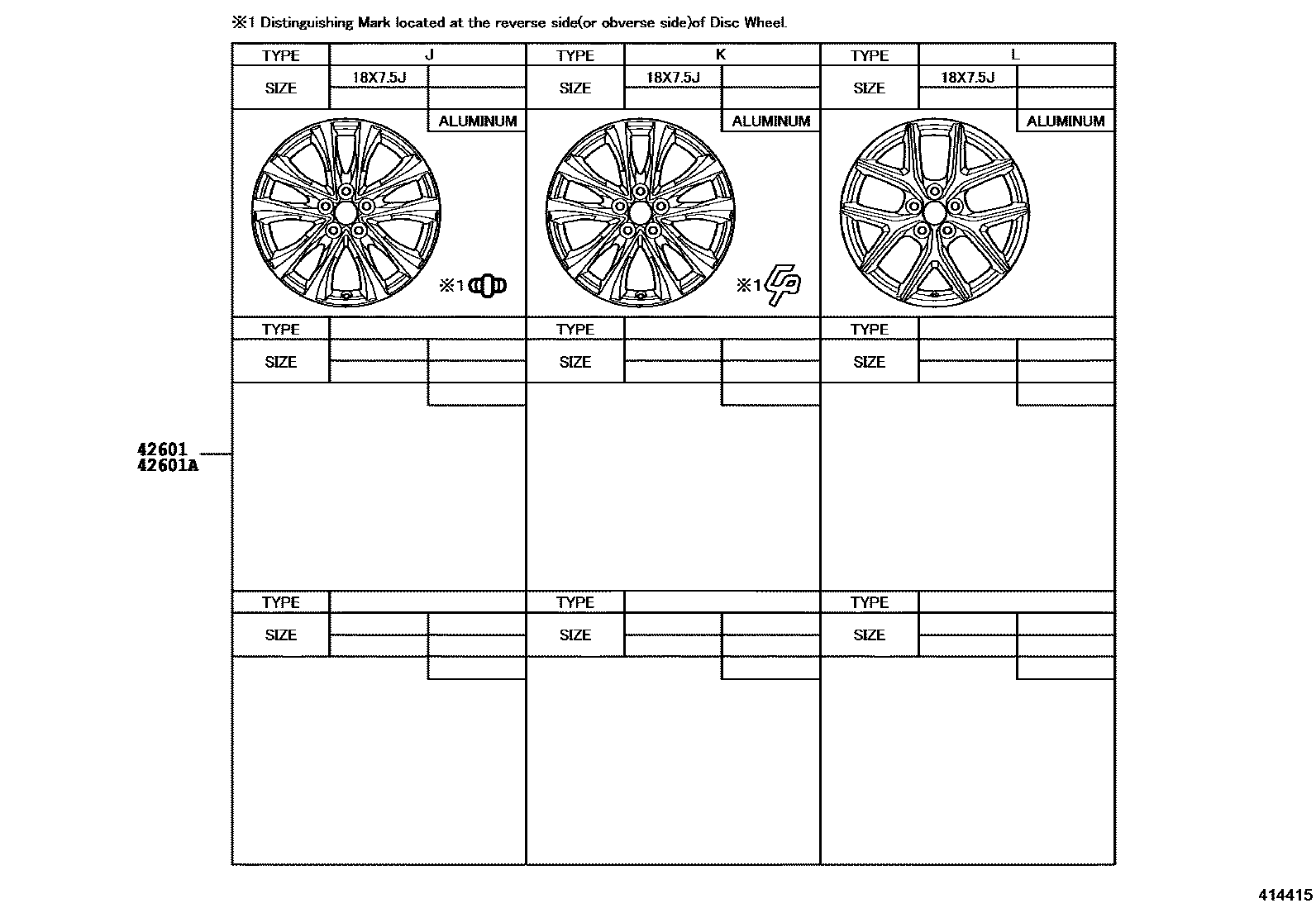

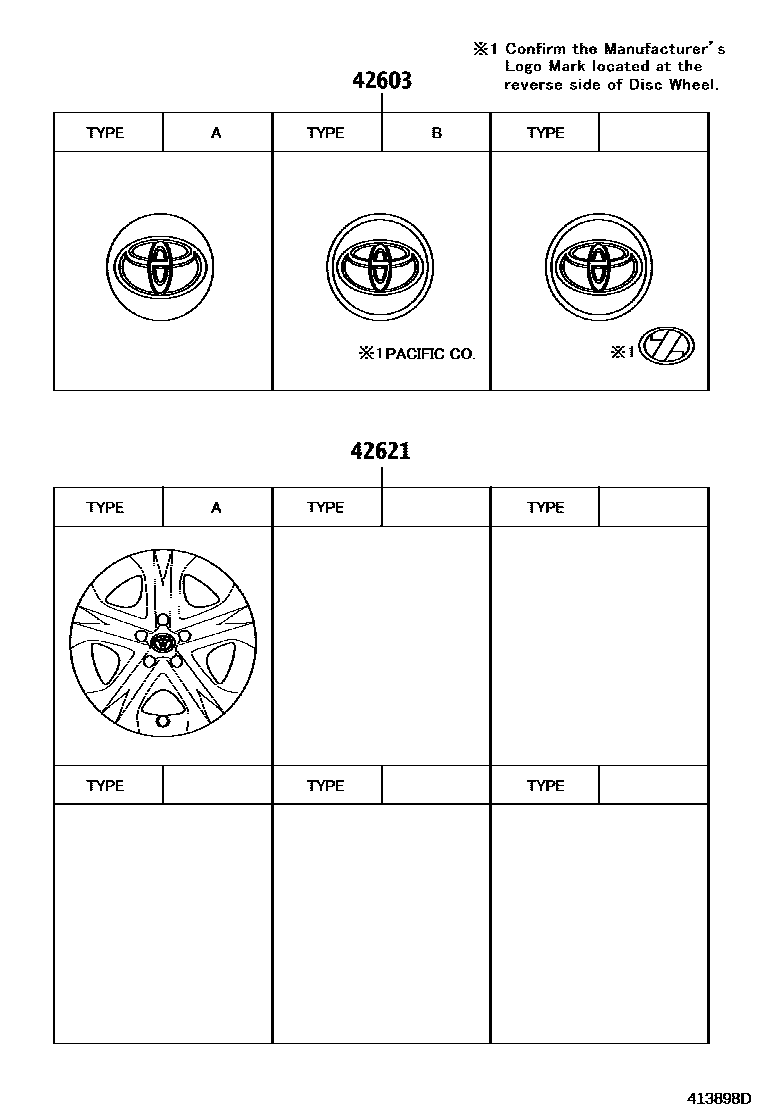

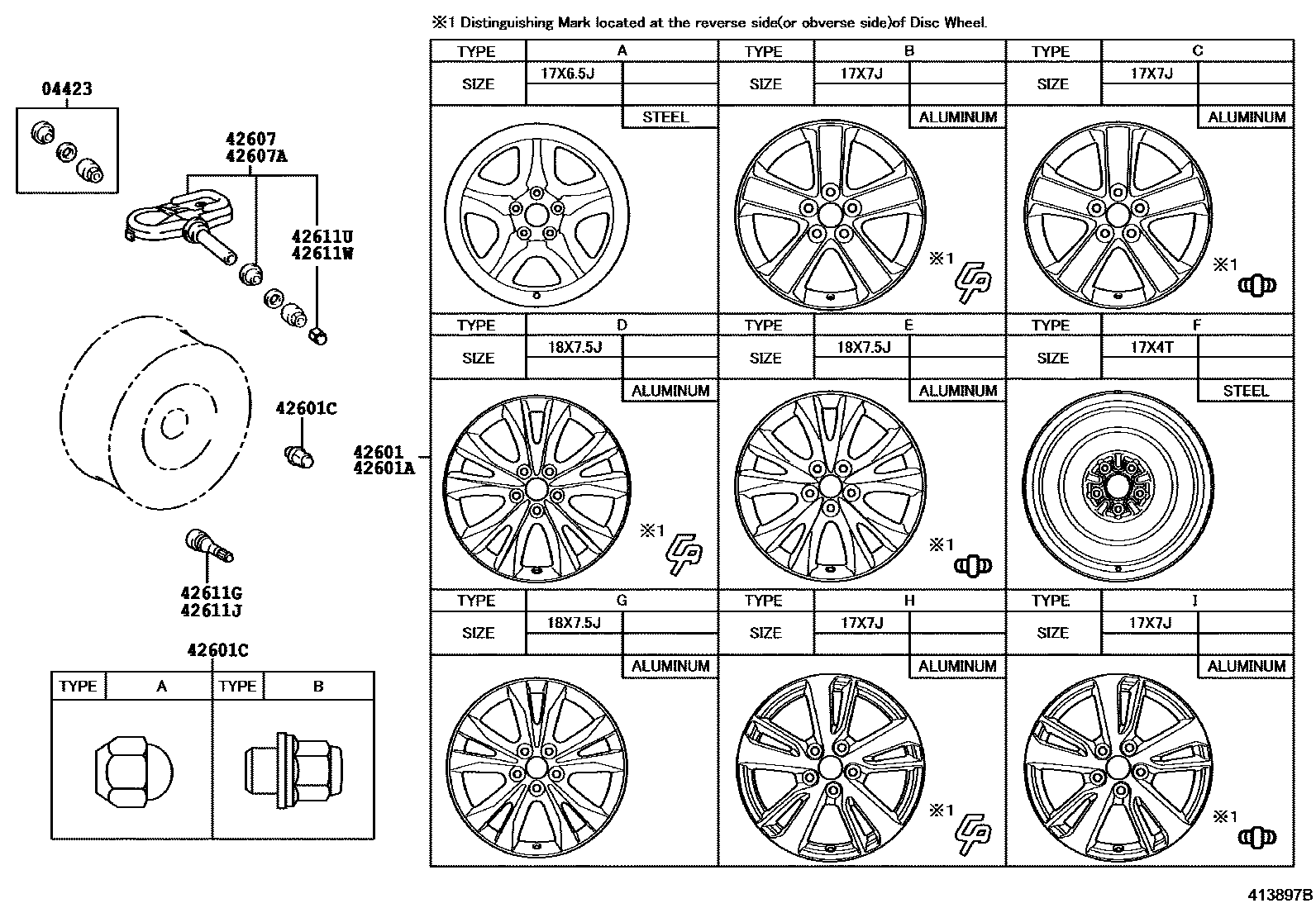

Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0C170 · 04423-0E010 |
| 42601 | spoke wheel | 42611-0R090 · 42611-0R100 · 42611-0R110 · 42611-0R150 · 42611-0R160 · 42611-0R170 · 42611-0R190 · 42611-0R200 · 42611-42561 · 4261A-0R010 · 4261A-0R020 · 4261A-0R030 |
| 42601A | Spoke wheel (for spare tire) | 42611-06380 · 42611-0R090 · 42611-0R100 · 42611-0R150 · 42611-0R170 · 42611-0R190 · 4261A-0R010 |
| 42601C | Hub nut (for axle) | 90084-94001 · 90942-01021 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-06150 · 42603-06160 · 42603-0R010 · 42603-48140 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06020 · 42607-0R010 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-06020 · 42607-0R010 |
| 42611G | Valve (for tubeless tires) | 90080-45006 |
| 42611J | Valve (for tubeless spare tire) | 90080-45006 |
| 42611U | tire valve cover | 90942-A5002 · 90942-A5004 |
| 42611W | Tire valve cap (for spare tire) | 90942-A5002 · 90942-A5004 |
| 42621 | wheel cover | 42602-0R020 · 42602-0R030 · 42602-42020 · 42602-42030 |
