Toyota RAV4 中央支架和行星太阳齿轮(ATM) — Figure 3508

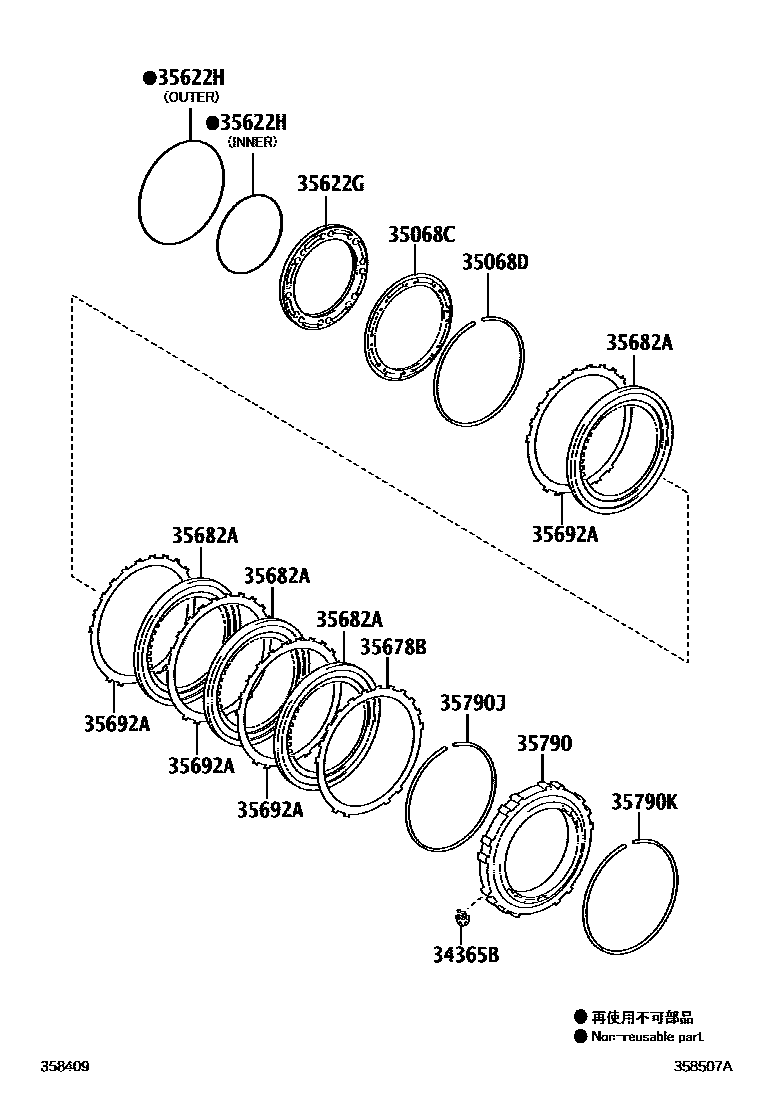

Toyota RAV4 EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34365B | Outer race retainer | 34365-33021 |
| 35068C | First and reverse brake return spring sub-assembly | 35068-08010 · 35068-33030 |
| 35068D | Shaft snap ring (for first and reverse brake return spring) | 90520-99109 · 90520-A0013 |
| 35622G | Brake piston No. 2 | 35622-06010 · 35622-33030 |
| 35622H | O-ring (for brake piston No. 2) | 90301-99156 · 90301-99157 · 90301-99190 · 90301-99191 · 90301-A0023 · 90301-A0025 |
| 35678B | No. 2 brake flange | 35678-06090 · 35678-06100 · 35678-06110 · 35678-06120 · 35678-06130 · 35678-08060 · 35678-08070 · 35678-08080 · 35678-08090 · 35678-08100 · 35678-33060 · 35678-33070 · 35678-33080 · 35678-33090 · 35678-33100 |
| 35682A | Brake disc No. 2 | 35682-73020 |
| 35692A | No. 2 brake pad | 35692-0R010 · 35692-73020 |
| 35790 | One-way clutch assembly | 35791-08010 · 35791-48010 · 35791-73011 |
| 35790J | No. 1 snap ring (for one-way clutch) | 90520-99105 · 90520-A0014 |
| 35790K | No. 2 snap ring (for one-way clutch) | 90520-99106 · 90520-A0015 |
