Toyota RAV4 变矩器、前油泵和链条(ATM) — Figure 3502

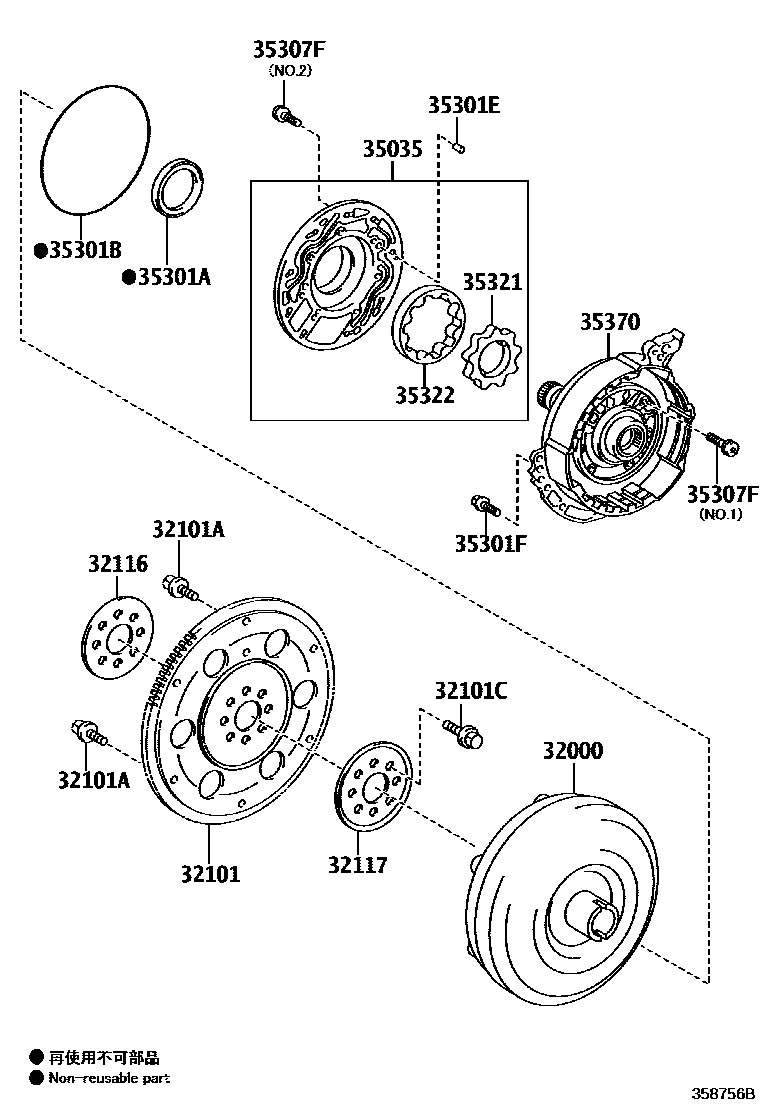

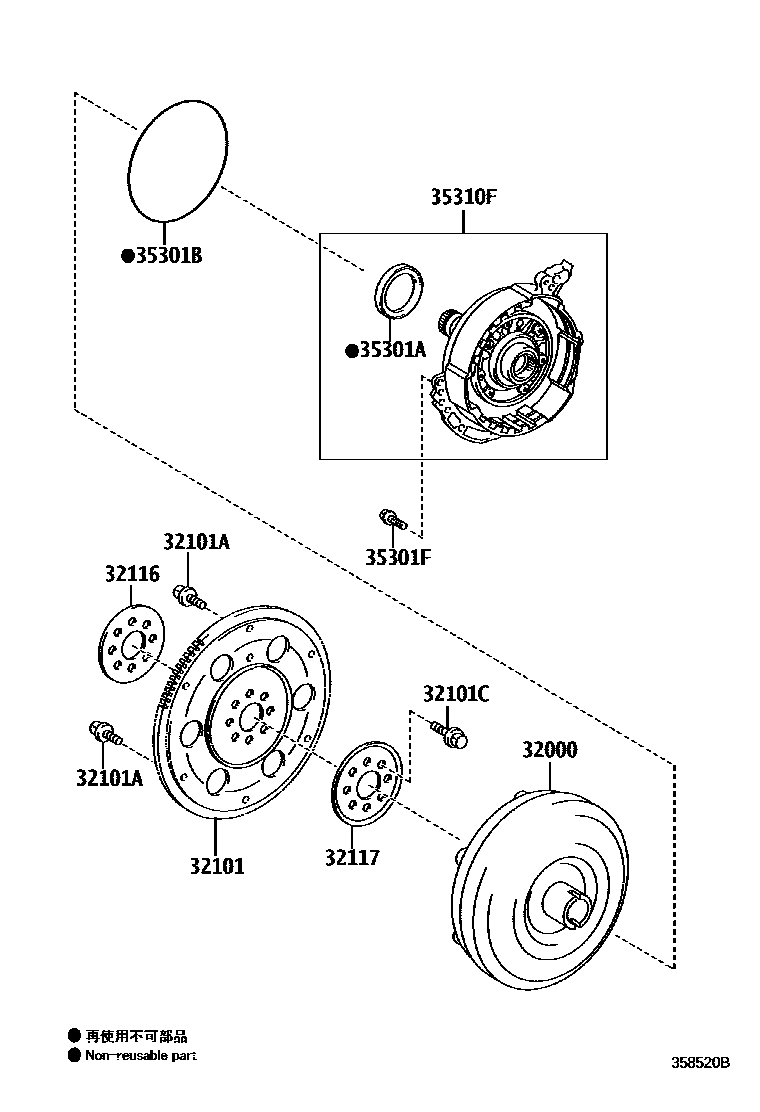

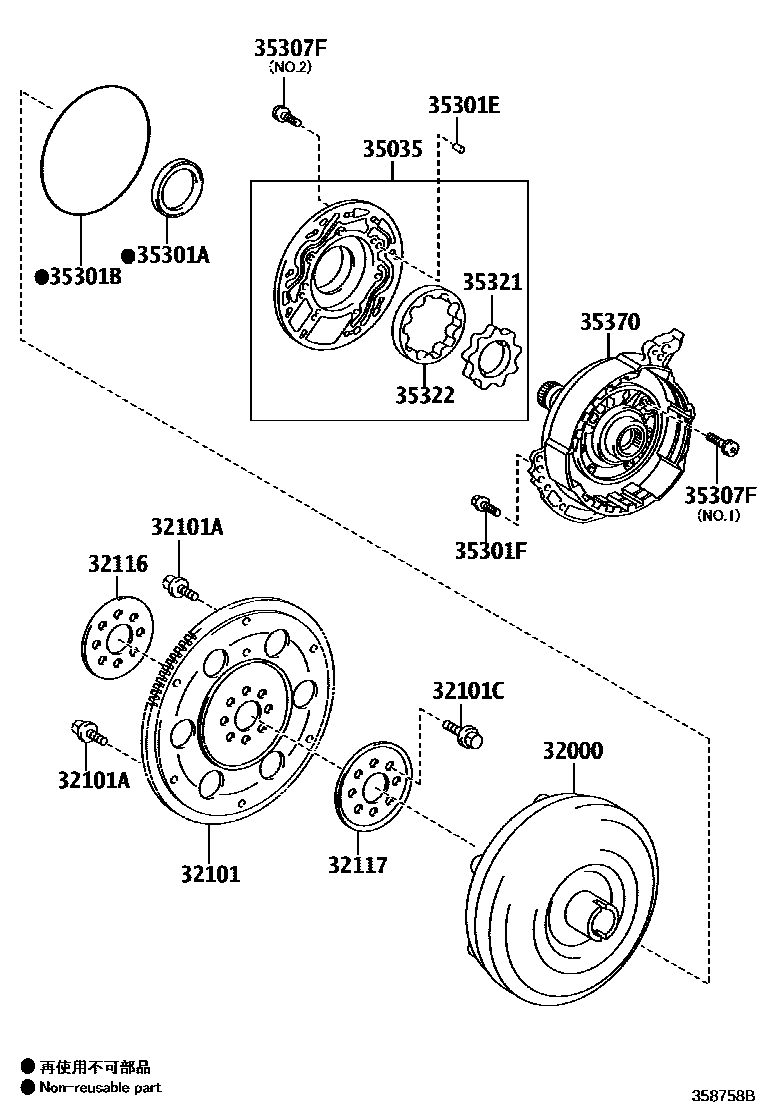

Toyota RAV4 EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-06050 · 32000-06051 · 32000-06052 · 32000-73011 · 32000-73012 · 32000-73013 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-06050 · 32101-73010 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-09001 · 90119-09025 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-12384 |
| 32116 | Front transmission plate spacer | 32116-20050 |
| 32117 | Rear transmission plate spacer | 32117-20060 |
| 35035 | Front oil pump and gear body sub-assembly | 35035-06021 · 35035-0R011 · 35035-33043 · 35035-73013 |
| 35301A | Oil seal (for front oil pump) | 90311-43010 · 90311-A0010 |
| 35301B | O-ring (for front oil pump body) | 35697-06010 · 35697-33010 |
| 35301E | Direct sales (for front oil pump) | 90250-08052 · 90250-A0023 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-A0120 · 91551-80835 |
| 35307F | Bolt (for stator shaft) | 90148-60067 · 90148-60068 · 90148-A0010 · 90148-A0011 |
| 35310F | ENSEMBLE POMPE, A HUILE AVANT | 35310-73013 |
| 35321 | Front oil pump driving gear | 35321-06110 · 35321-06120 · 35321-06130 · 35321-06140 · 35321-06150 · 35321-0R060 · 35321-0R070 · 35321-0R080 · 35321-0R090 · 35321-0R100 · 35321-73010 · 35321-73020 · 35321-73030 · 35321-73040 · 35321-73050 |
| 35322 | Front oil pump driven gear | 35322-06110 · 35322-06120 · 35322-06130 · 35322-06140 · 35322-06150 · 35322-0R060 · 35322-0R070 · 35322-0R080 · 35322-0R090 · 35322-0R100 · 35322-73010 · 35322-73020 · 35322-73030 · 35322-73040 · 35322-73050 |
| 35370 | stator shaft assembly | 35370-06021 · 35370-0R011 · 35370-33043 · 35370-73013 |
