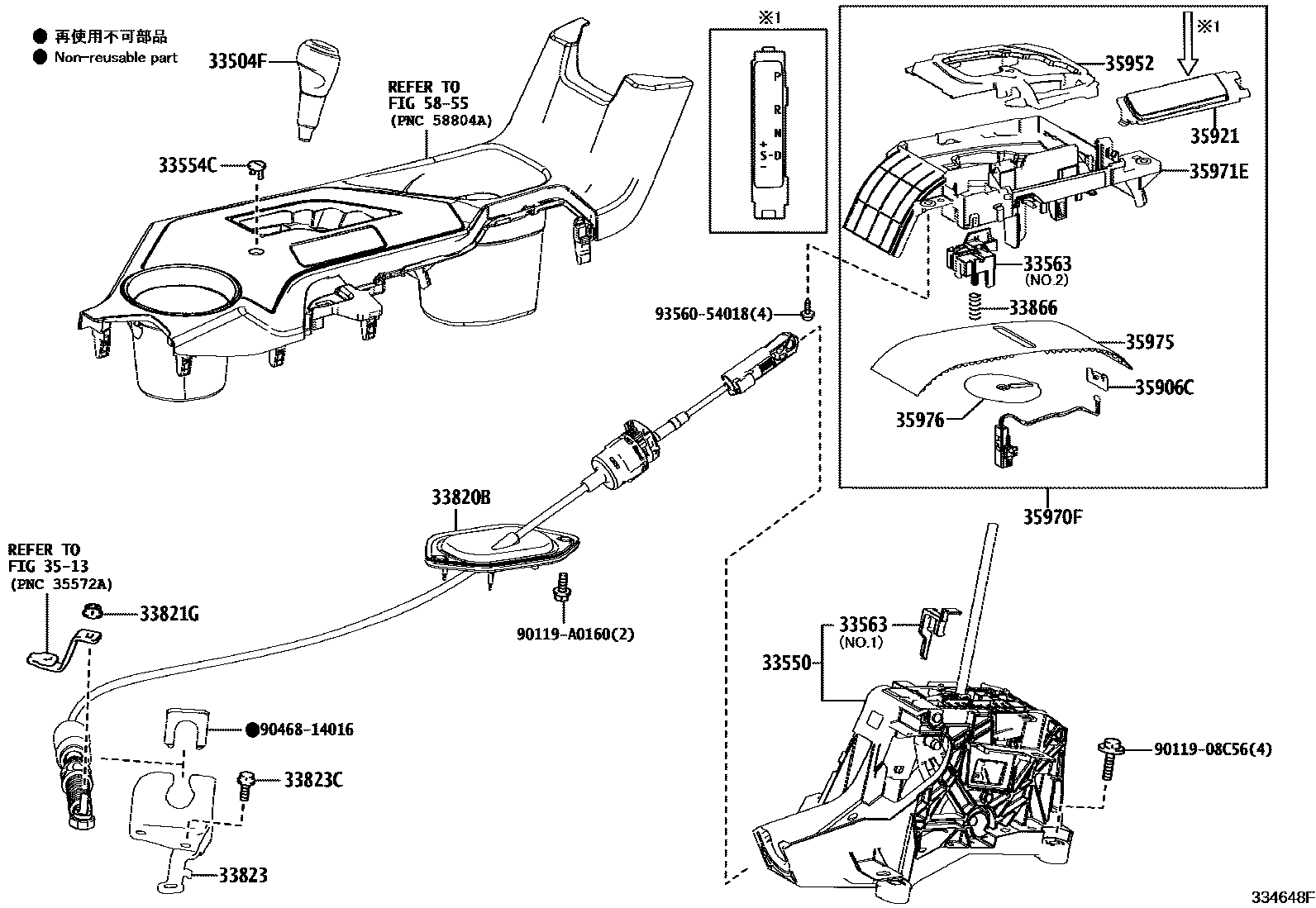

Toyota RAV4 Shift Lever & Retainer — Figure 3312
Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33550 | Transmission floor shift assembly | 33550-0R040 |
| 33554C | Shift lock release button cover | 33554-0R020 · 33554-0R040 |
| 33563 | Shift lock release button | 33563-06190 · 33563-0R040 |
| 33820B | Transmission control cable assembly | 33820-0R080 |
| 33821G | Nut (for transmission control cable) | 90178-A0017 |
| 33823 | No. 1 transmission control cable bracket | 33823-0R060 |
| 33823C | Bolt (for transmission control cable bracket) | 90080-11199 · 90119-A0234 |
| 33866 | Shift lock release spring | 33866-33010 |
| 35906C | PUCE, TEMOIN LUMINEUX | 35906-49005 |
| 35921 | control position indicator board | 35921-0R010 |
| 35952 | Position indicator lampshade | 35952-0R010 |
| 35970F | Position indicator light housing assembly | 35970-0R040 · 35970-0R090 |
| 35971E | position indicator housing | 35971-0R010 |
| 35975 | Slide cover (for position indicator light) | 35975-0R030 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-0R030 |
