Toyota RAV4 起动机 — Figure 1904

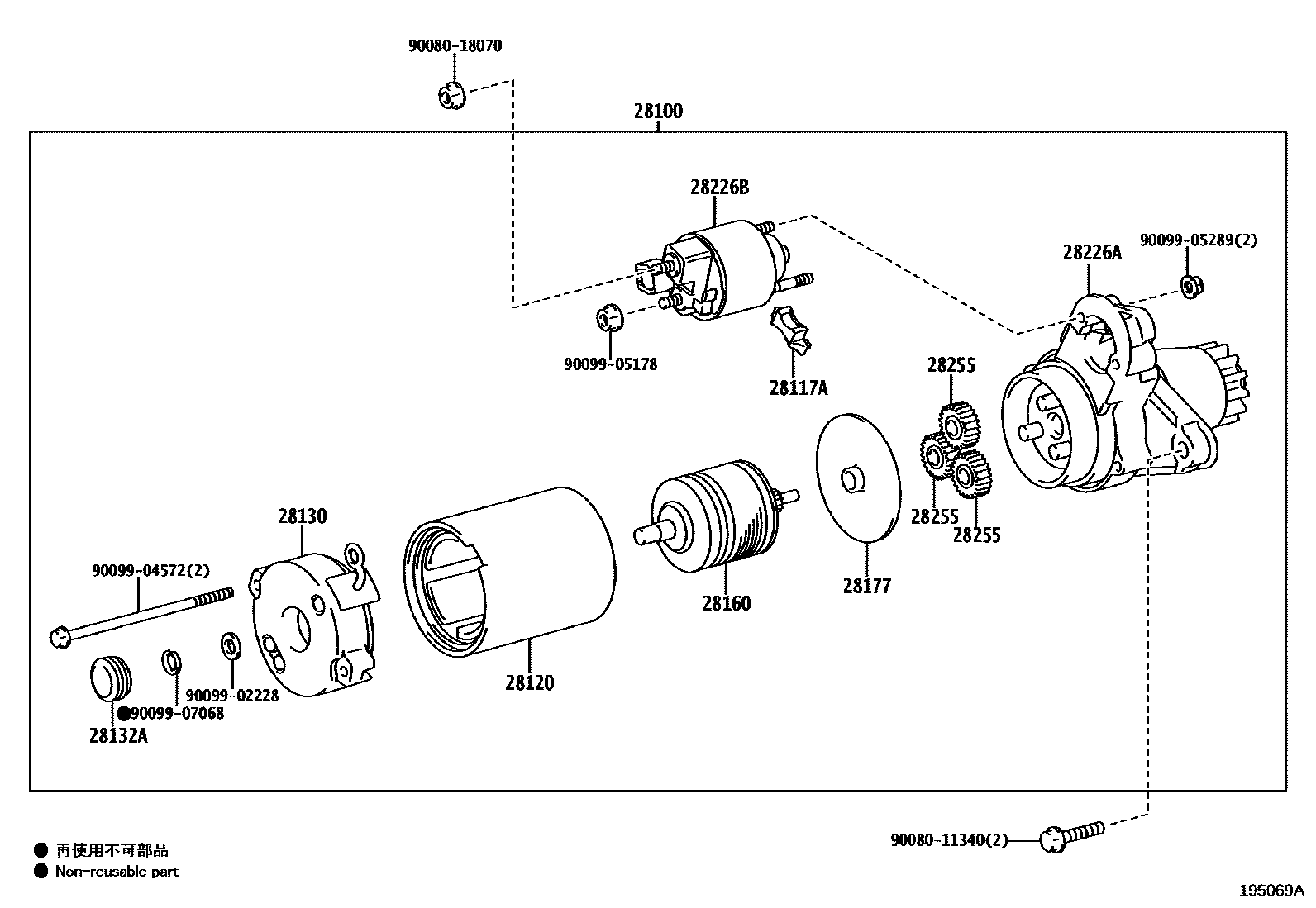

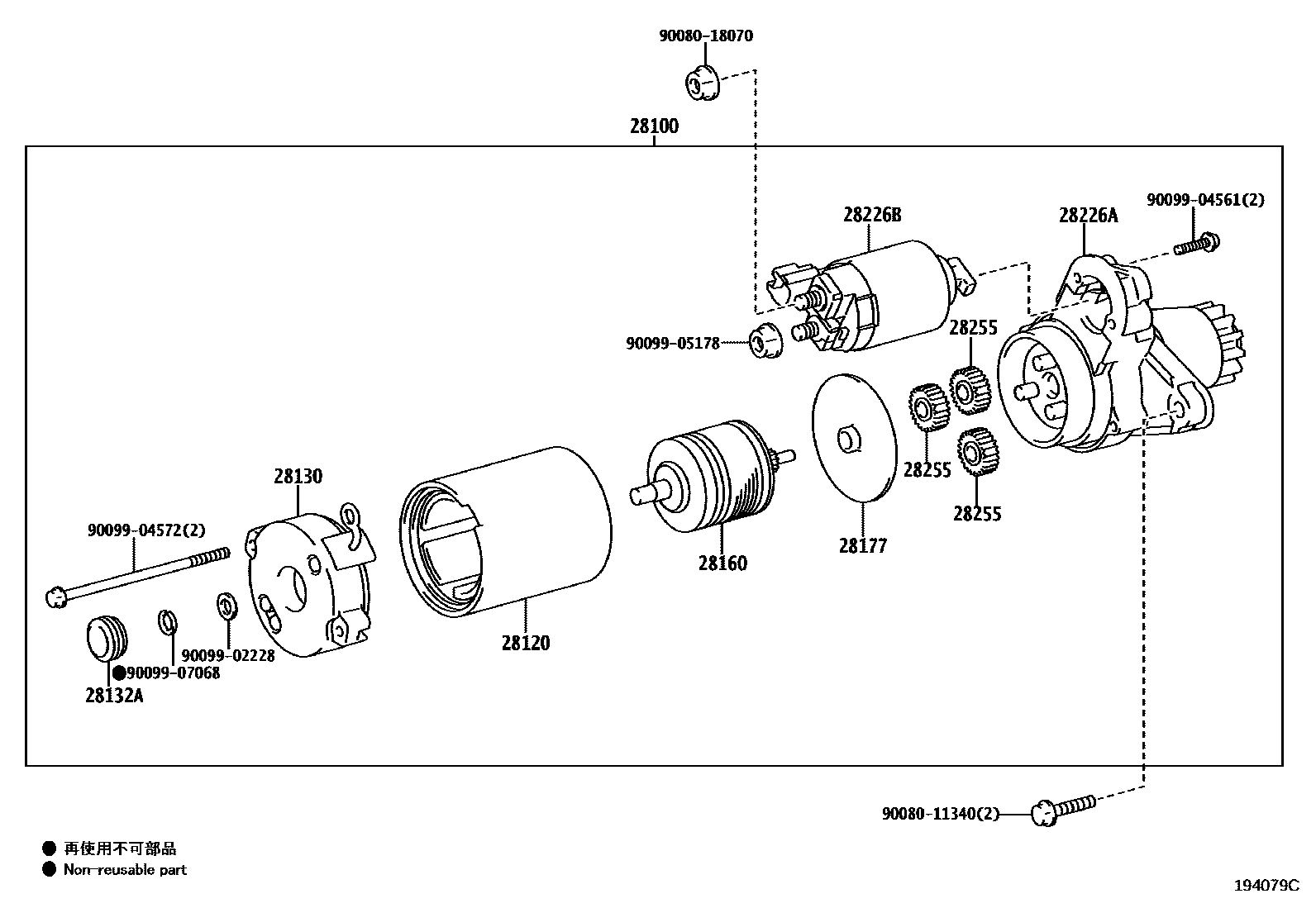

Toyota RAV4 EPC diagram 1904, 起动机, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28100 | Starter assembly | 28100-0A011 · 28100-0V012 |
| 28117A | Rubber seal | 28117-0P030 |
| 28120 | Starter yoke assembly | 28120-0P030 · 28120-28060 |
| 28130 | Starter commutator end frame assembly | 28130-20020 |
| 28132A | Starter commutator end frame cover | 28132-28040 |
| 28160 | Starter armature assembly | 28160-28040 |
| 28177 | Plate (for starter armature) | 28177-28040 |
| 28226A | Motor terminal starter assembly | 28226-0P030 · 28226-28041 |
| 28226B | starter magnetic switch | 28150-40090 · 28226-28051 |
| 28255 | Planetary gear | 28255-0A010 |
