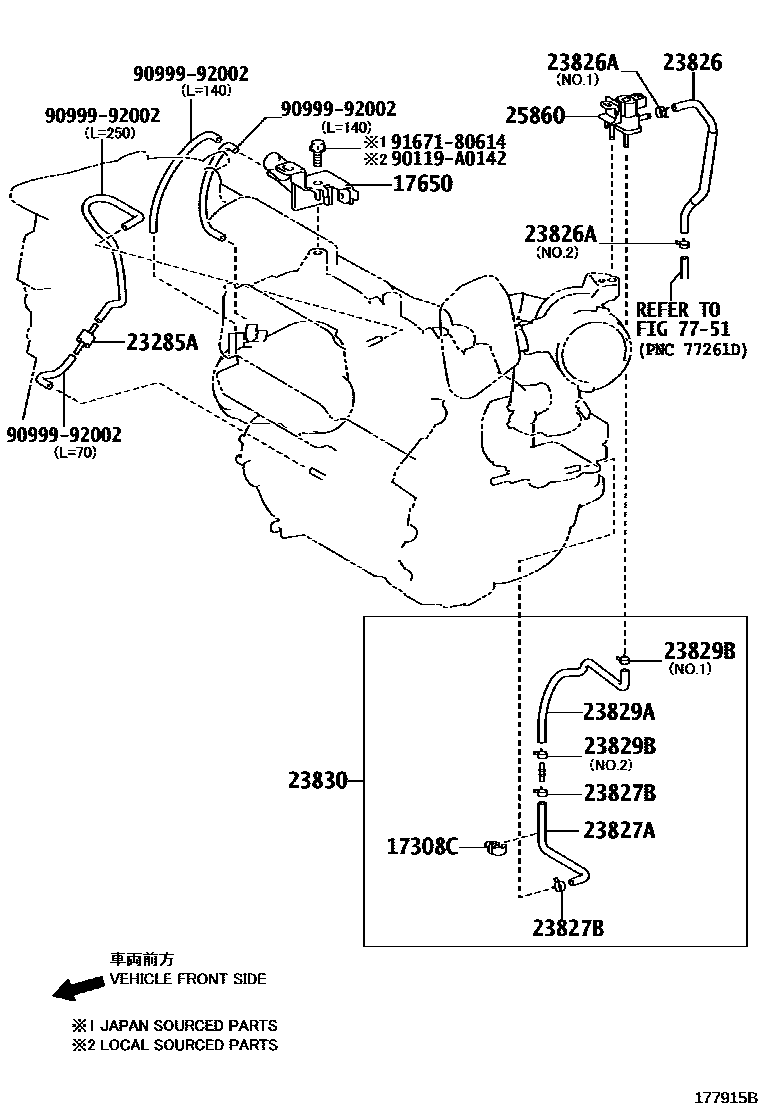

Toyota RAV4 vacuum tube — Figure 1708
Toyota RAV4 EPC diagram 1708, vacuum tube, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308C | Clamp (for vacuum hose) | 44783-70010 |
| 17650 | Vacuum switch valve assembly | 25860-0V050 · 25860-36010 |
| 23285A | No. 1 one-way valve | 90917-10065 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0V180 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 96132-51300 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0V010 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96133-41300 |
| 23829A | Fuel vapor supply hose | 23826-0V190 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-13004 · 96133-41300 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23830-0V120 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0V140 |
