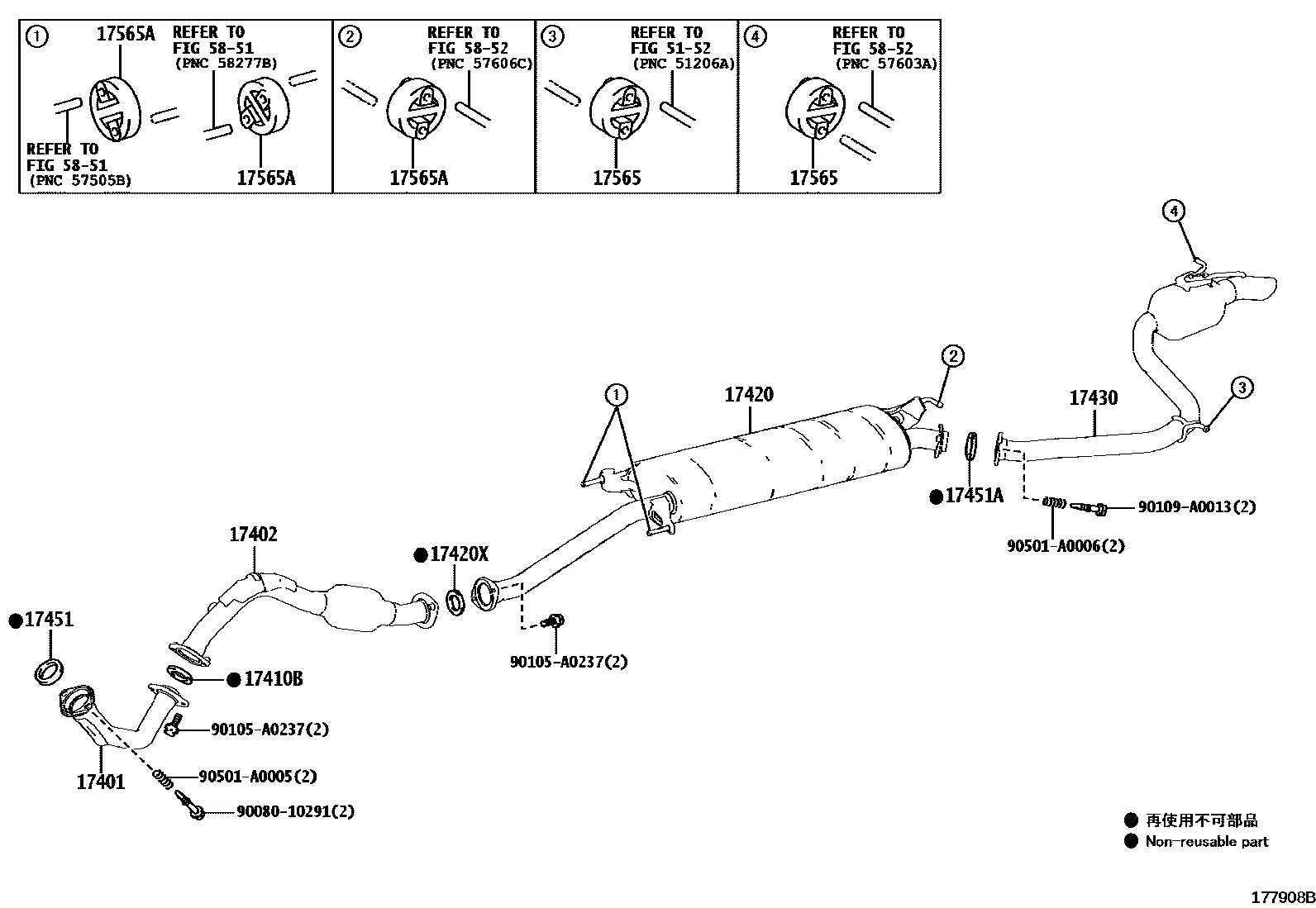

Toyota RAV4 Exhaust Pipe — Figure 1702
Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17401 | Front exhaust pipe sub-assembly | 17401-0V060 |
| 17402 | No. 2 front exhaust pipe sub-assembly | 17402-0V010 |
| 17410B | Exhaust pipe gasket | 90917-A6002 |
| 17420 | Central exhaust pipe assembly | 17420-0V220 |
| 17420X | Center exhaust pipe liner | 90917-A6002 |
| 17430 | Exhaust tailpipe assembly | 17430-0V240 · 17430-0V380 |
| 17451 | Exhaust pipe gasket | 17451-0D150 |
| 17451A | No. 2 exhaust pipe gasket | 17451-0V040 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0P031 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0P041 |
