Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603

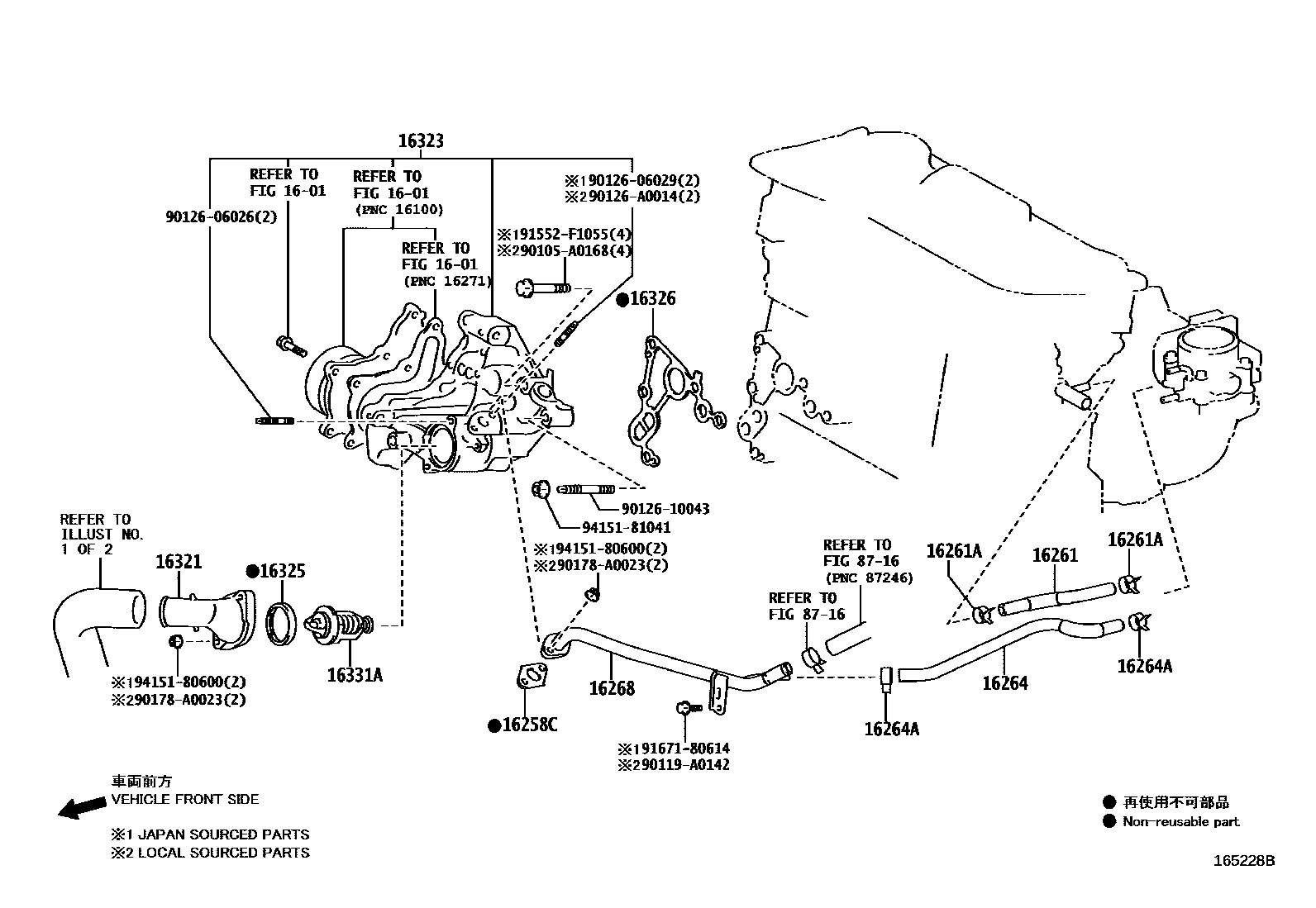

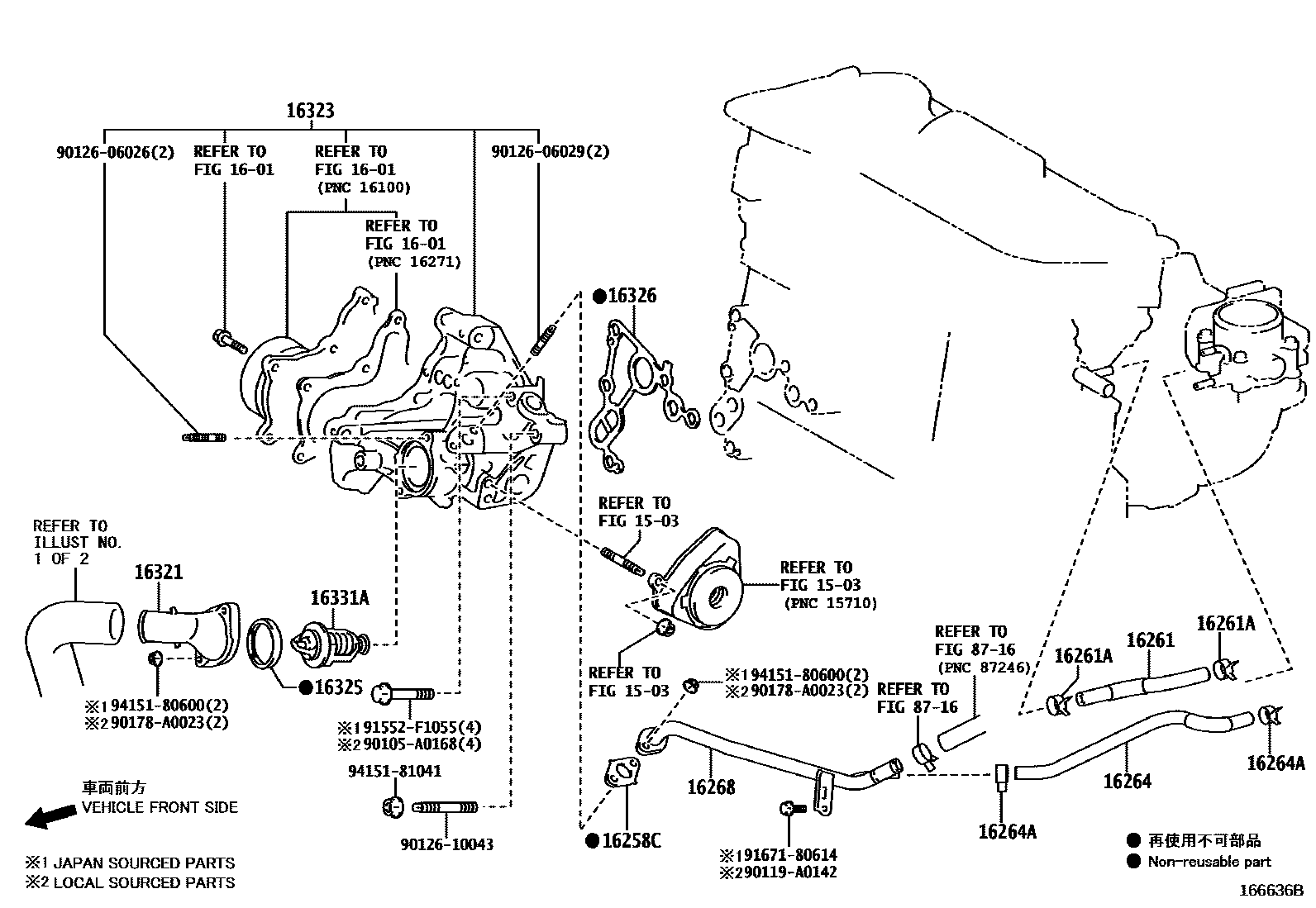

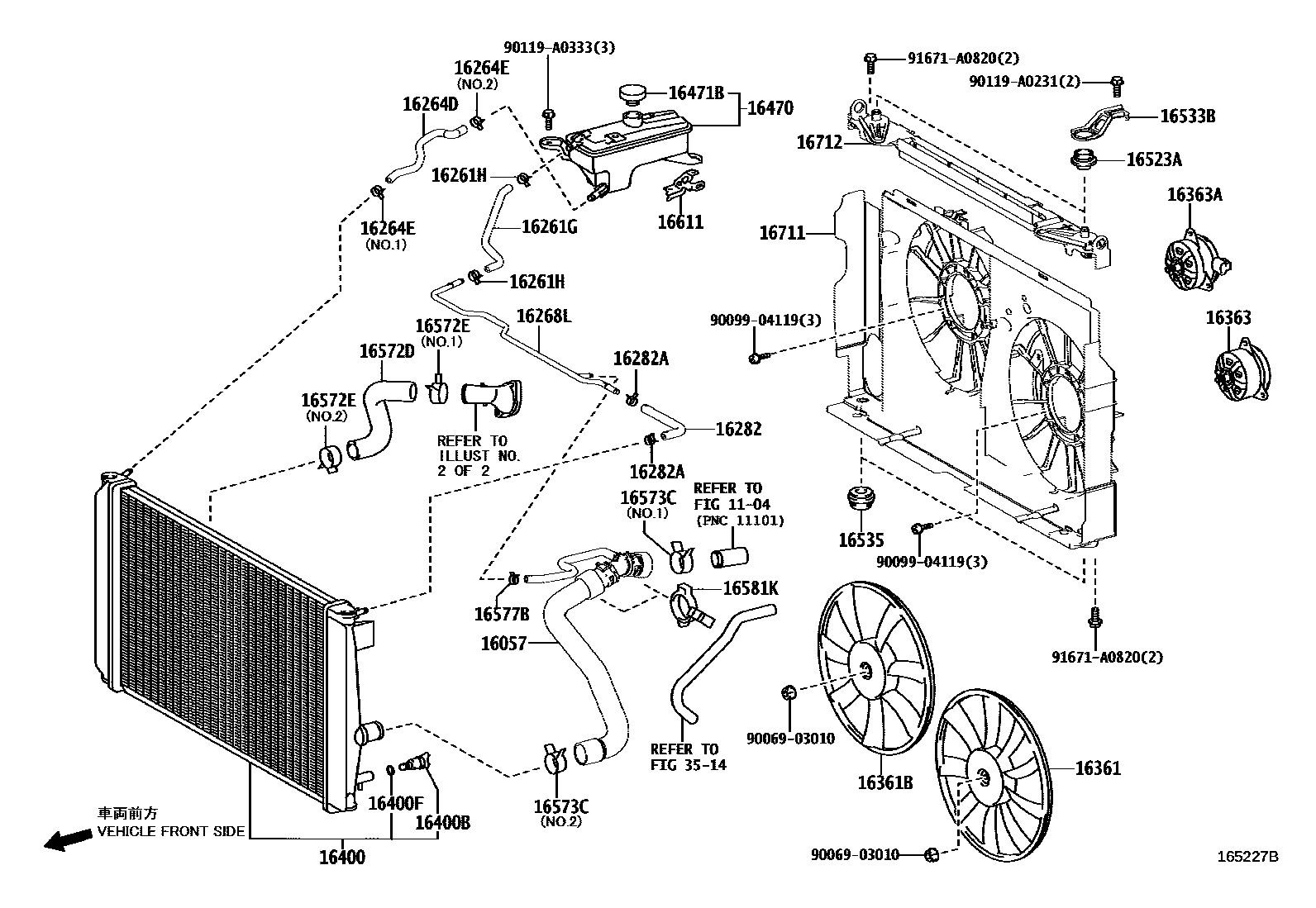

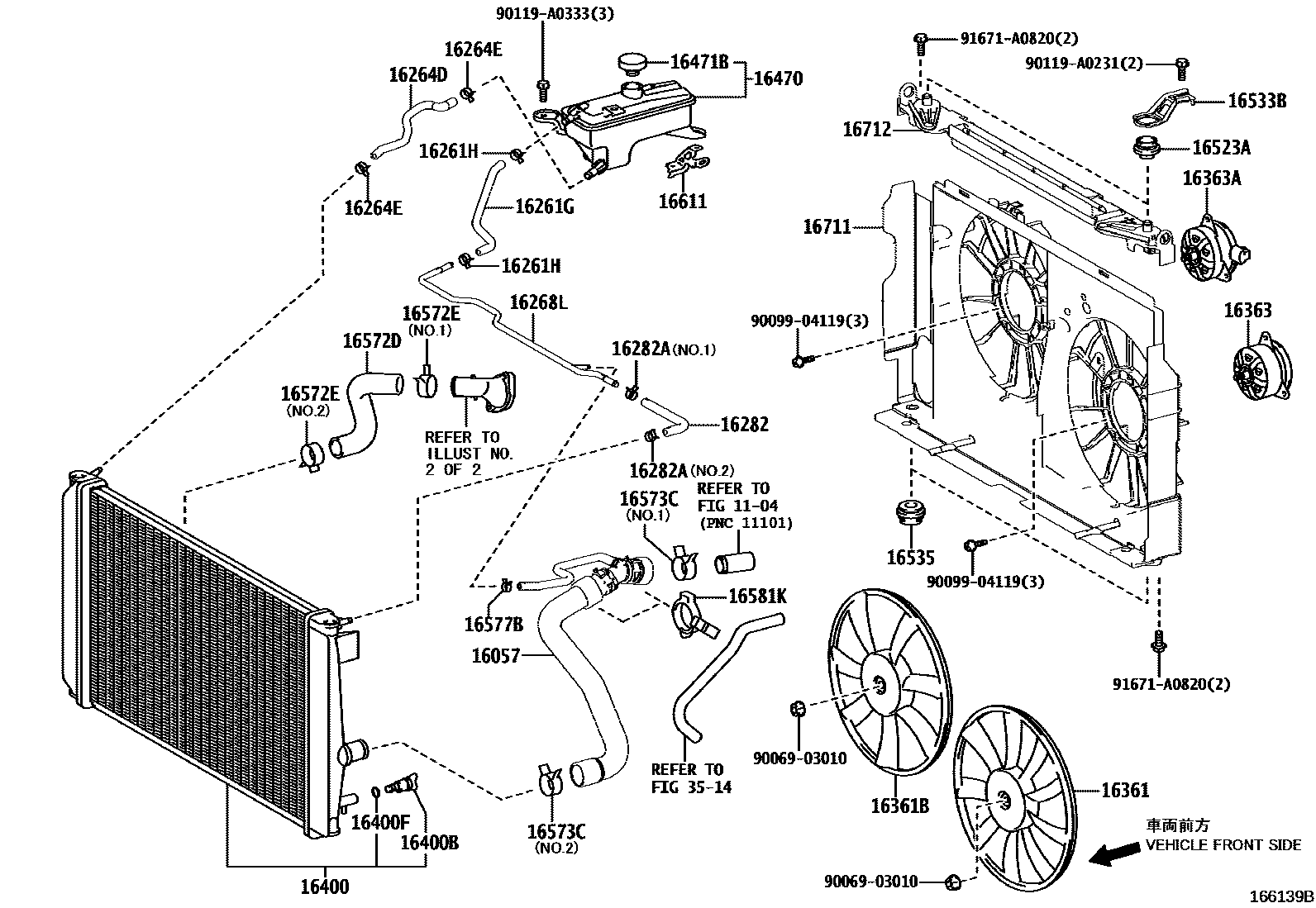

Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16057 | Radiator hose sub-assembly | 16057-0V011 |
| 16258C | Gasket (for water bypass pipe) | 16258-0H010 · 16258-36010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0V020 · 16261-36010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-A0017 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-36050 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90467-15022 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0V020 · 16264-36010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0V060 · 16264-36040 · 16264-36130 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96134-51700 · 96136-41901 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0V080 · 16268-36010 |
| 16268L | PIPE, WATER BY-PASS | 16268-0V100 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-36030 · 16282-36060 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-15022 · 96136-41901 |
| 16321 | water inlet | 16321-0V010 · 16321-36010 |
| 16323 | HOUSING, WATER INLET | 16032-0V011 · 16032-0V050 · 16032-36011 · 16032-36021 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-36010 |
| 16331A | thermostat | 90916-03129 · 90916-A3003 |
| 16361 | Fan | 16361-0V330 |
| 16361B | Fan No. 2 | 16361-0V340 |
| 16363 | cooling fan motor | 16363-36100 |
| 16363A | Cooling fan motor No. 2 | 16363-36110 |
| 16400 | Radiator assembly | 16400-0V030 · 16400-0V031 · 16400-28591 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 · 16417-30170 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 · 16492-21050 |
| 16470 | Radiator reservoir assembly | 16470-0V010 |
| 16471B | Reservoir tank cover | 16475-28140 · 16475-51010 |
| 16523A | Radiator bracket cushion | 16523-28030 |
| 16533B | Radiator bracket No. 1 | 16533-26070 |
| 16535 | Radiator lower support | 16535-0V010 |
| 16572D | Radiator hose No. 2 | 16572-0V180 |
| 16572E | No. 2 radiator hose clip | 90466-A0020 · 90466-A0024 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-A0020 · 90466-A0024 |
| 16577B | Hose clamps or clips (for radiator pipes) | 90467-13128 · 96136-41501 |
| 16581K | No. 1 auxiliary radiator hose clip | 16581-0V020 · 16581-36010 |
| 16611 | Radiator reservoir bracket | 16611-0V010 |
| 16711 | fan cover | 16711-0V210 · 16711-0V211 |
| 16712 | No. 2 fan cover | 16712-0V020 |
