Toyota RAV4 Engine Mounting — Figure 1107

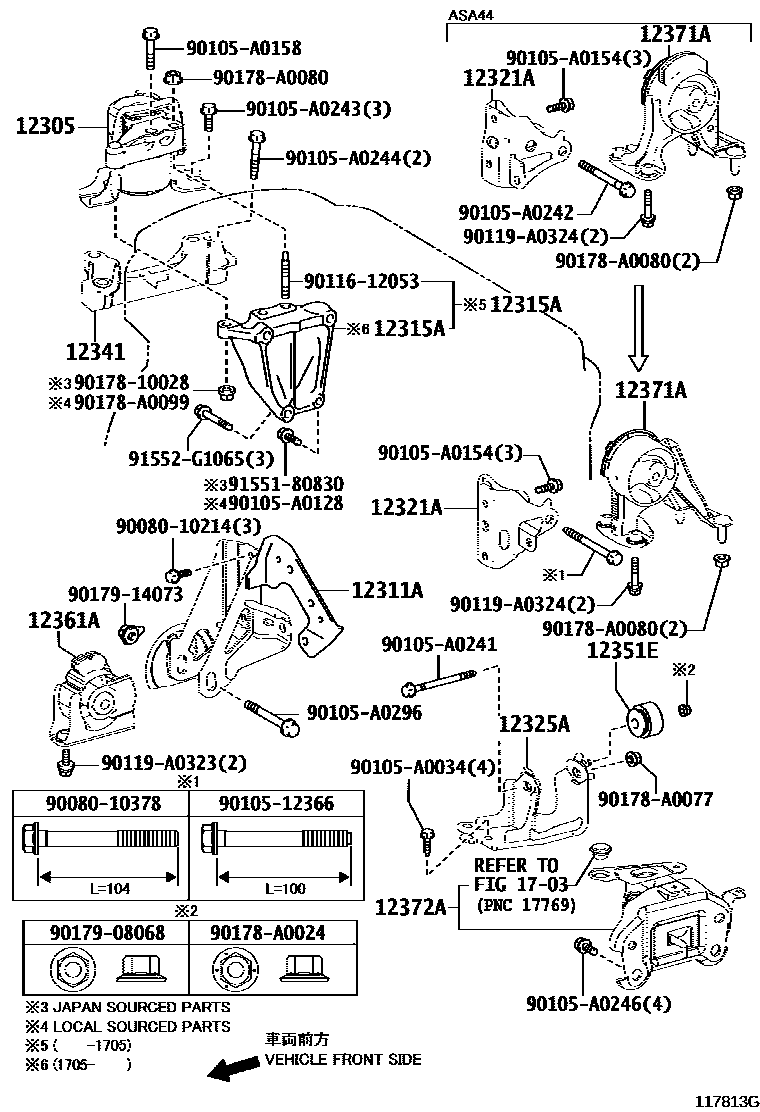

Toyota RAV4 EPC diagram 1107, Engine Mounting, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0V030 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0V030 · 12311-0V031 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0V010 · 12315-0V011 · 12315-36010 · 12315-36011 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0V010 · 12321-0V020 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0V010 · 12325-0V011 |
| 12341 | engine mounting spacer | 12341-0V010 |
| 12351E | AMORTISSEUR, BATI-MOTEUR | 12351-33020 · 12351-37020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0V140 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0V030 · 12371-0V040 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0V070 |
