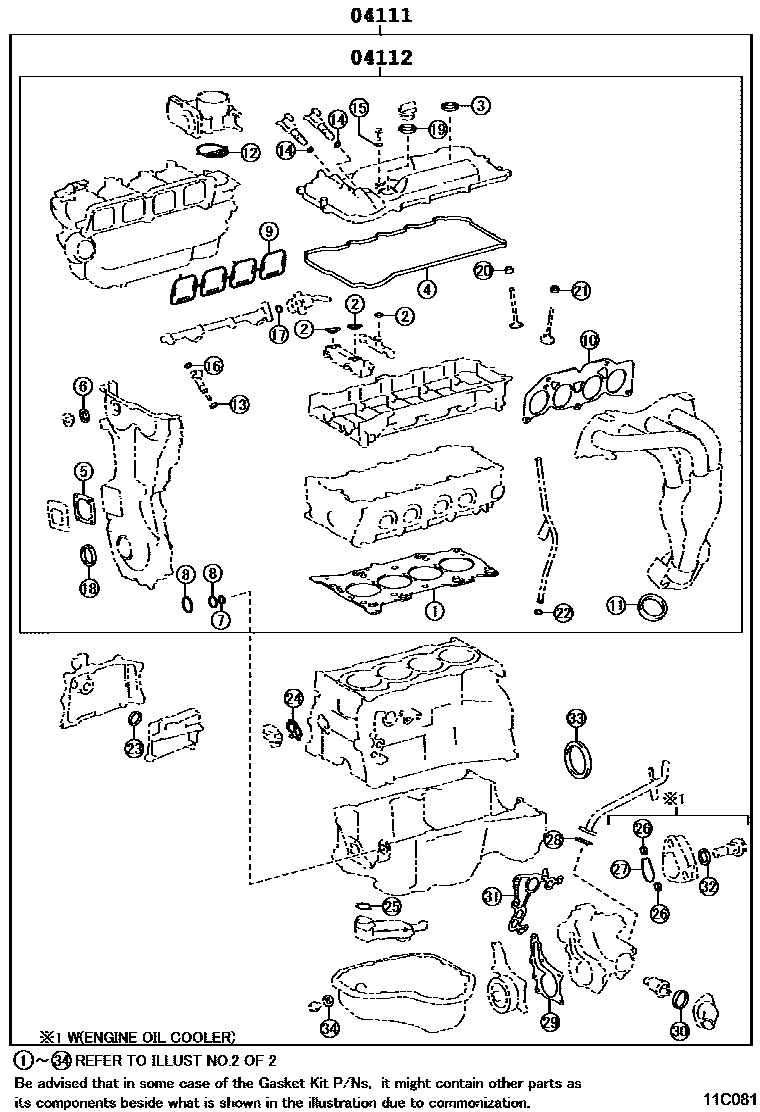

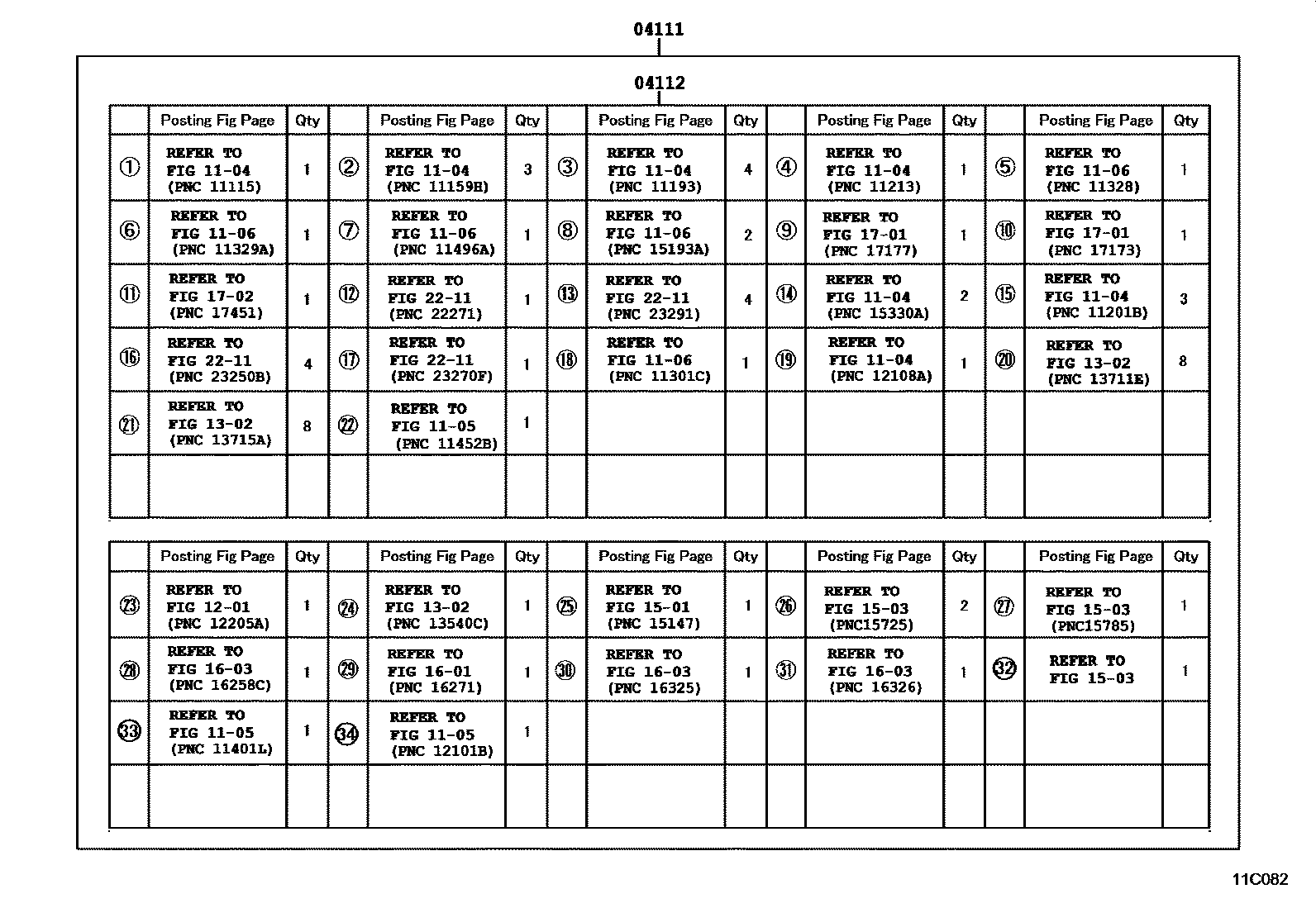

Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103
Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-0V021 · 04111-0V150 · 04111-36062 · 04111-36063 · 04111-36064 · 04111-36065 · 04111-36066 · 04111-36067 |
| 04112 | Engine valve grinding pad assembly | 04112-0V021 · 04112-0V140 · 04112-36051 · 04112-36052 · 04112-36053 · 04112-36054 · 04112-36055 |
