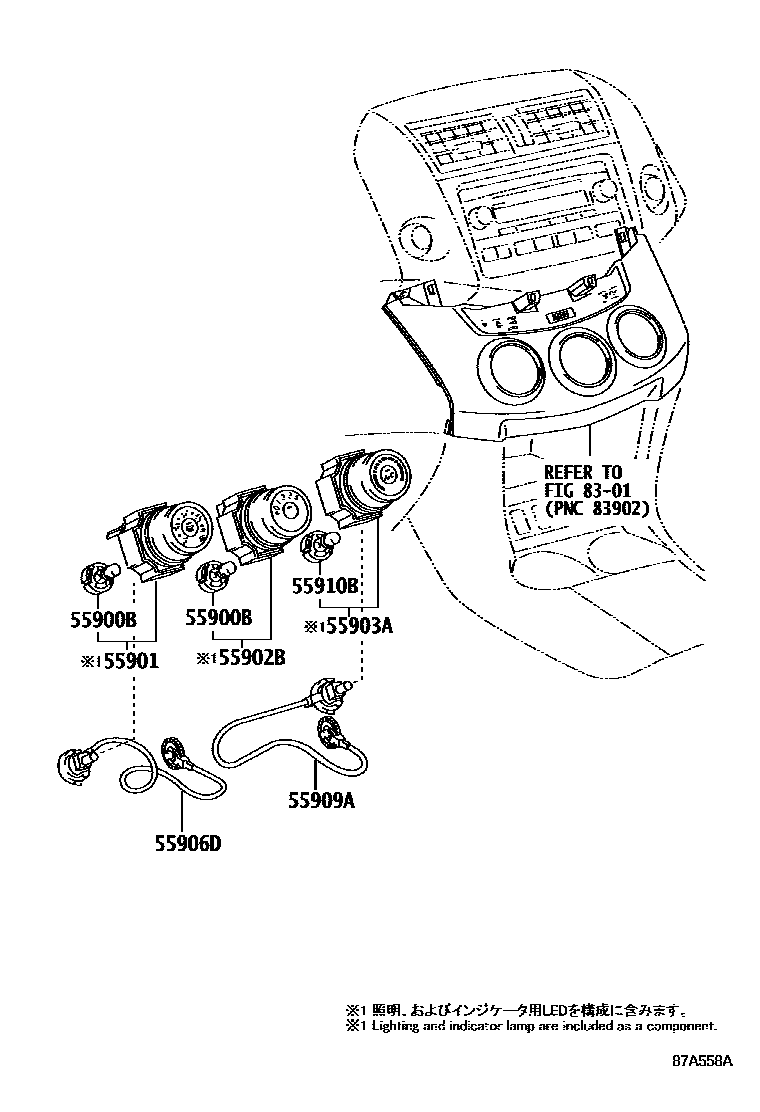

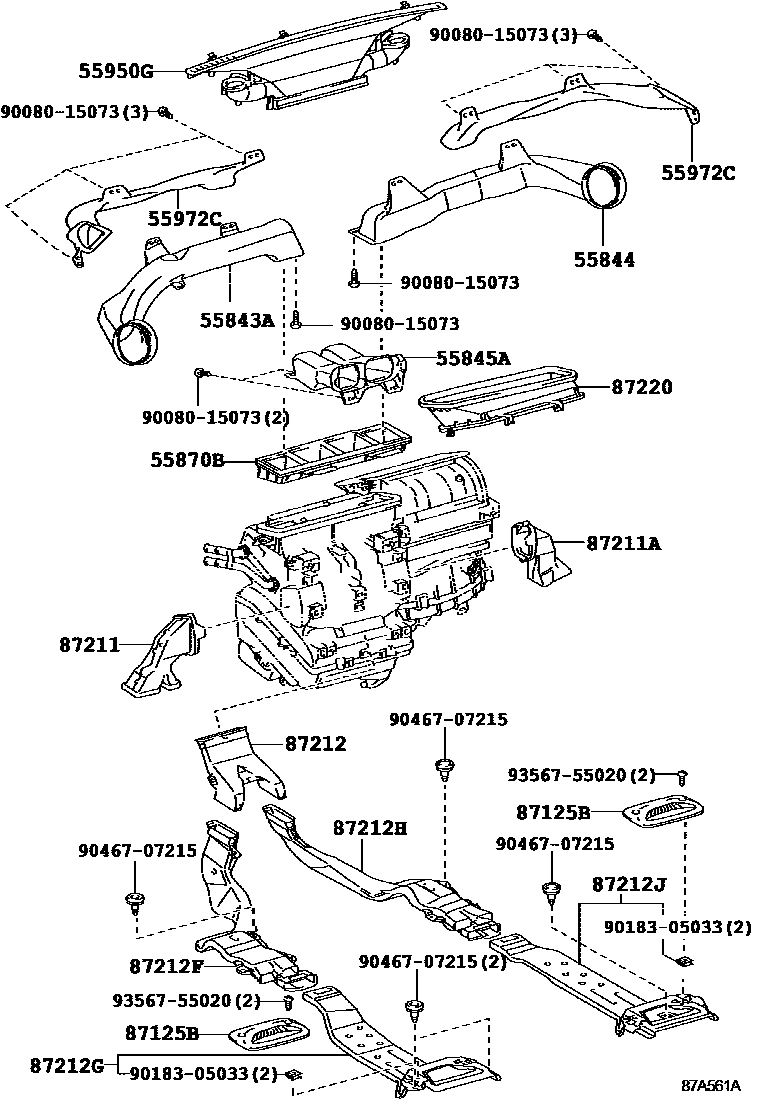

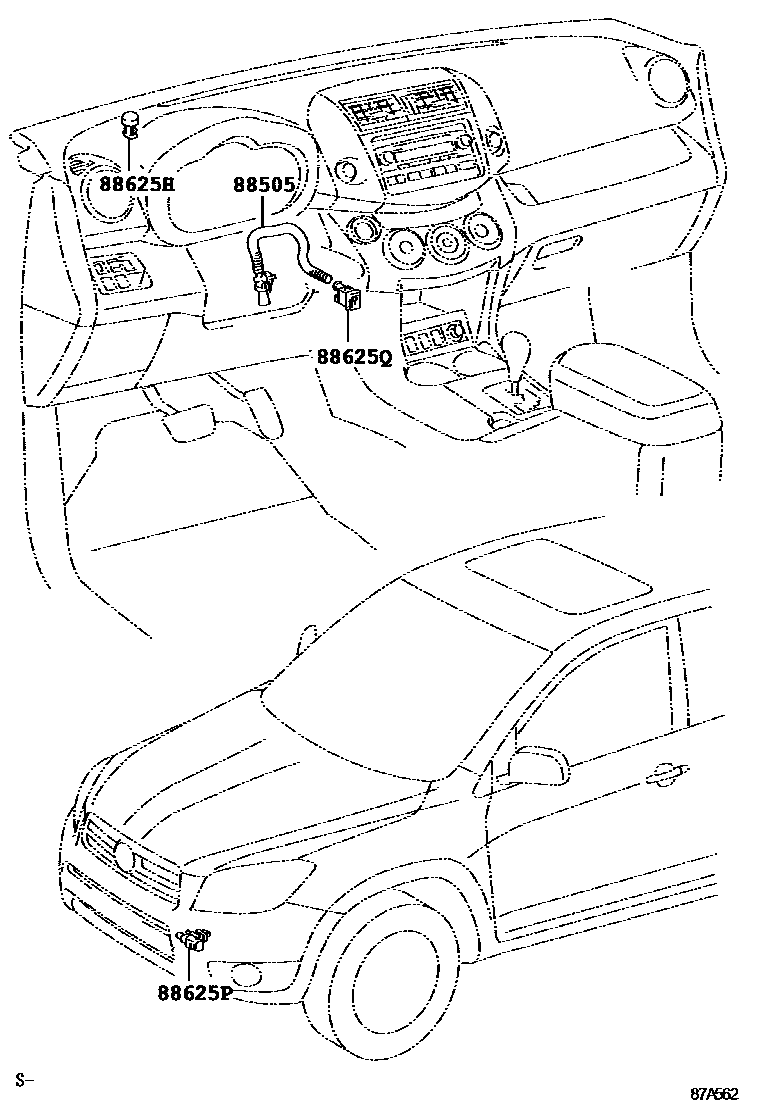

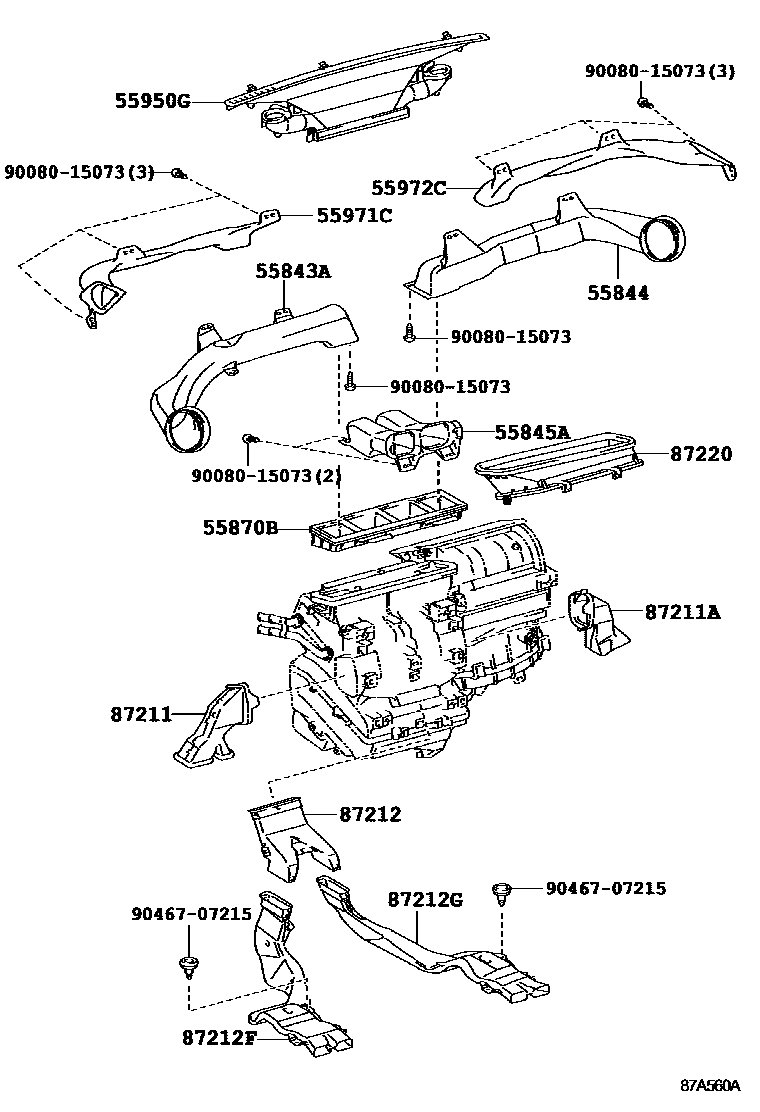

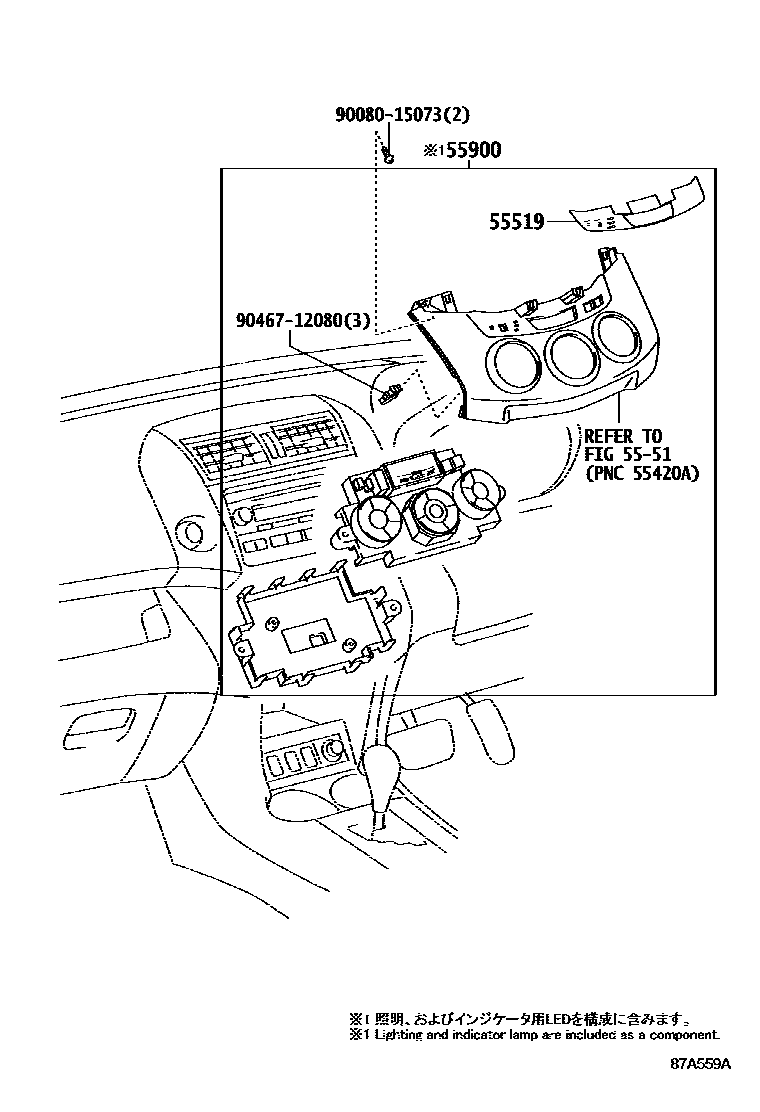

Toyota RAV4 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota RAV4 EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-0R010 |
| 55843A | Air duct No. 1 from heater to air register | 55843-0R010 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-0R010 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-0R010 |
| 55870B | Heater to air regulator air duct assembly | 55870-0R010 |
| 55900B | air conditioning control light bulb | 90010-01122 |
| 55901 | Heater controller base sub-assembly | 55901-0R010 |
| 55902B | Heater control sub-assembly | 55902-0R010 |
| 55903A | No. 3 heater control sub-assembly | 55903-0R010 · 55903-0R030 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-0K010 · 55906-26060 |
| 55909A | Air mix damper control cable sub-assembly | 55909-0K010 · 55909-26080 |
| 55910B | heater control light bulb | 90010-01122 |
| 55950G | Defroster nozzle assembly | 55950-0R010 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-0R010 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-0R010 |
| 87211 | No. 1 air duct | 87211-0R010 |
| 87211A | Duct No. 2 | 87211-0R020 |
| 87212 | No. 1 rear air duct | 87215-0R010 |
| 87212F | No. 2 rear air duct | 87203-0R010 · 87213-0R010 |
| 87212G | No. 3 rear air duct | 87212-0R010 · 87218-0R010 |
| 87212H | No. 4 rear air duct | 87202-0R010 |
| 87212J | No. 5 rear air duct | 87217-0R010 |
| 87220 | Air duct assembly | 87220-0R010 |
| 88505 | Air conditioning duct sub-assembly | 88505-0R010 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-51010 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
