Toyota RAV4 后视镜 — Figure 8701

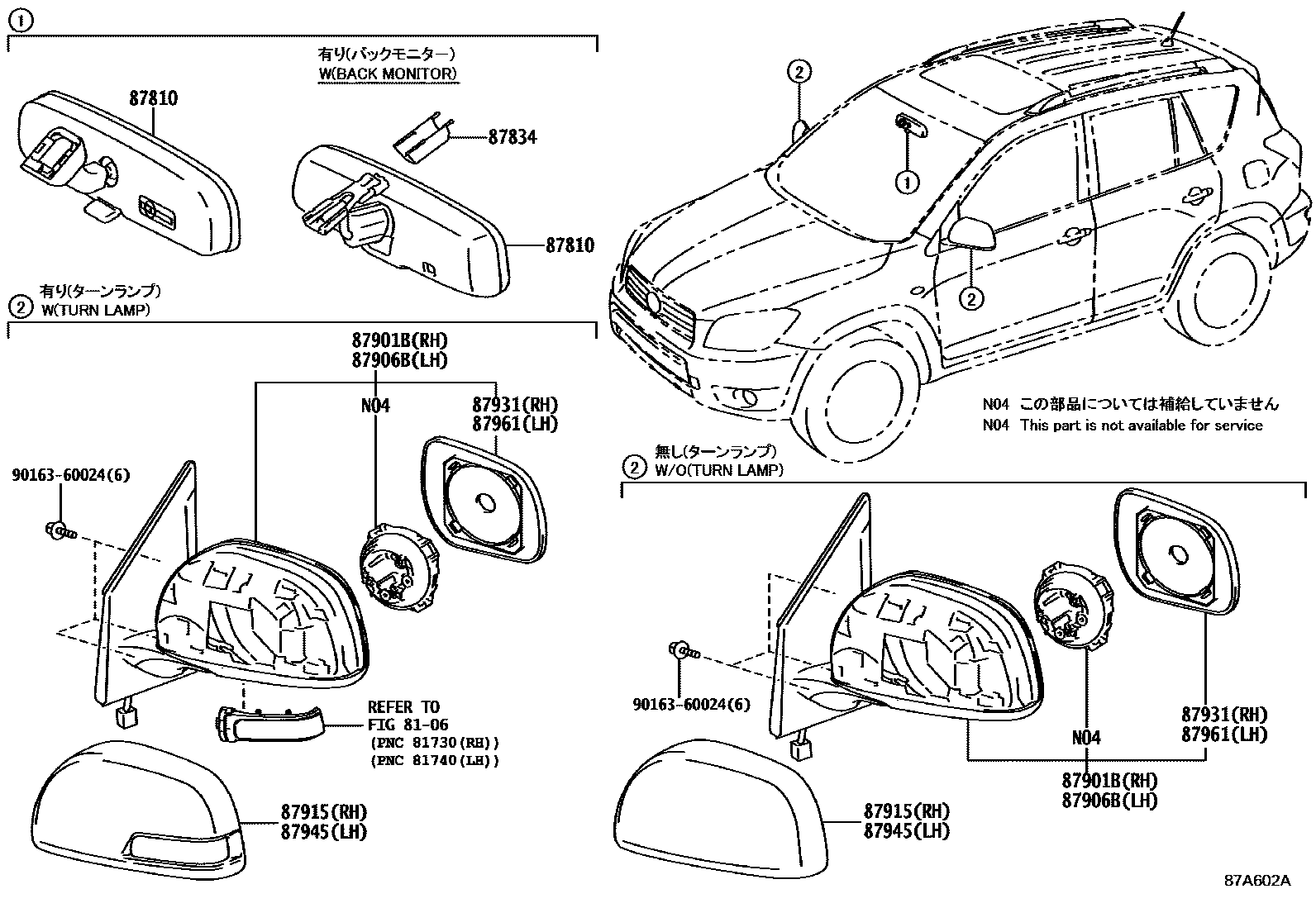

Toyota RAV4 EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-04030 · 87810-06080 · 87810-0W700 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-04010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87908-0R010 · 87908-0R020 |
| 87906B | Left exterior rearview mirror sub-assembly | 87909-0R010 · 87909-0R020 |
| 87915 | Right exterior rearview mirror cover | 87915-0R010 |
| 87931 | Right exterior rearview mirror | 87931-0R010 · 87931-0R020 |
| 87945 | Left exterior rearview mirror cap | 87945-0R010 |
| 87961 | Left exterior rearview mirror | 87961-0R010 · 87961-0R020 |
