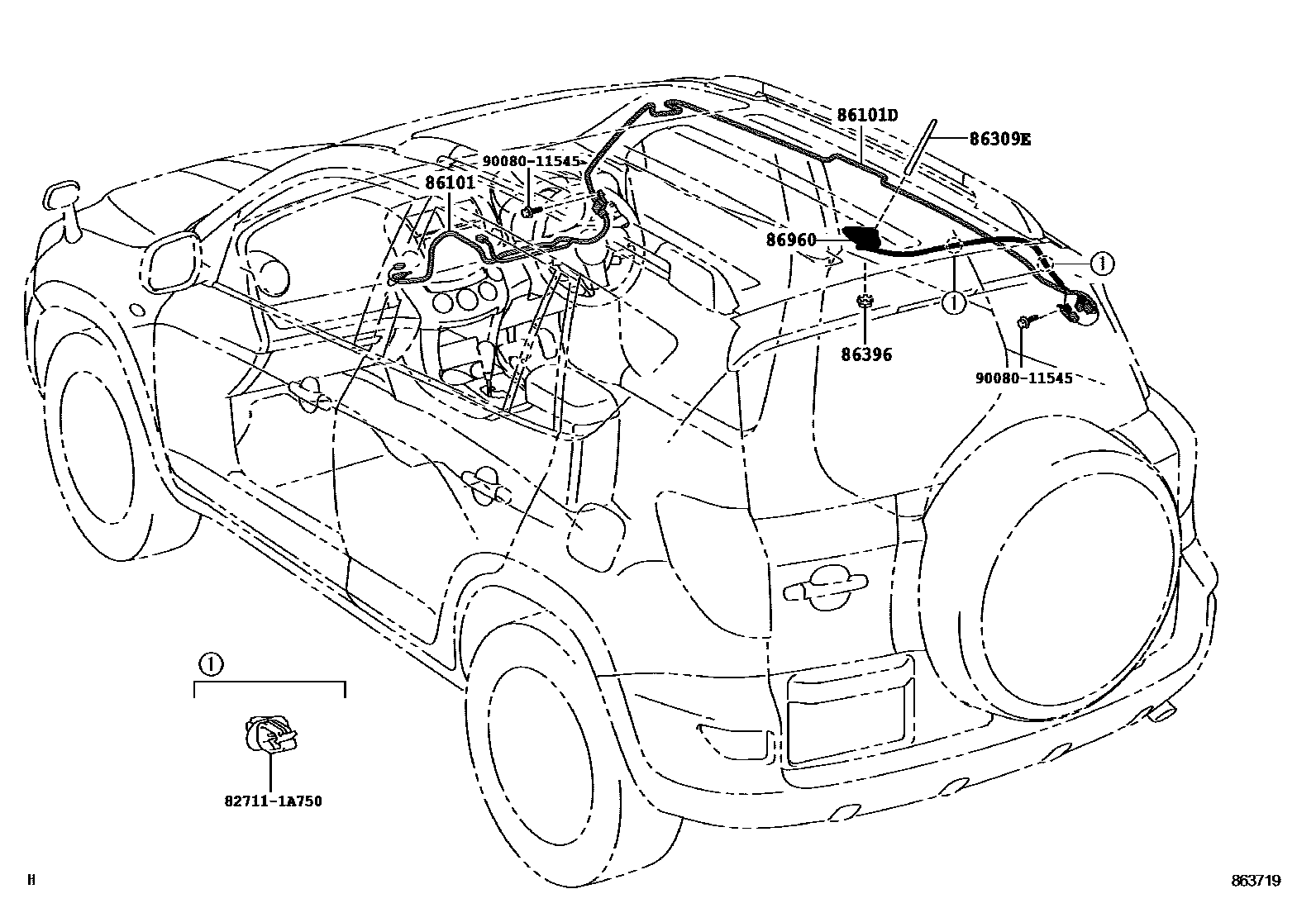

Toyota RAV4 antenna — Figure 8604
Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0R140 · 86101-0R141 · 86101-0R160 · 86101-0R161 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-0R130 · 86101-0R131 · 86101-0R150 · 86101-0R151 |
| 86309E | Roof antenna sub-assembly | 86309-02090 |
| 86396 | Antenna nut | 86396-30050 · 86396-47010 |
| 86960 | Satellite radio antenna assembly | 86300-0R030 · 86960-0R020 |
