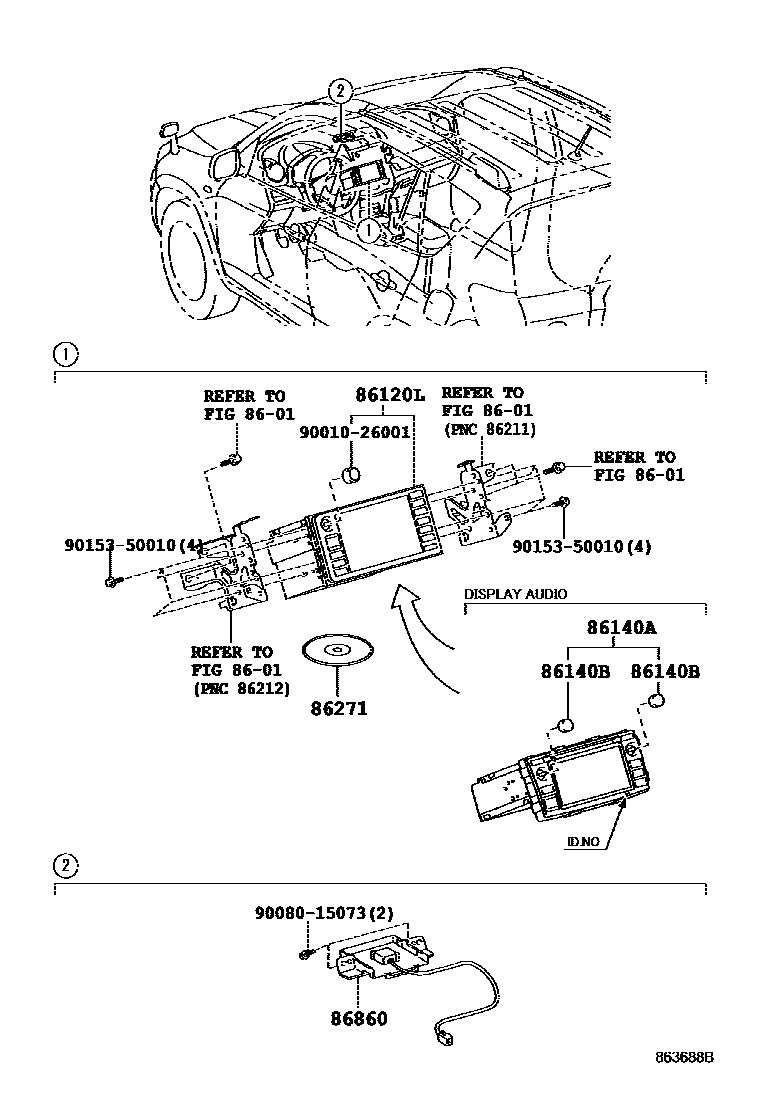

Toyota RAV4 导航和前监视器显示屏 — Figure 8603
Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-02E40 · 86120-12C00 |
| 86140A | Radio and display receiver assembly | 86140-0R060 · 86140-0R070 |
| 86140B | Radio and display receiver switch button | 90011-25254 |
| 86271 | CD | 86271-12081 · 86271-12082 · 86271-12083 · 86271-12084 |
| 86860 | Navigation antenna assembly | 86860-42030 |
