Toyota RAV4 扬声器 — Figure 8602

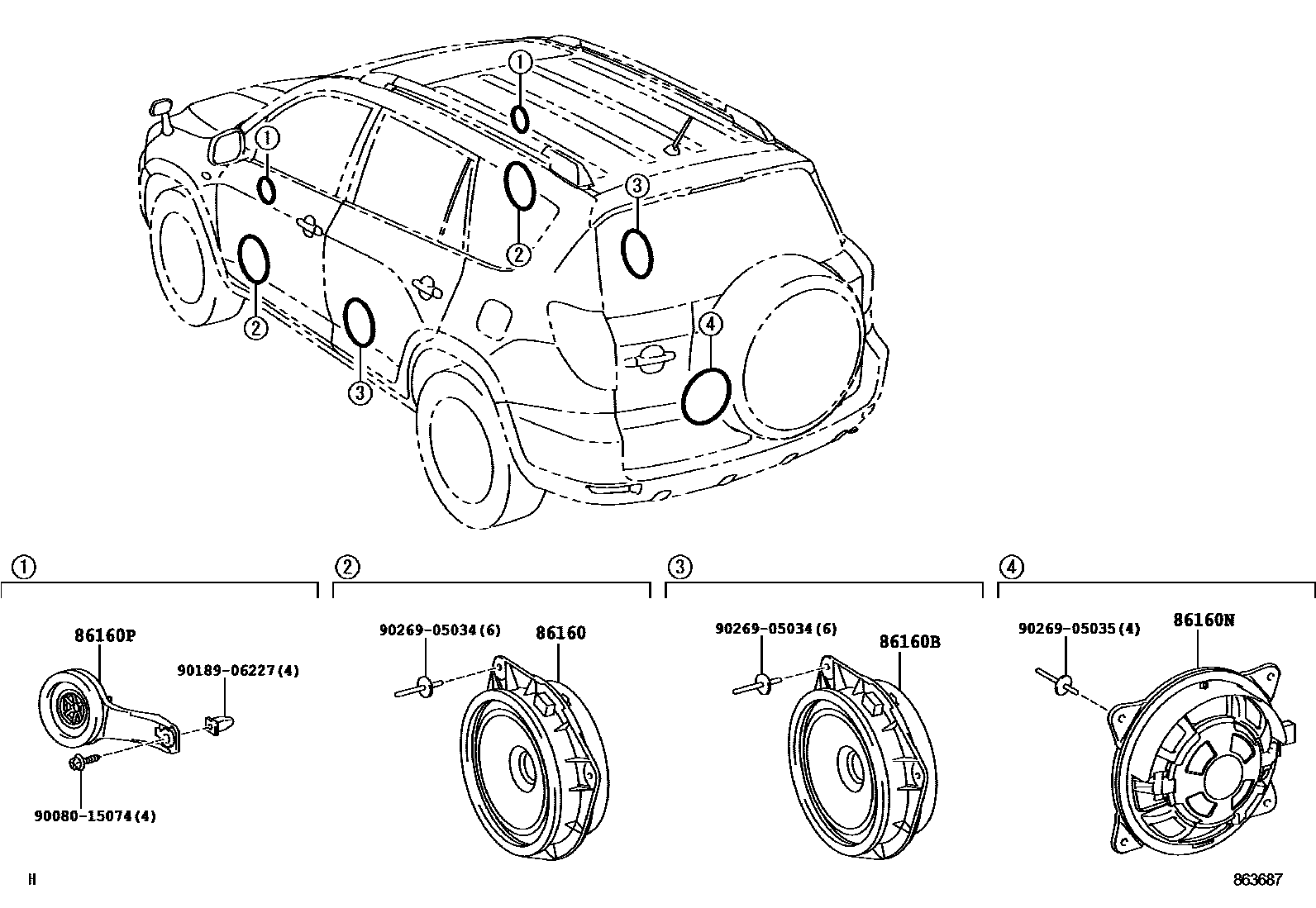

Toyota RAV4 EPC diagram 8602, 扬声器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-0R090 · 86160-AC280 · 86160-AC290 |
| 86160B | Rear speaker assembly | 86160-0R090 · 86160-0WF10 · 86160-AC290 |
| 86160N | Rear stereo component speaker assembly | 86160-0WF40 |
| 86160P | No. 2 front speaker assembly | 86160-0R020 · 86160-0R030 · 86160-0WF20 · 86160-0WF30 |
