Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

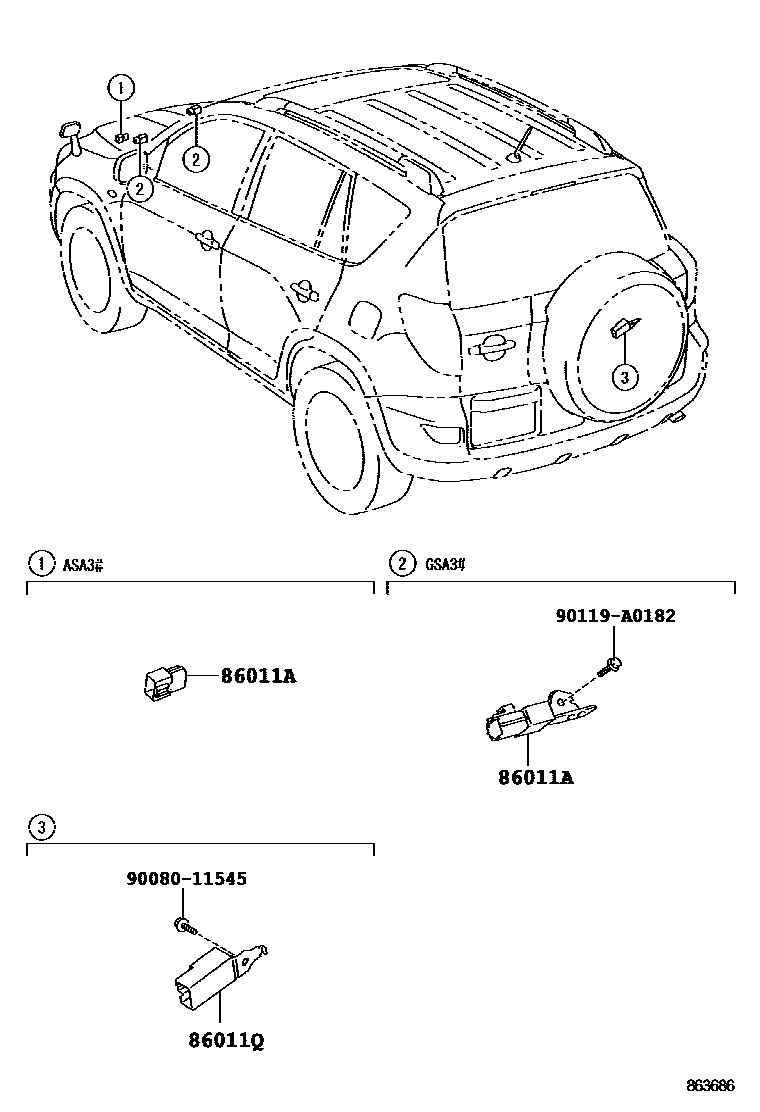

| 86011A | radio settings phase modulator | 90980-04083 · 90980-04191 |
| 86011Q | radio settings phase modulator | 90980-04197 |

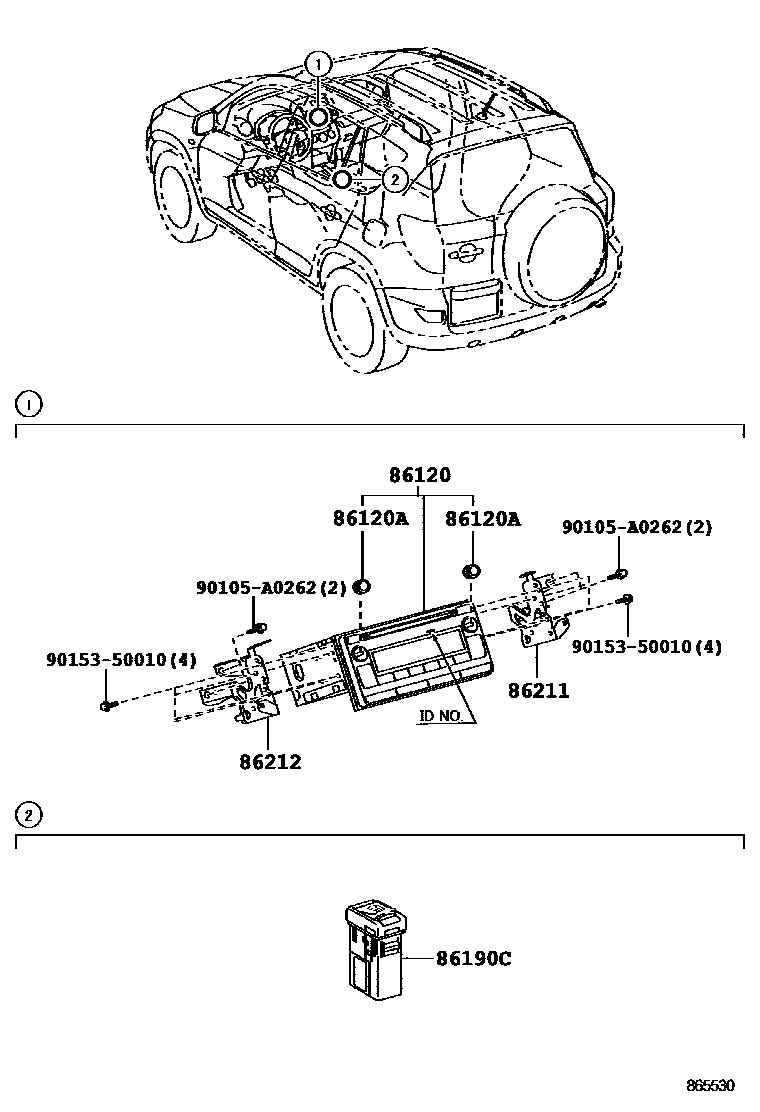

| 86120 | Radio assembly | 86120-0R070 · 86120-0R071 · 86120-0R080 · 86120-0R090 · 86120-0R100 · 86120-0R110 · 86120-0R130 |
| 86120A | Radio switch knob | 90010-24149 · 90011-23014 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-02010 · 86190-0C020 |
| 86211 | No. 1 radio bracket | 86211-0R010 · 86211-0R040 · 86211-0R060 |
| 86212 | No. 2 radio bracket | 86212-0R010 · 86212-0R040 · 86212-0R060 |

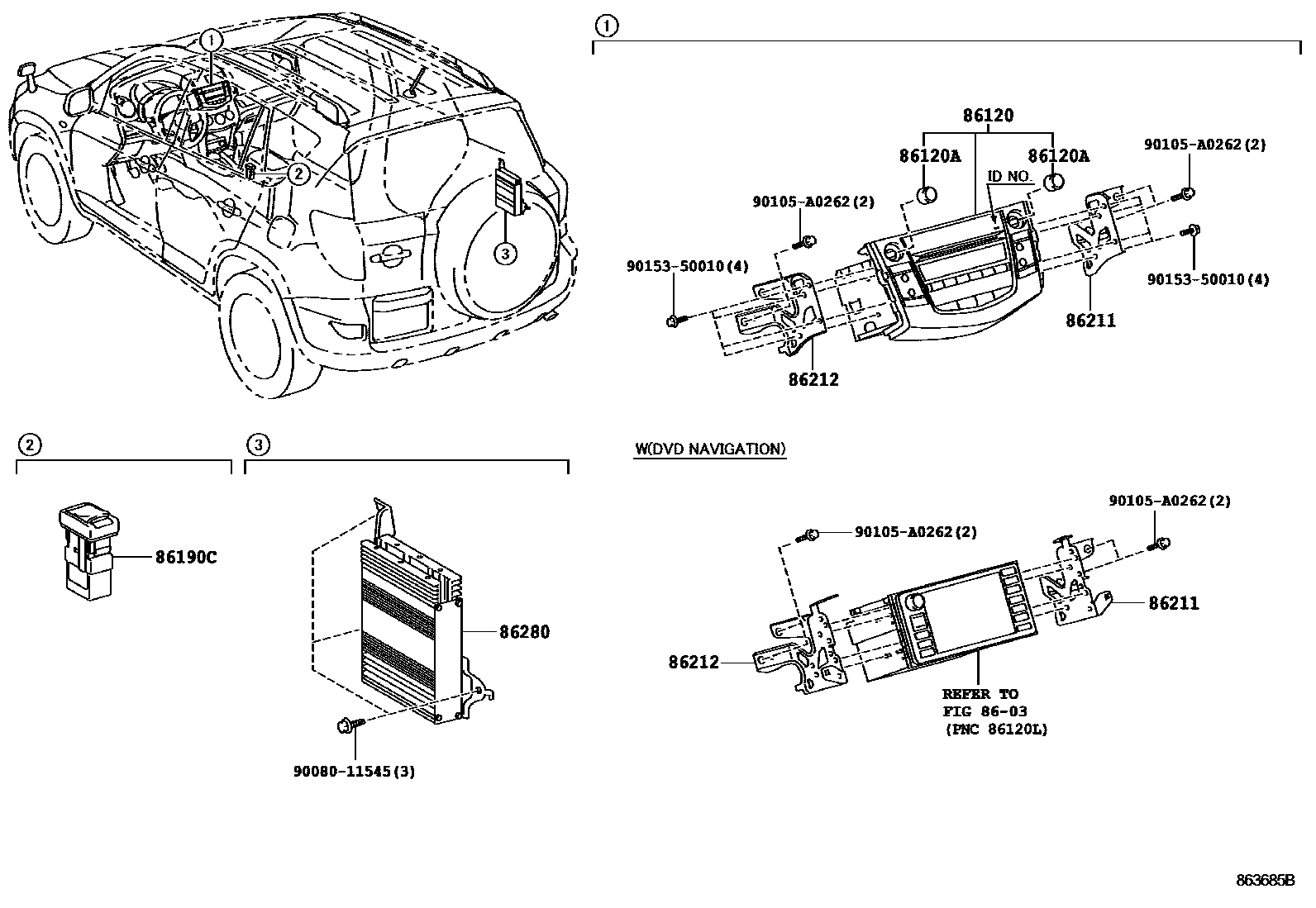

| 86280 | Stereo parts amplifier assembly | 86280-0W400 |
