Toyota RAV4 ABS 和 VSC — Figure 8414

Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 2 images and 9 PNC and OE references.

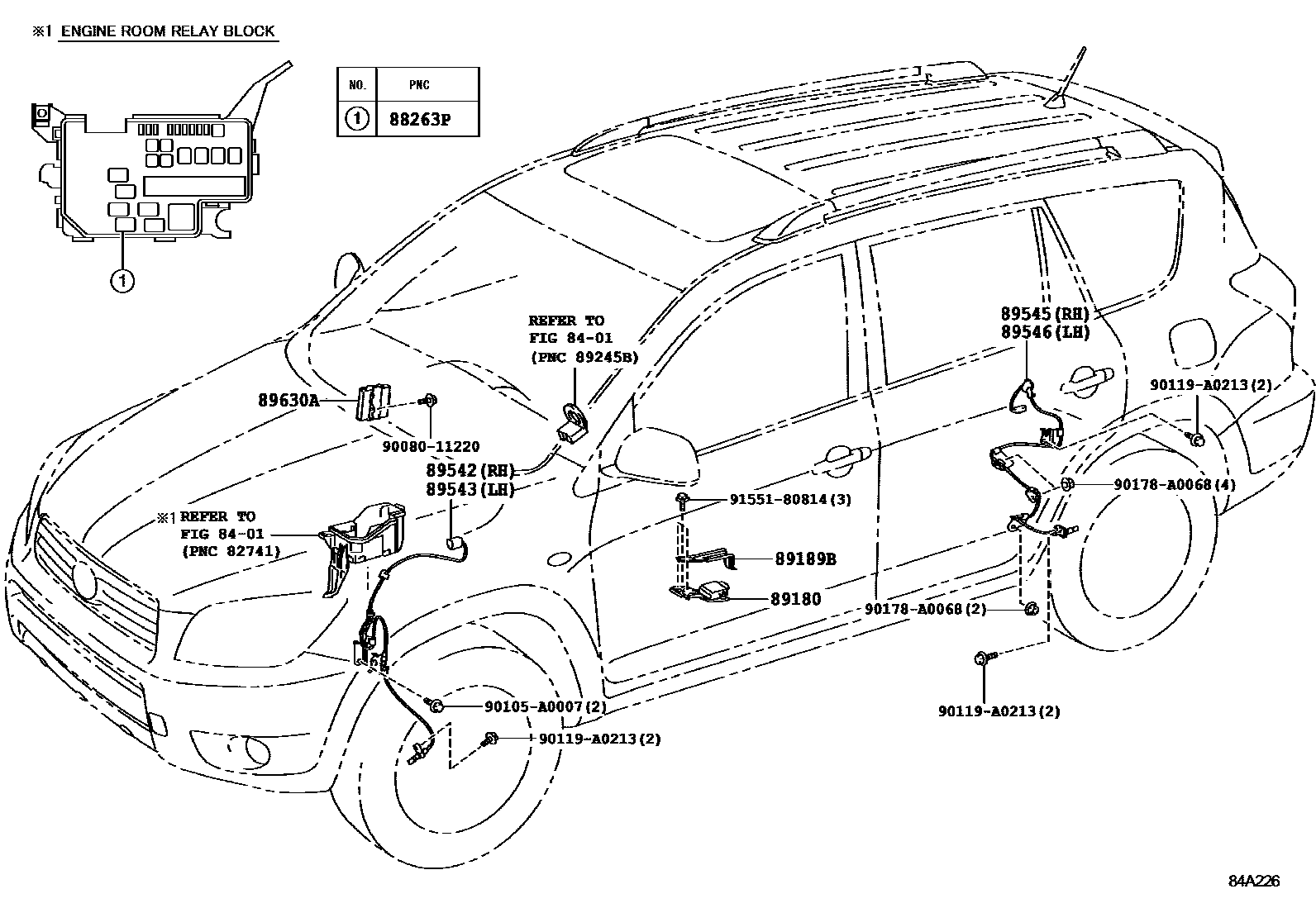

Toyota RAV4 ABS 和 VSC EPC diagram — 84A226
ABS 和 VSC — 84A226 (200811 – 999999)

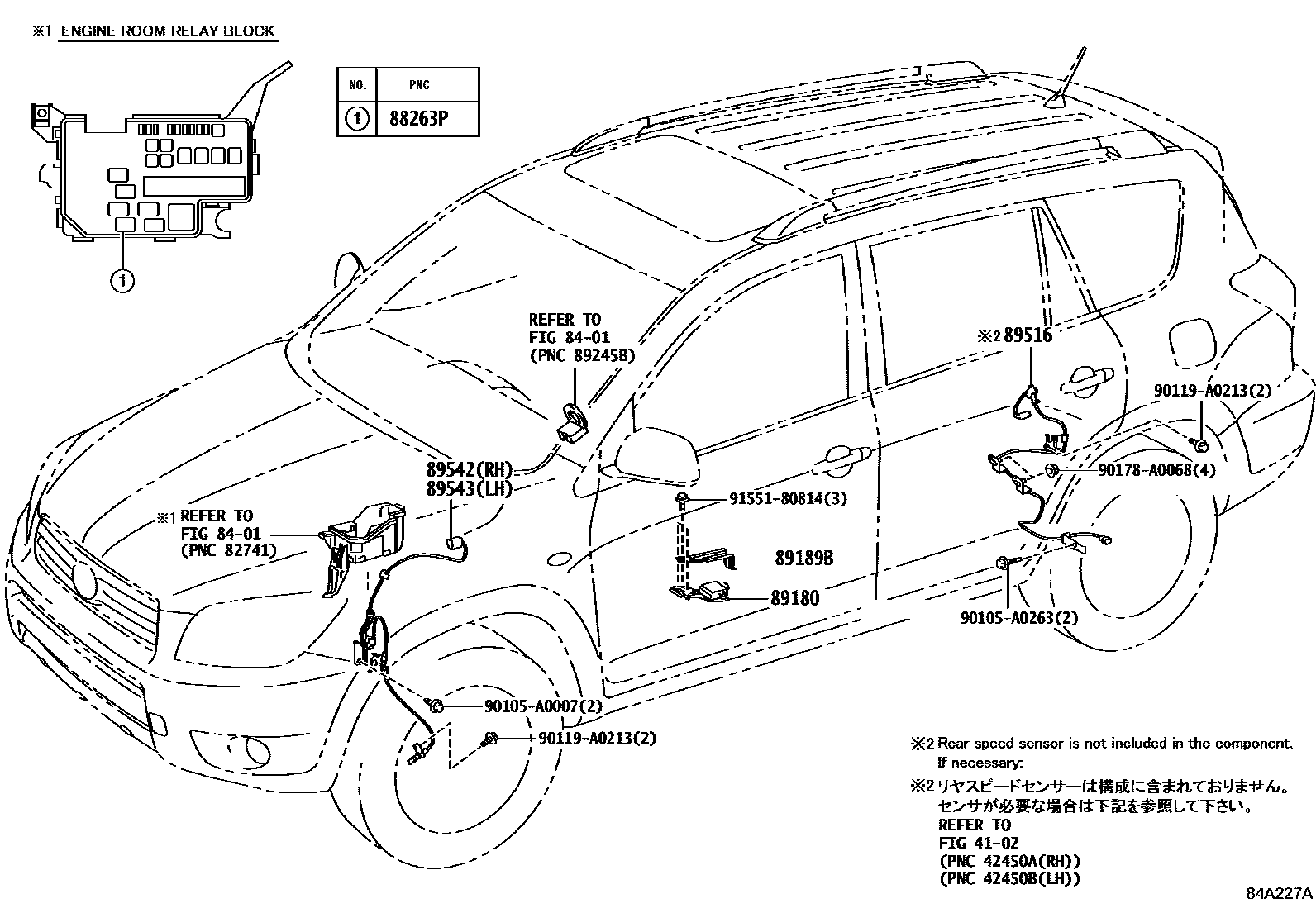

Toyota RAV4 ABS 和 VSC EPC diagram — 84A227A
ABS 和 VSC — 84A227A (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
88263Pbrake light control relay90084-98032 · 90987-04004
89180Yaw rate sensor assembly89180-42030 · 89180-42040
89189BYaw rate sensor bracket89189-0R010
89516Anti-skid control sensor wiring harness89516-0R010 · 89516-0R020
89542Right front wheel speed sensor89542-0R010
89543Left front wheel speed sensor89543-0R010
89545Right rear wheel speed sensor89545-42040
89546Left rear wheel speed sensor89546-42040
89630AFour-wheel drive ECU assembly89630-42040
