Toyota RAV4 开关和继电器和ECU — Figure 8401

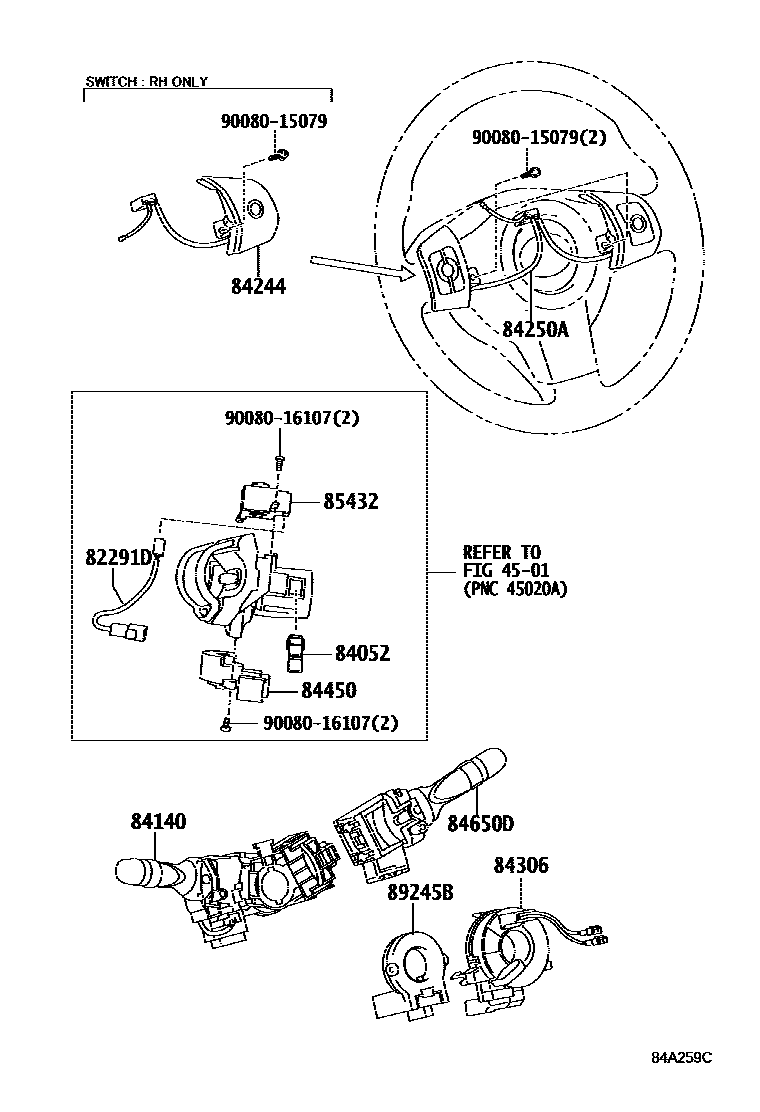

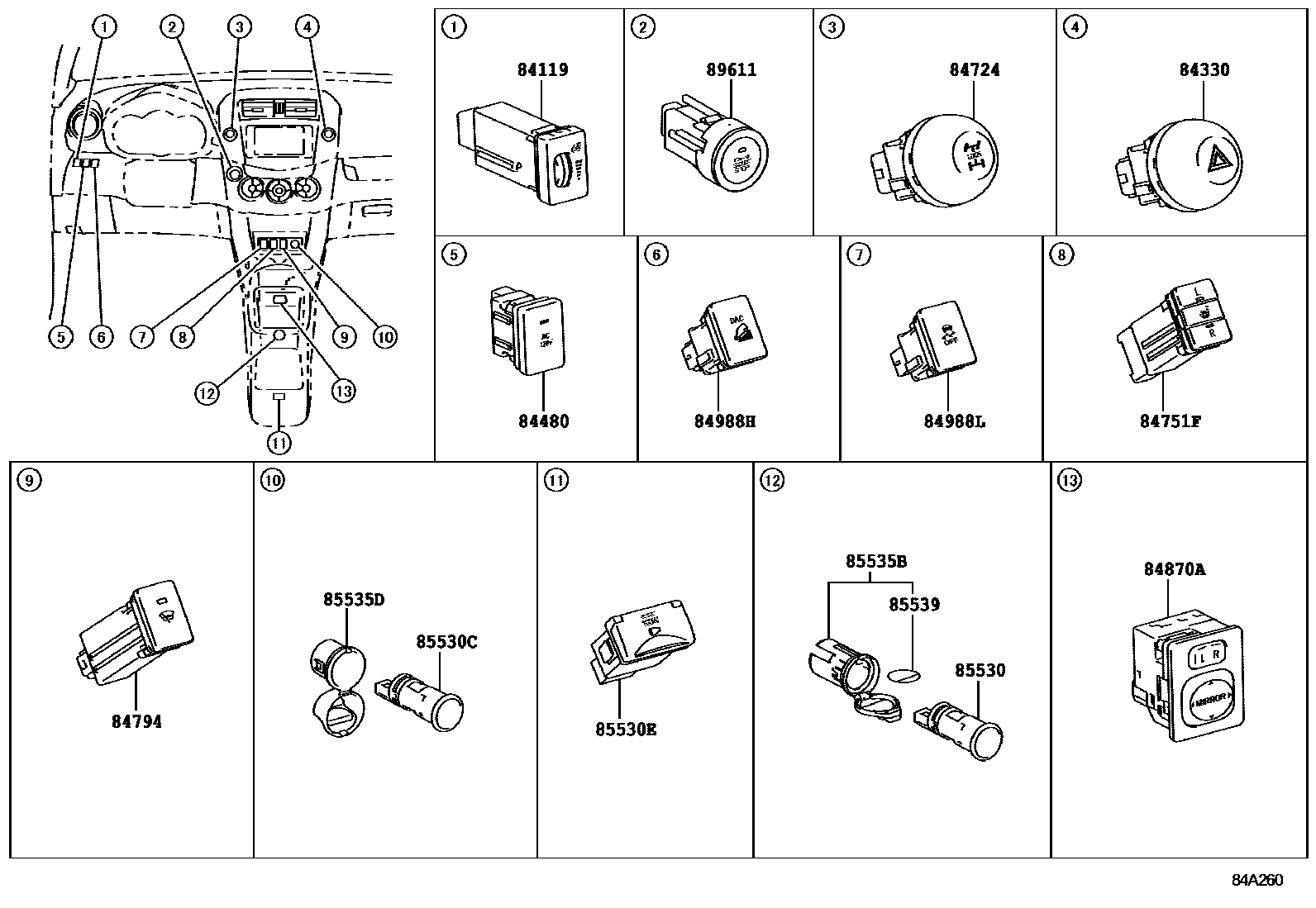

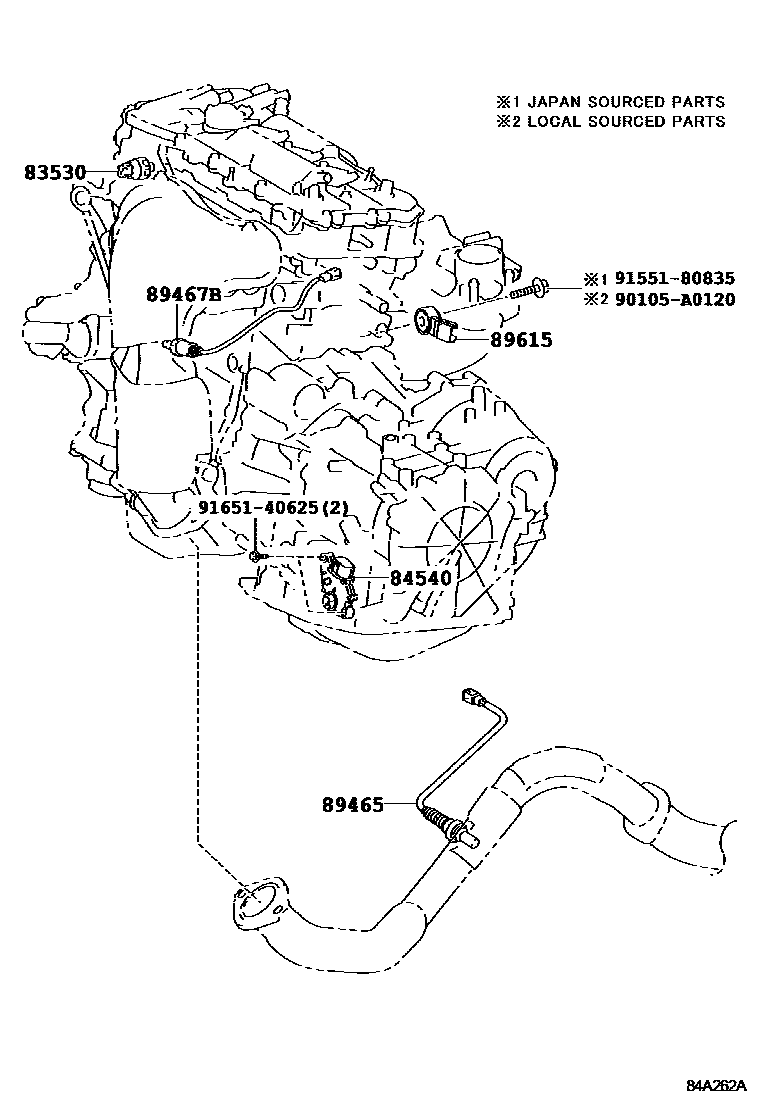

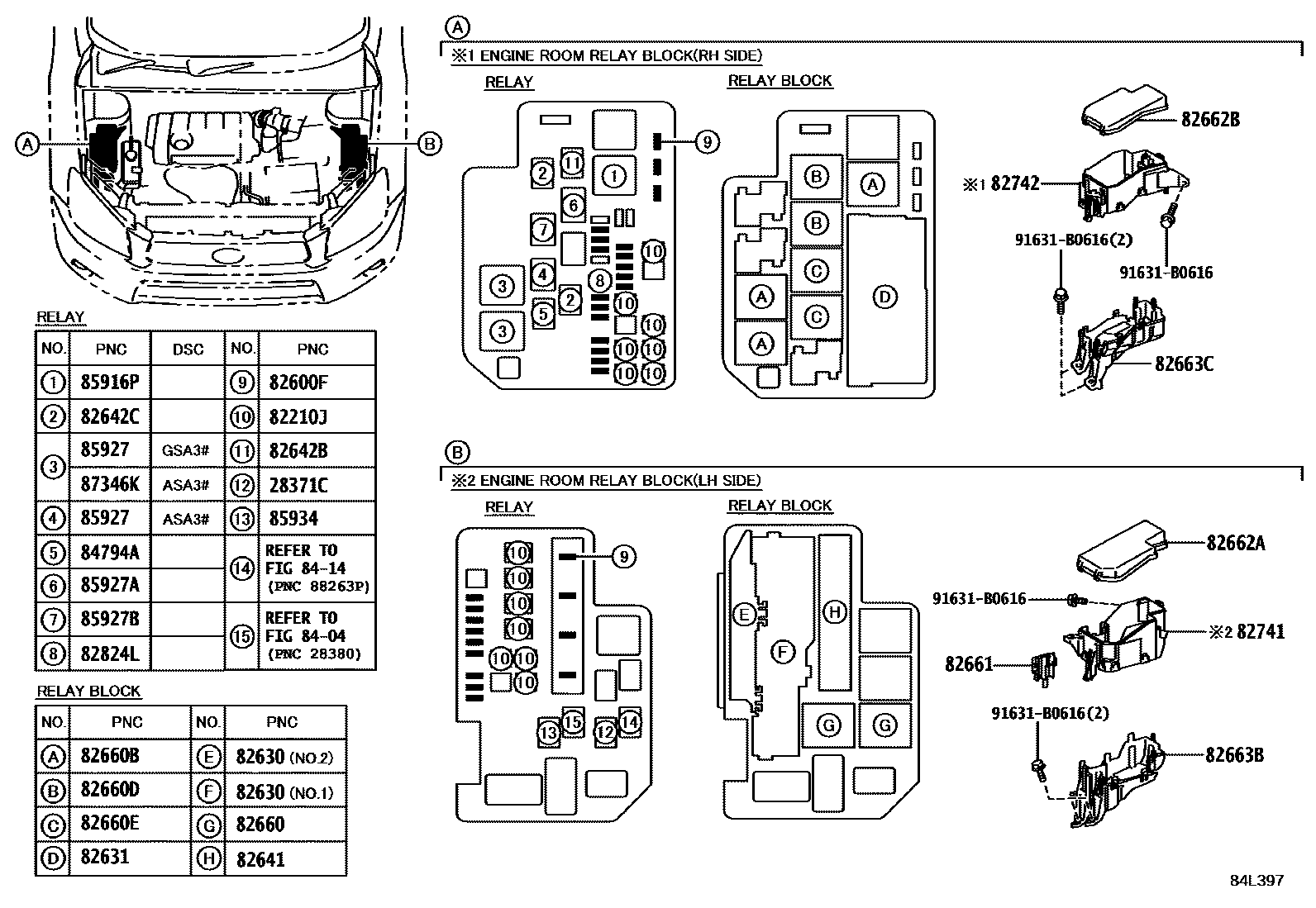

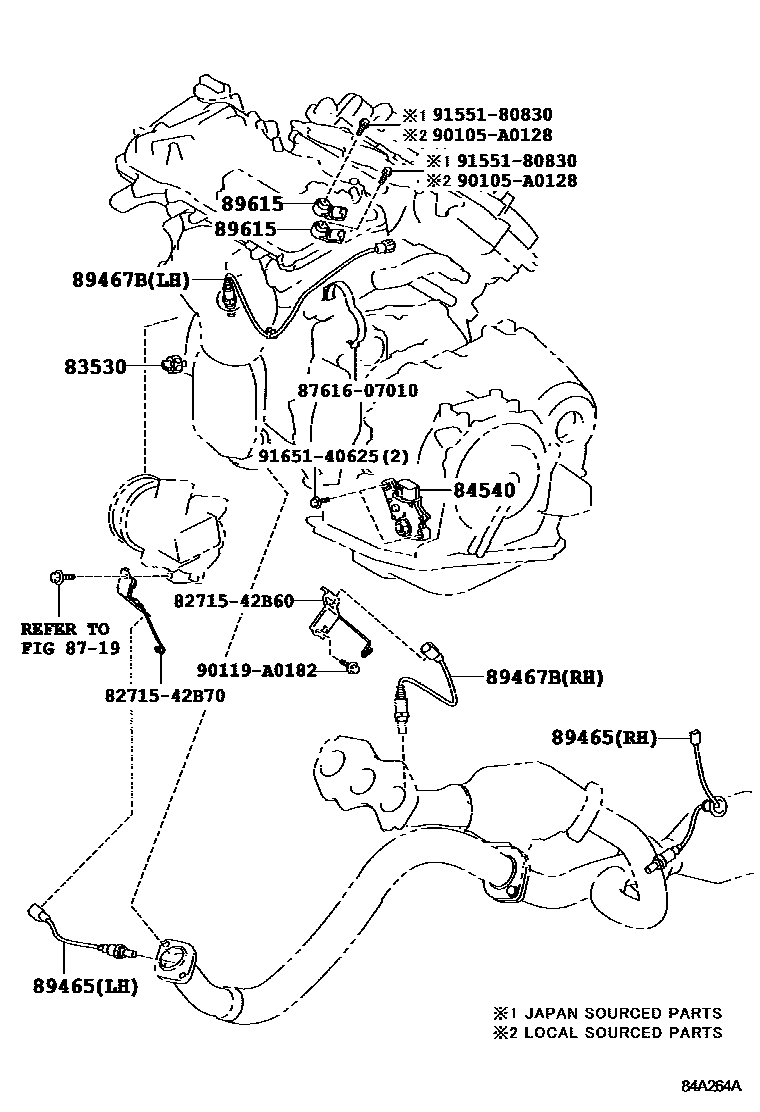

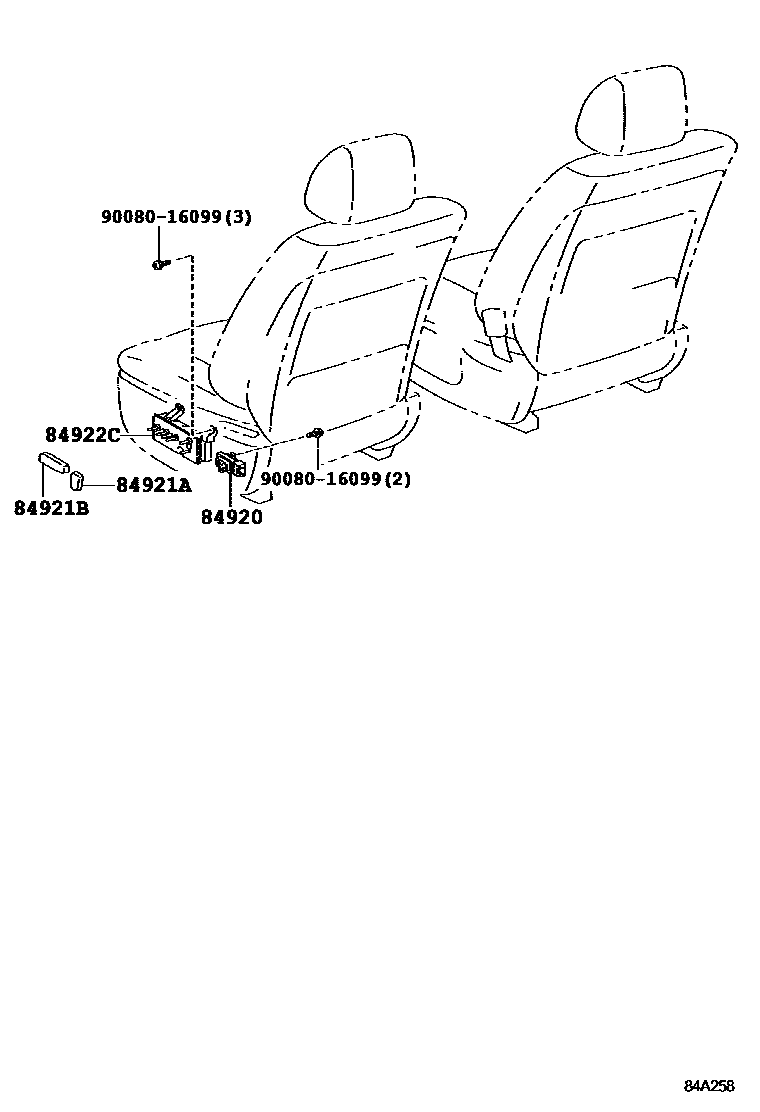

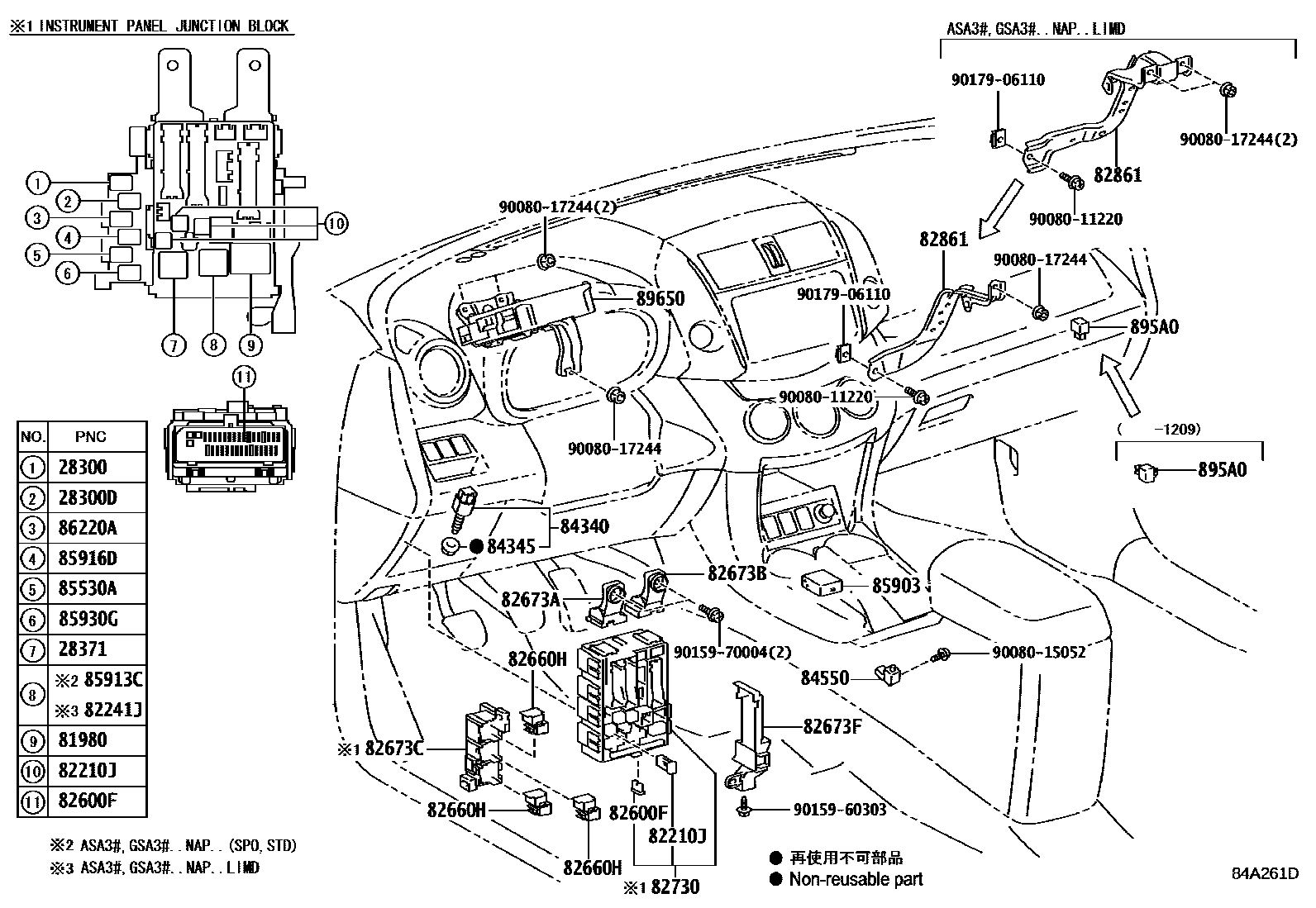

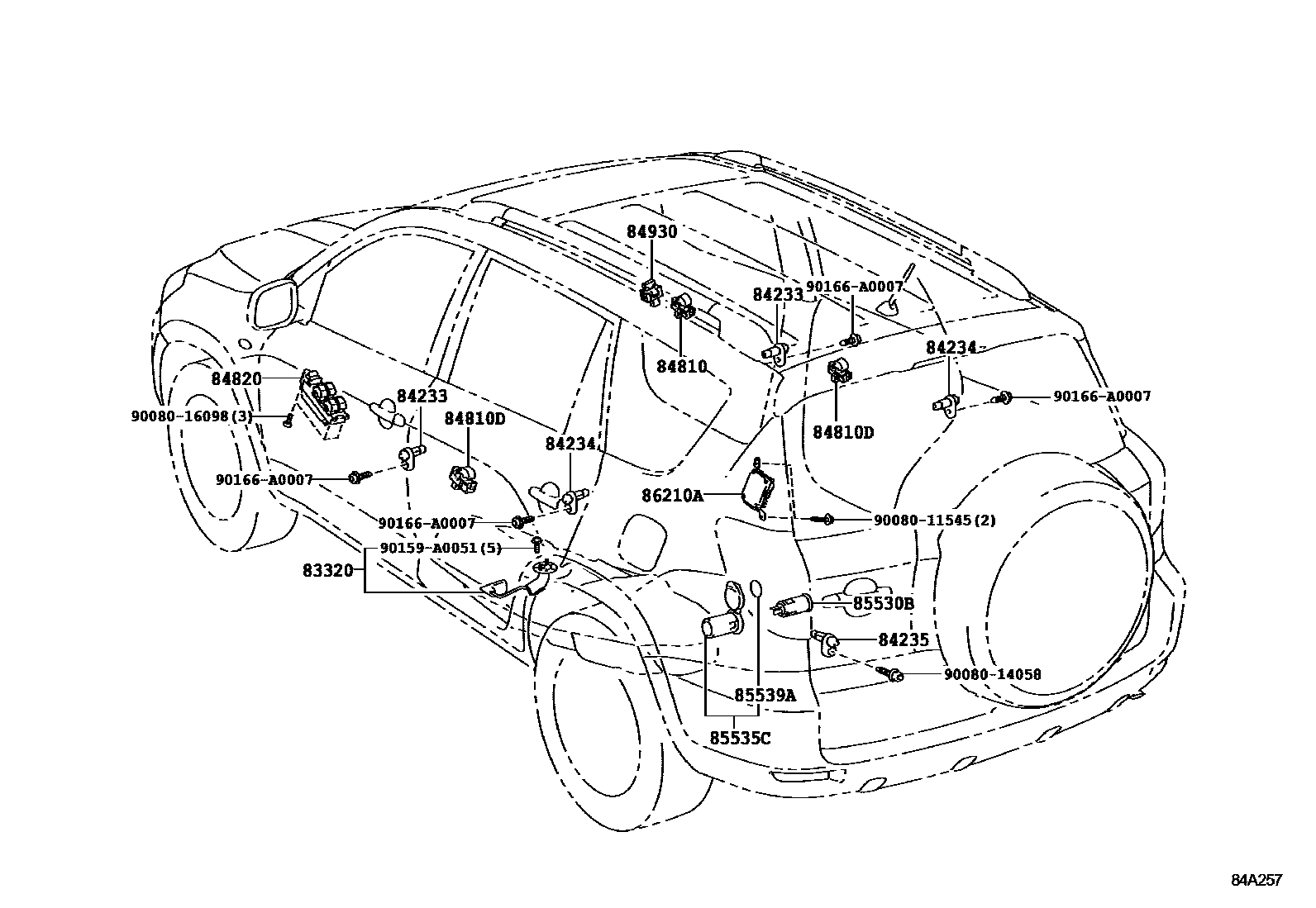

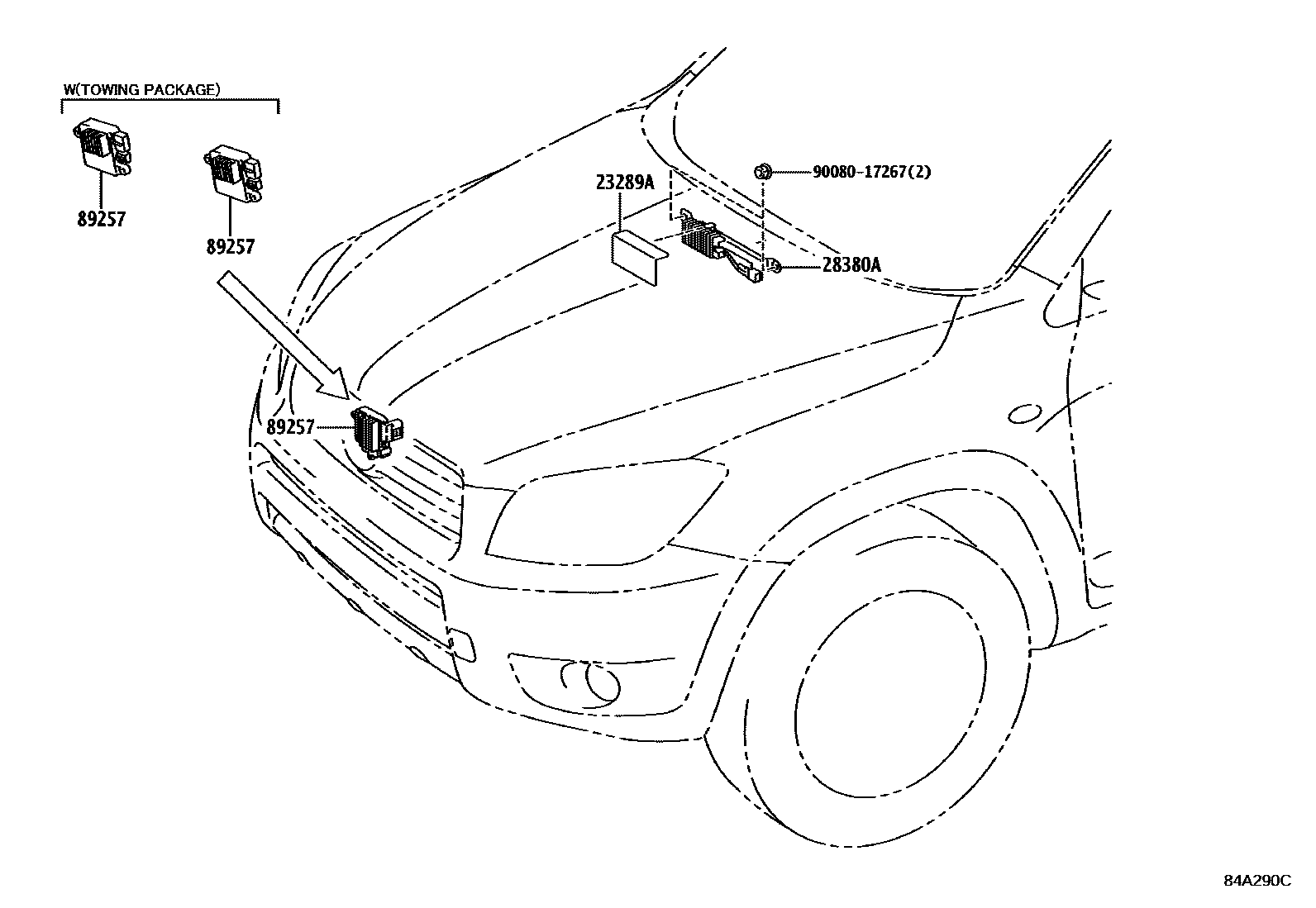

Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 9 images and 94 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23289A | fuel pump resistor cover | 23289-50020 |
| 28300 | Starter relay assembly | 28300-0A010 |
| 28300D | starter cutoff relay | 90080-87026 |
| 28371 | No. 1 ignition relay | 90987-A2002 |
| 28371C | No. 2 ignition relay | 90080-87026 |
| 28380A | fuel pump resistor | 23080-31051 |
| 81980 | Turn signal flasher relay assembly | 81980-02050 |
| 82210J | fuse | 90982-08202 · 90982-08203 · 90982-08274 · 90982-08286 · 90982-08295 · 90982-08296 |
| 82241J | Shorting pin | 82241-42010 |
| 82291D | Wiring harness (to solenoid valve) | 82291-02020 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82630 | Fuse holder assembly | 82631-42010 · 82631-42020 |
| 82631 | fuse holder | 82631-42030 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82642B | No. 1 daytime running light relay | 90084-98032 |
| 82642C | No. 2 daytime running light relay | 90080-87010 |
| 82660 | Engine room relay box assembly | 82660-42030 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660D | Relay assembly | 82660-42030 |
| 82660E | Relay assembly | 82660-52010 |
| 82660H | Relay assembly | 82660-52010 |
| 82661 | No. 1 relay box cover | 82661-42030 |
| 82662A | No. 1 relay box upper cover | 82662-0R010 · 82662-0R020 |
| 82662B | No. 2 relay box upper cover | 82662-0R030 · 82662-0R031 · 82662-0R040 |
| 82663B | No. 3 relay box lower cover | 82663-42080 |
| 82663C | No. 4 relay box lower cover | 82663-42090 |
| 82673A | Junction box bracket | 82673-42090 |
| 82673B | Junction box bracket | 82673-42100 |
| 82673C | Junction box bracket | 82673-42110 |
| 82673F | Junction box bracket | 82673-42120 |
| 82730 | Instrument panel junction box assembly | 82730-42540 · 82730-42541 · 82730-42550 · 82730-42551 · 82730-42560 · 82730-42561 · 82730-42660 · 82730-42661 · 82730-42662 · 82730-42663 · 82730-42670 · 82730-42671 · 82730-42672 · 82730-42673 · 82730-42680 · 82730-42681 · 82730-42682 · 82730-42683 |
| 82741 | Engine room relay box | 82741-42010 |
| 82742 | Engine room No. 2 relay box | 82742-42030 |
| 82824L | Shorting pin | 82824-20140 |
| 82861 | No. 1 ECU integrated bracket | 82861-42010 · 82861-42020 |
| 83320 | Fuel gauge sensor assembly | 83320-09140 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-0E010 · 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84119 | Light control rheostat | 84119-0C040 |
| 84140 | Headlight dimmer switch assembly | 84140-02660 · 84140-02670 · 84140-07141 · 84140-0E070 · 84140-0E090 · 84140-0E100 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84235 | Door control light switch assembly (for back door) | 84231-08030 |
| 84244 | Steering wheel trim cover switch | 84244-0R011 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-0R010 · 84250-0R020 |
| 84306 | Spiral cable sub-assembly | 84306-0E010 |
| 84330 | Hazard warning signal switch assembly | 84332-0R010 |
| 84340 | brake light switch assembly | 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84480 | Main switch assembly | 84480-0R020 |
| 84540 | Neutral start switch assembly | 84540-42010 |
| 84550 | Parking brake switch assembly | 84550-02020 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-02730 · 84652-0E050 |
| 84724 | four wheel drive control switch | 84724-0R010 |
| 84751F | Seat heater switch | 84751-02040 |
| 84794 | Front wiper de-icer switch | 84794-0R010 |
| 84794A | Front wiper de-icer relay | 90080-87010 |
| 84810 | Electric window lift switch assembly | 84810-06030 |
| 84810D | Rear electric window lift switch assembly | 84810-06030 |
| 84820 | Electric window lift main switch assembly | 84820-0R010 |
| 84870A | Exterior rearview mirror switch assembly | 84870-08010 |
| 84922C | Front left electric seat switch | 84922-AE010 |
| 84930 | Door control switch assembly | 84930-0C010 |
| 84988H | Downhill assist control switch | 84988-0R010 |
| 84988L | VSC off switch | 84988-0R020 |
| 85432 | Key interlock solenoid valve | 85432-71010 |
| 85530 | No. 1 power socket assembly | 85530-06030 |
| 85530A | power outlet relay | 90080-87010 |
| 85530B | No. 1 rear power socket assembly | 85530-06030 |
| 85530C | Central power socket assembly | 85530-06030 |
| 85535D | Central power socket cover | 85535-0R010 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85539A | Note label on rear power outlet | 85539-60020 |
| 85903 | Shift lock control ECU sub-assembly | 85903-06010 |
| 85913C | Heater relay No. 1 | 90080-87025 · 90987-04010 |
| 85916D | fog light relay | 90080-87026 |
| 85916P | headlight relay | 90080-87024 |
| 85927 | cooling fan relay | 90080-87024 · 90080-87026 · 90987-02025 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90084-98032 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90080-87026 · 90987-02027 |
| 85930G | ACC relay | 90080-87026 |
| 85934 | Electromagnetic clutch relay | 90080-87026 · 90987-02027 · 90987-02028 |
| 86210A | Voltage inverter assembly | 86210-42020 |
| 86220A | Inverter relay | 90080-87026 |
| 87346K | PTC heater relay | 90987-02025 |
| 89245B | steering sensor | 89245-0R020 |
| 89257 | Cooling fan ECU | 89257-26020 · 89257-30080 |
| 89465 | oxygen sensor | 89465-0R010 · 89465-0R020 · 89465-0R030 |
| 89467B | air fuel ratio sensor | 89467-0R010 · 89467-0R020 · 89467-42120 |
| 895A0 | Brake light control relay assembly | 895A0-42020 · 895A0-46010 · 895A0-46020 |
| 89611 | push button start switch | 89611-02070 · 89611-02071 · 89611-02072 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-42070 · 89650-42080 |
