Toyota RAV4 仪表 — Figure 8301
Toyota RAV4 EPC diagram 8301, 仪表, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

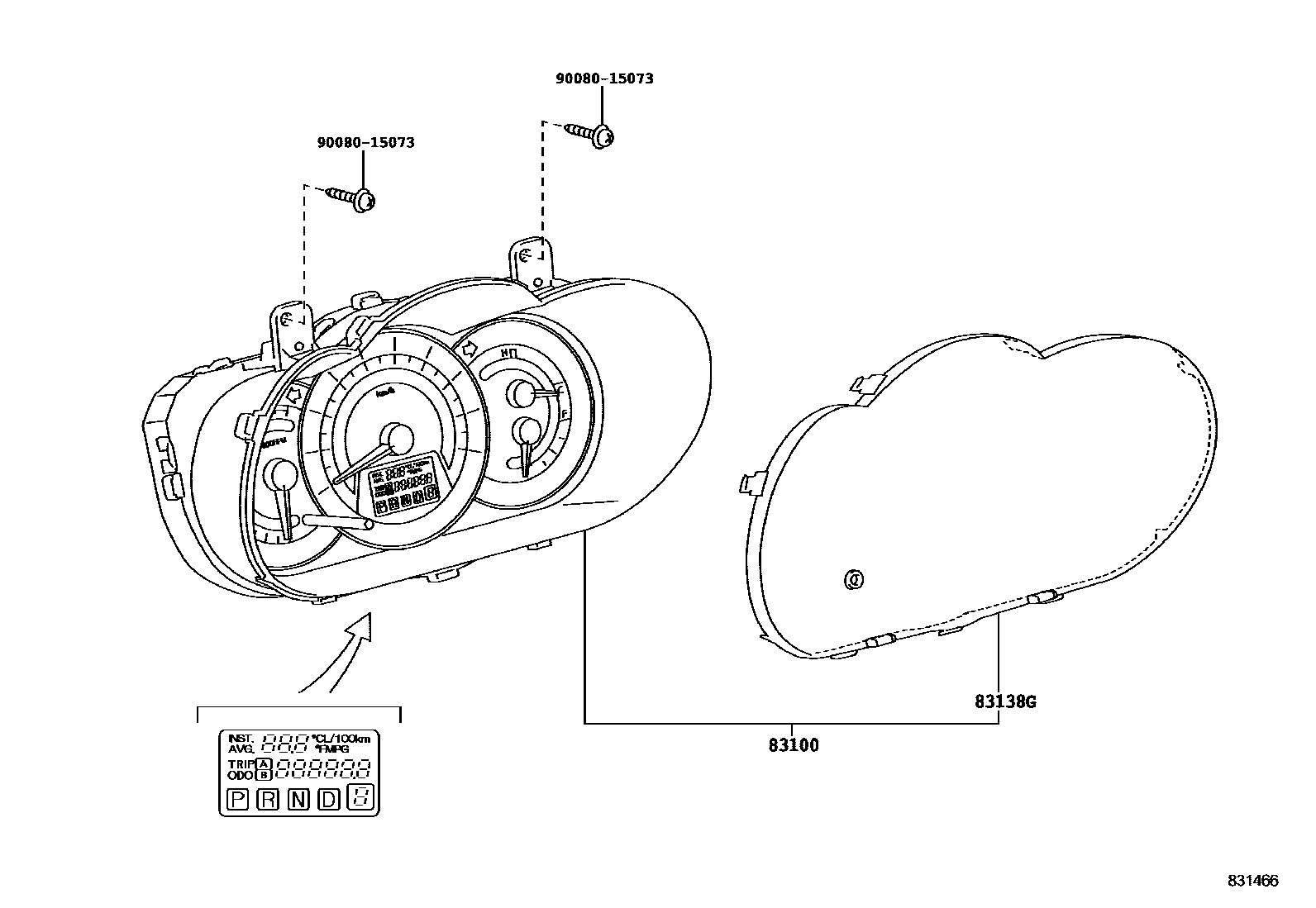

| 83100 | Combined instrument assembly | 83800-0R010 · 83800-0R011 · 83800-0R020 · 83800-0R021 · 83800-0R030 · 83800-0R031 · 83800-0R040 · 83800-0R041 · 83800-0R090 · 83800-0R091 · 83800-0R100 · 83800-0R101 · 83800-0R110 · 83800-0R111 · 83800-0R120 · 83800-0R121 |
| 83138G | Instrument cluster glass | 83852-0R010 |

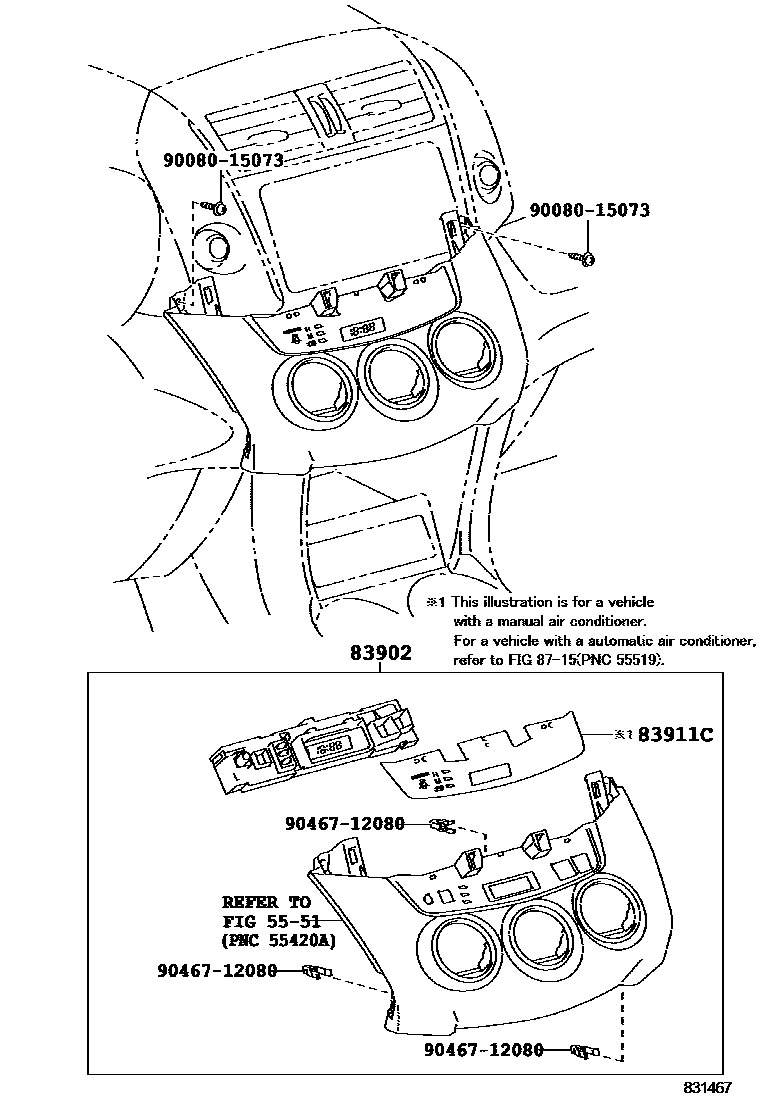

| 83911C | clock decoration | 83911-0R010 |
