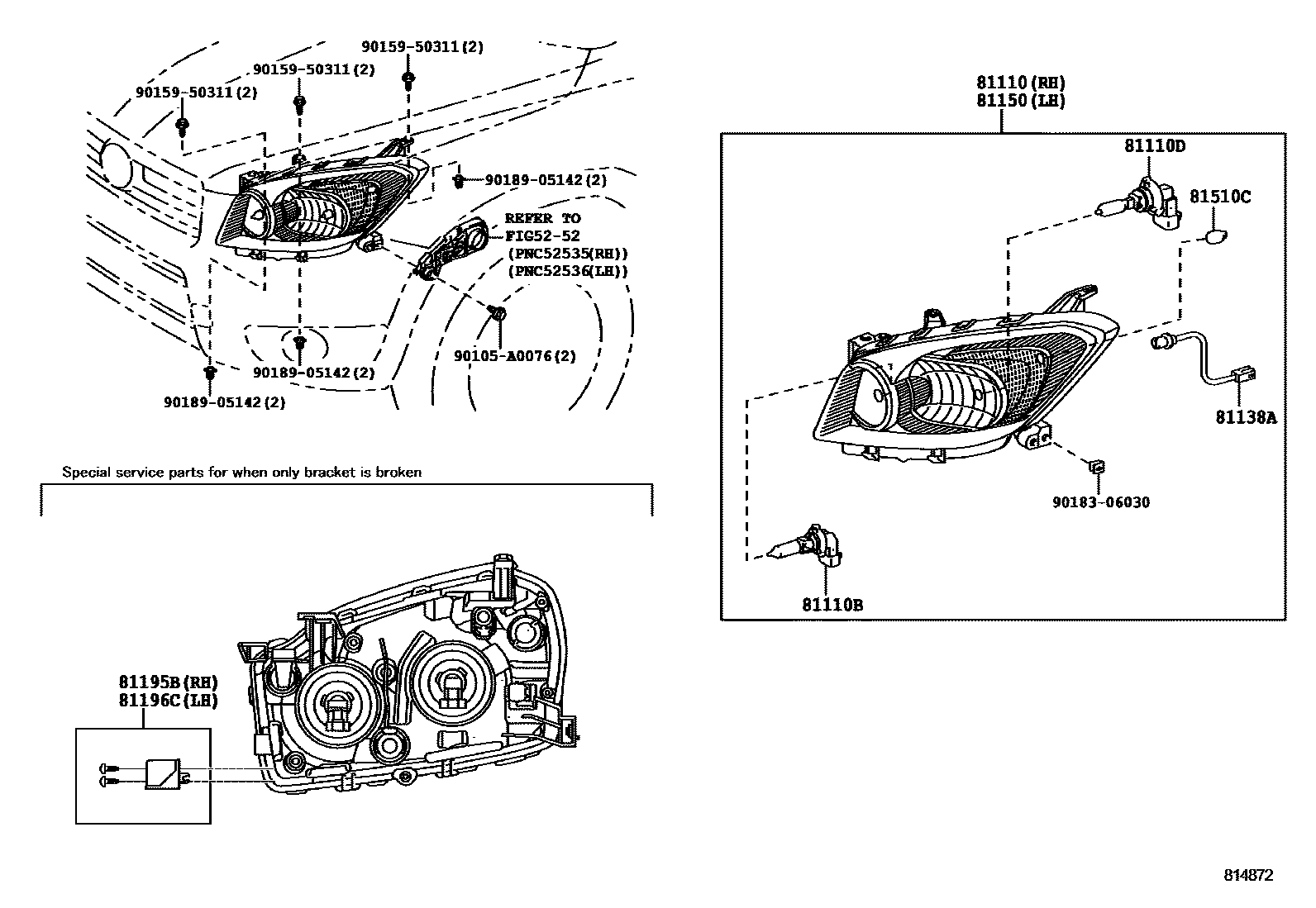

Toyota RAV4 Headlamp — Figure 8101
Toyota RAV4 EPC diagram 8101, Headlamp, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-0R010 · 81110-0R020 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13047 |
| 81138A | Headlight holder and wiring harness | 81125-0R020 |
| 81150 | Left headlight assembly | 81150-0R010 · 81150-0R020 |
| 81195B | Right headlight lower right protection piece | 81195-42020 |
| 81196C | Left headlight lower left protection piece | 81196-42020 |
| 81510C | Bulb (for front turn signal lamp) | 90981-13044 |
