Toyota RAV4 扰流板和侧挡泥板 — Figure 7652

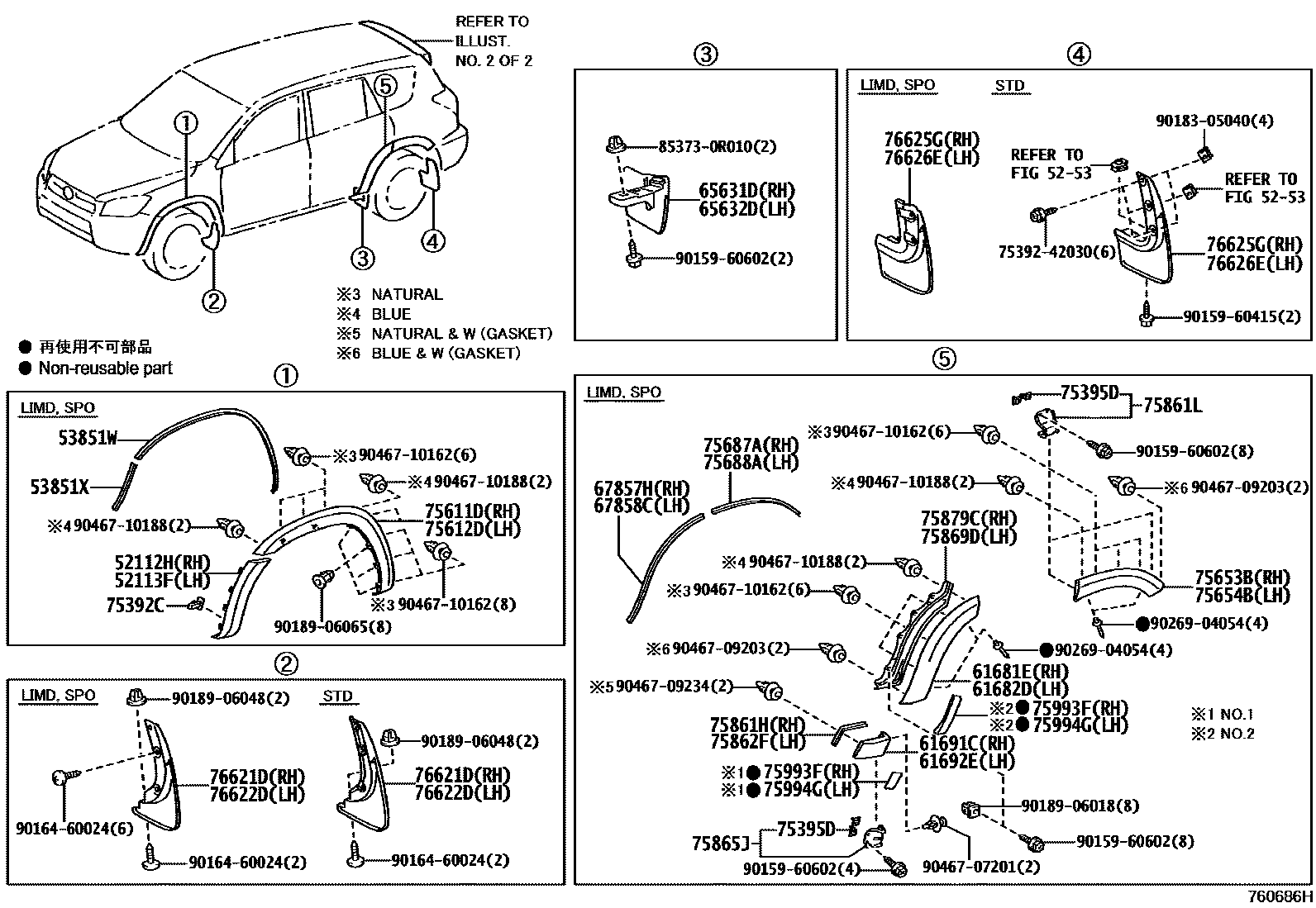

Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52112H | Front bumper right extension | 52112-0R901 |
| 52113F | Front bumper left extension | 52113-0R901 |
| 53851W | No. 1 front fender outer panel pad | 53851-0R020 |
| 53851X | No. 1 front fender outer panel pad | 53851-0R010 |
| 61681E | Right rear fender No. 1 external connection plate | 61681-0R901 |
| 61682D | Left rear fender No. 1 external connection plate | 61682-0R901 |
| 61691C | Right rear fender No. 2 external panel | 61691-0R901 |
| 61692E | Left rear fender No. 2 external connection plate | 61692-0R901 |
| 65631D | Right rear wheel house front panel | 65631-0R010 |
| 65632D | Left rear wheel house front panel | 65632-0R010 |
| 67857H | Right rear door panel protector | 67857-0R010 |
| 67858C | Left rear door panel protector | 67857-0R010 |
| 75392C | Left outer protective strip fixing | 75392-0R010 |
| 75395D | No. 1 outer protective strip clip | 75395-0R010 |
| 75611D | Right front fender outer front protective strip | 75611-0R901 |
| 75612D | Left front fender outer front protective strip | 75612-0R901 |
| 75653B | No. 3 right side enclosure outer protective strip | 75653-0R901 |
| 75654B | No. 4 side panel outer protective strip | 75654-0R901 |
| 75687A | Right rear side panel lower protective strip protection device | 75687-0R010 |
| 75688A | Left rear side panel lower protective strip protection device | 75687-0R010 |
| 75861H | No. 1 door sill panel protective strip protective cover | 75861-0R010 |
| 75861L | No. 1 door sill panel protective strip fixings | 75861-0R020 |
| 75862F | No. 2 door sill panel protective cover | 75862-0R010 |
| 75865J | No. 2 door sill panel protective strip fixings | 75865-0R010 |
| 75869D | Left side panel opening fixing | 75869-0R010 |
| 75879C | Right side panel opening fixing | 75879-0R010 |
| 75993F | Right front side panel | 75987-0R010 · 75991-0R010 |
| 75994G | Left front side panel | 75988-0R010 · 75992-0R010 |
| 76621D | Right front fender fender | 76621-42090 · 76621-42100 |
| 76622D | Left front fender fender | 76622-42090 · 76622-42100 |
| 76625G | Right rear side fender | 76625-42100 · 76625-42120 |
| 76626E | Left rear side fender | 76626-42160 · 76626-42180 |
| 76871 | rear spoiler | 76871-0R901 · 76871-0R902 |
| 76872 | No. 1 rear spoiler protective strip | 76872-0R010 |
| 76873B | No. 2 rear spoiler protective strip | 76873-0R010 |
| 76874 | No. 3 rear spoiler protective strip | 76874-0R010 |
| 76875 | No. 4 rear spoiler protective strip | 76875-0R010 |
| 76876A | No. 10 rear spoiler protective strip | 76876-0R010 |
| 76889B | No. 1 rear spoiler seal | 76889-0R010 |
| 76897 | Right rear spoiler protection strip | 76897-0R010 |
| 76898 | Left rear spoiler protection strip | 76898-0R010 |
