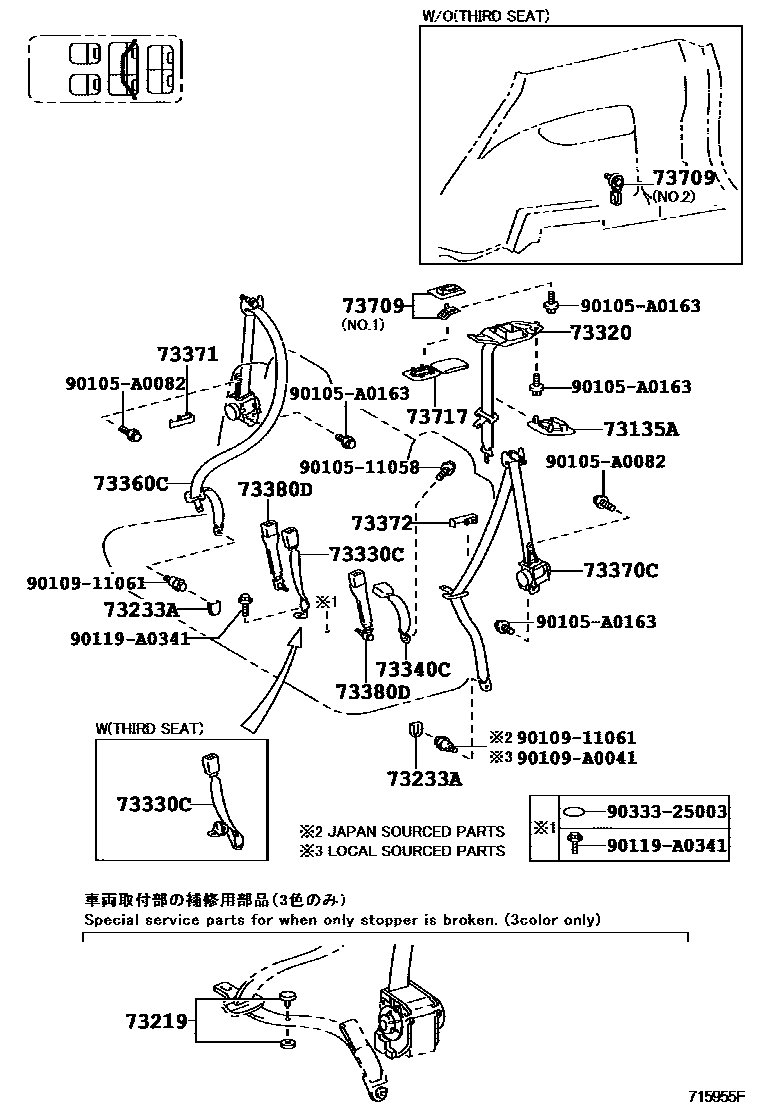

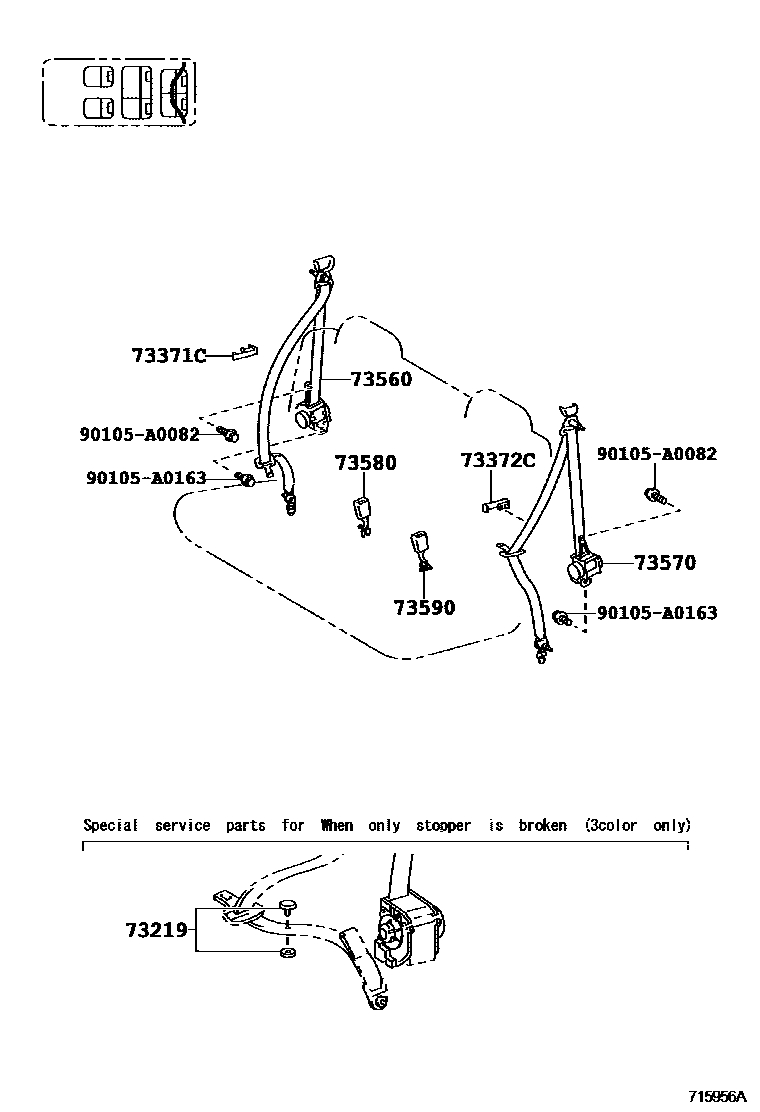

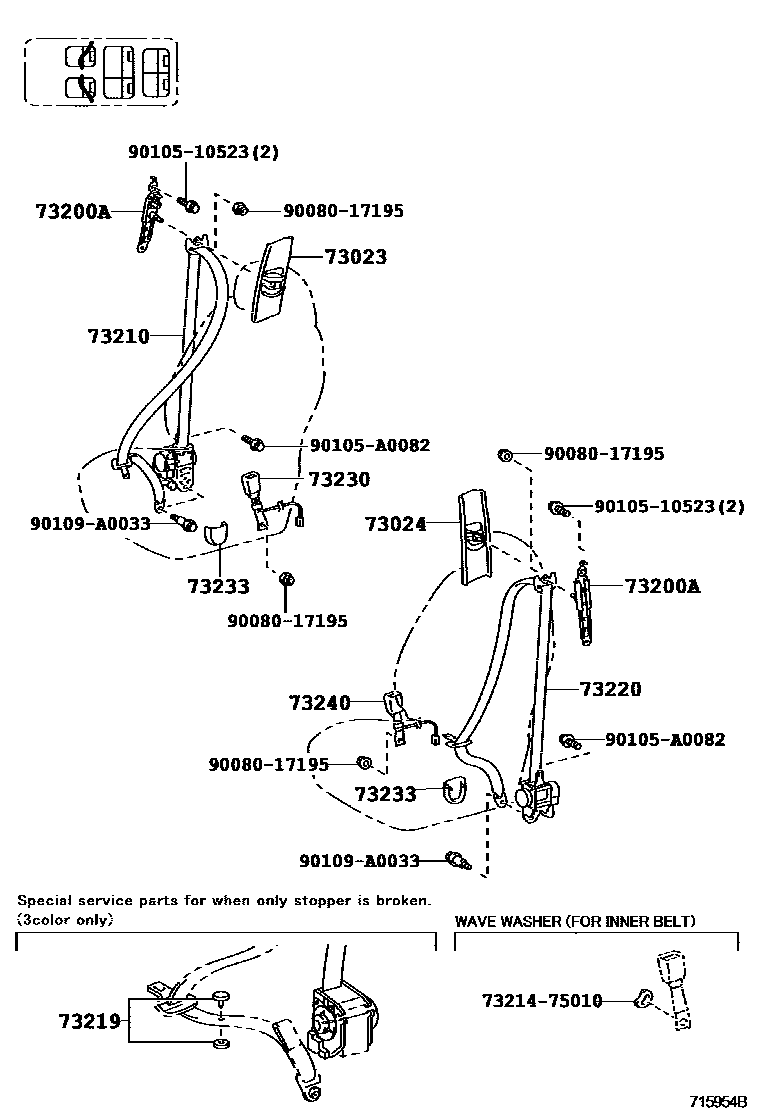

Toyota RAV4 seat belt — Figure 7152
Toyota RAV4 EPC diagram 7152, seat belt, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-06040 |
| 73219 | Tongue plate stop | 73219-02010 · 73219-02020 · 73219-02030 |
| 73233 | Lap belt outer anchor cover | 73233-0R010 · 73233-42030 |
| 73233A | Rear seat No. 1 lap belt outer anchor cover | 73233-0R010 · 73233-42030 |
