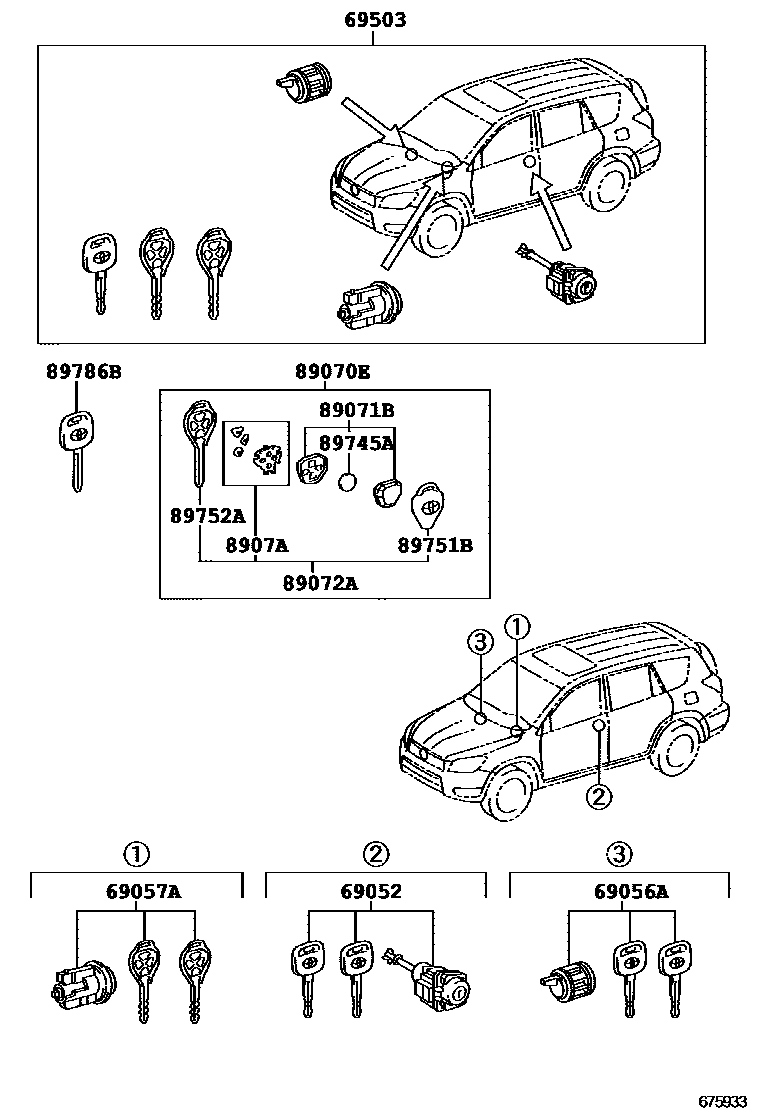

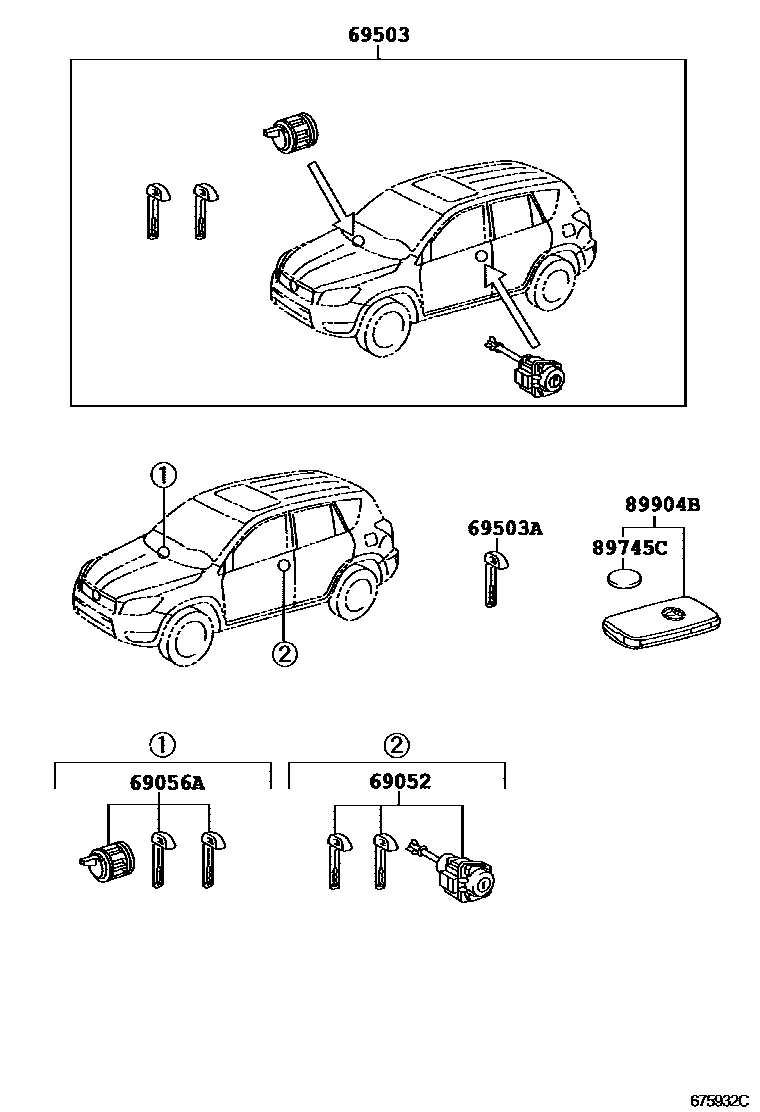

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-02160 · 69052-0R020 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06040 · 69056-0R040 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02150 · 69057-02291 |
| 69503 | Door lock cylinder components | 69005-0R020 · 69005-0R021 · 69005-0R040 |
| 69503A | external tooth key | 69515-52120 |
| 89070E | Remote key assembly | 89070-0R030 · 89070-0R050 |
| 89071B | Remote key sub-assembly module assembly | 89071-0R010 |
| 89072A | Remote key shell assembly | 89072-0R030 · 89072-0R050 |
| 8907A | Transmitter switch assembly | 8907A-12010 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-52020 |
| 89751B | Transmitter housing cover | 89751-0R020 · 89751-0R030 |
| 89752A | transmitter housing | 89752-02210 · 89752-0K080 |
| 89786B | transceiver key secondary transmitter | 89786-08020 · 89786-08040 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0R060 · 89904-0R090 · 89904-48100 |
