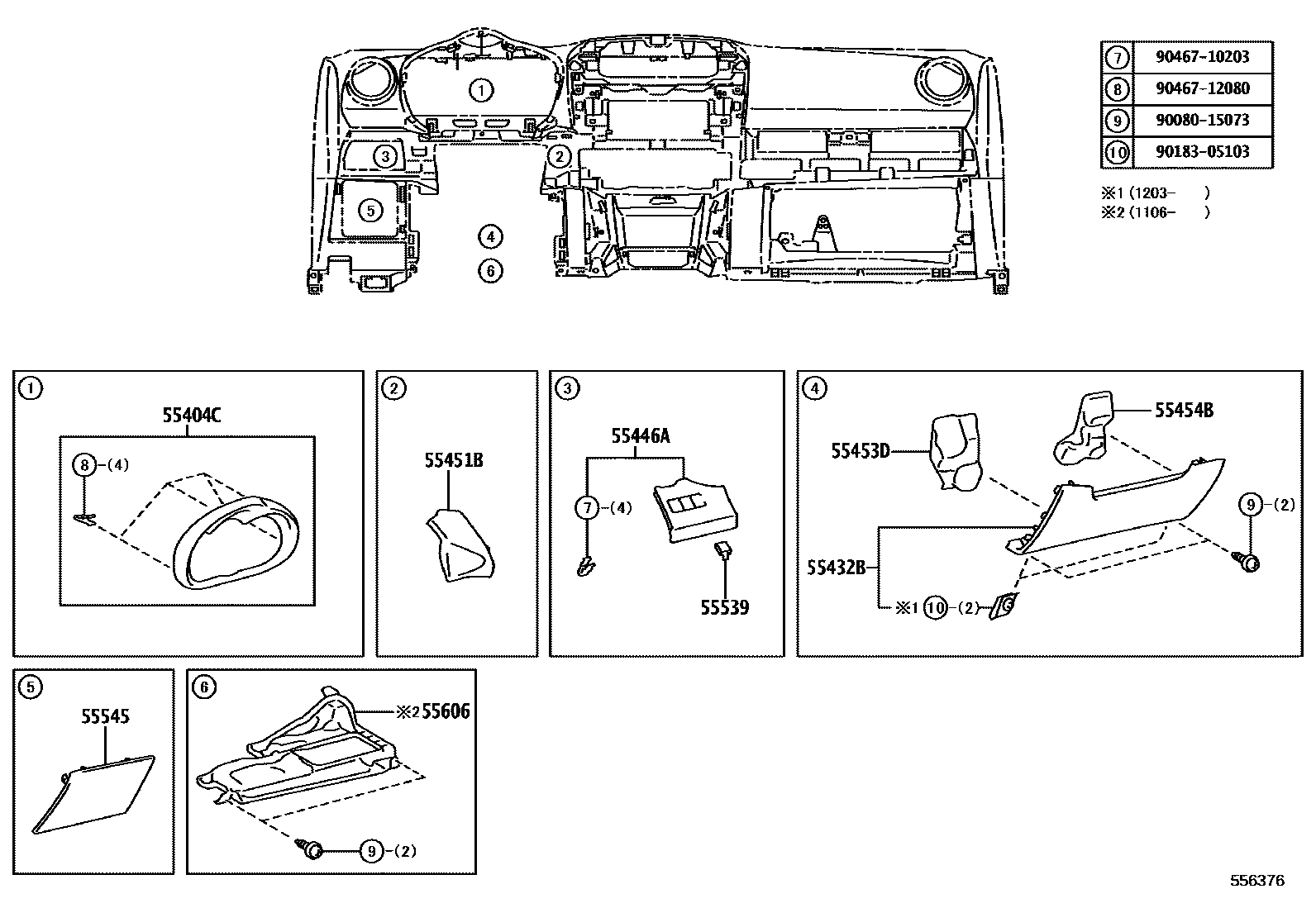

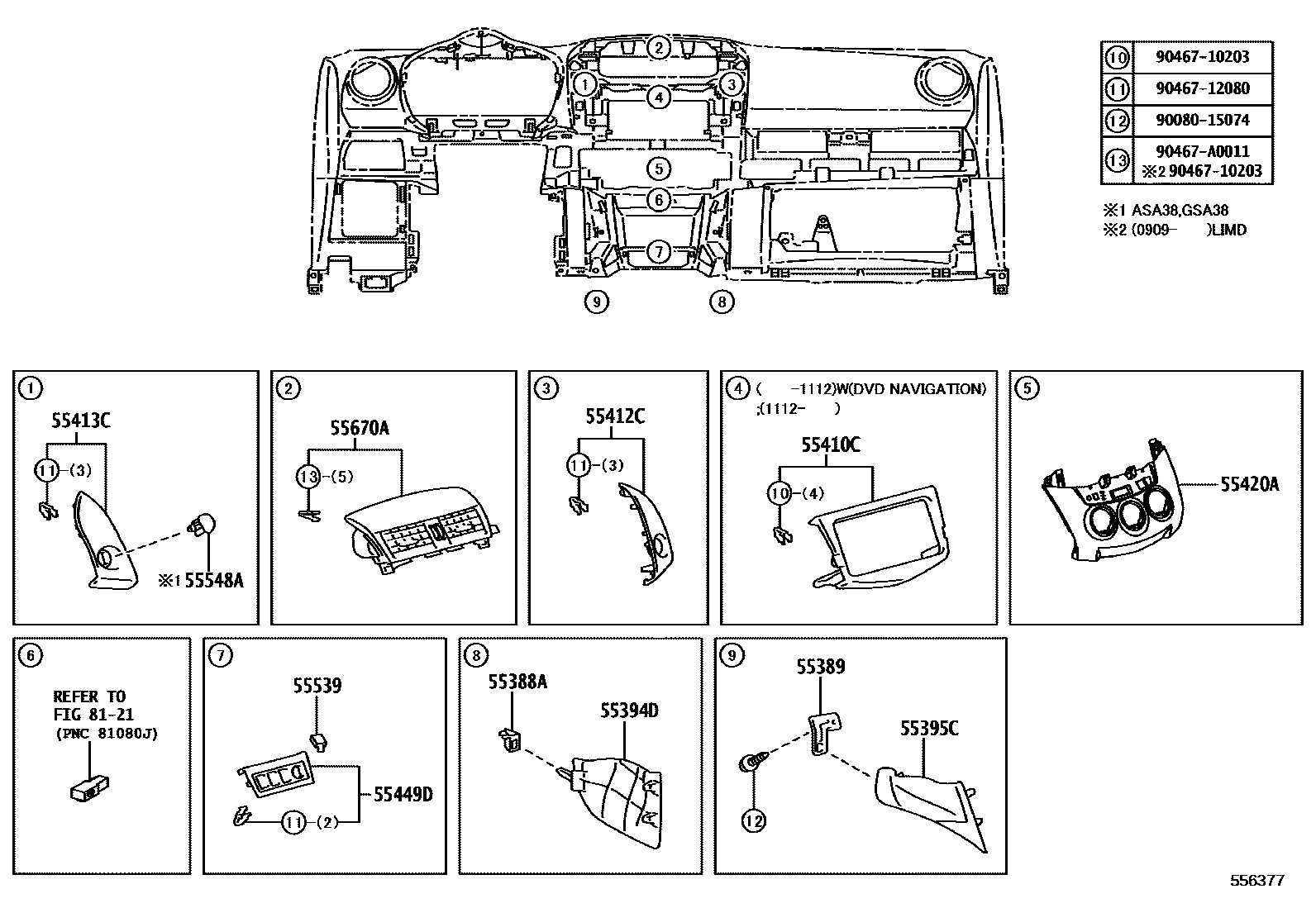

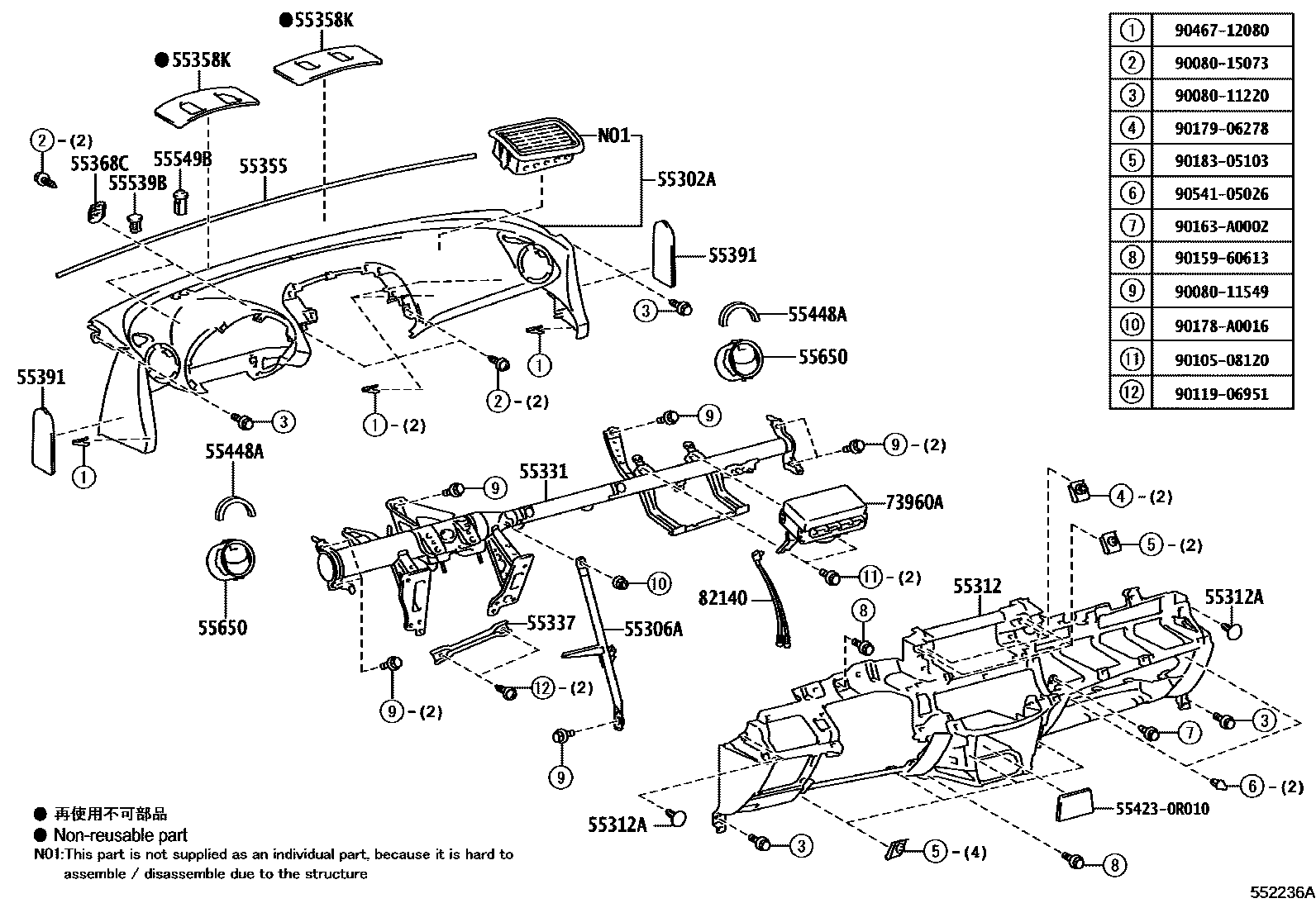

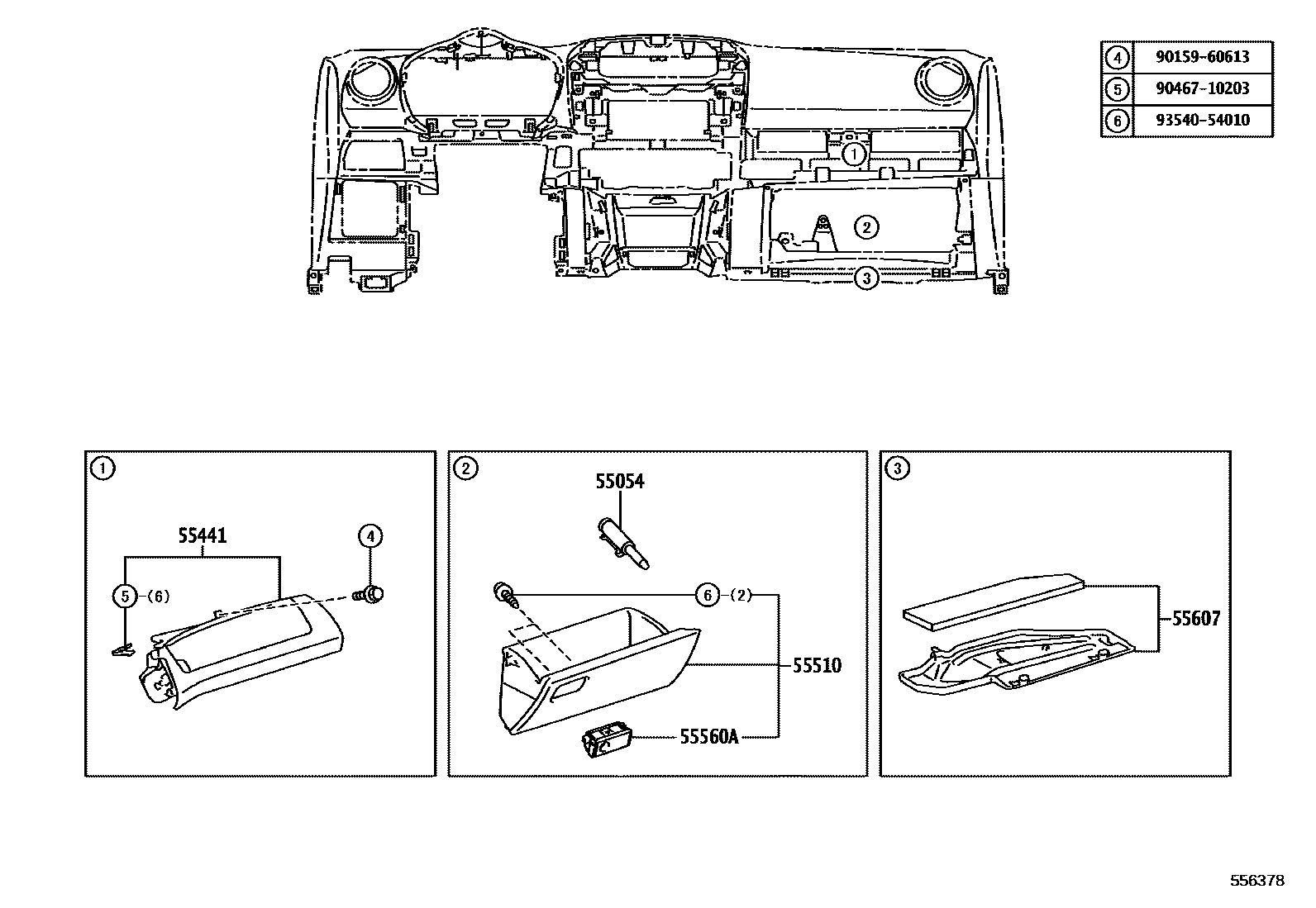

Toyota RAV4 仪表板和手套箱 — Figure 5551
Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-33060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0R010 |
| 55331 | Dashboard reinforcement | 55330-0R010 |
| 55337 | Dashboard sub-reinforcement | 55337-0R010 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0R010 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-0R010 · 55358-0R050 |
| 55368C | Instrument mounting bracket | 55368-0R010 |
| 55388A | Mounting bracket on the right side of the console | 55388-0R010 |
| 55389 | Console left side mounting bracket | 55389-0R010 |
| 55391 | Dashboard No. 1 lower cushion | 55391-0R010 |
| 55448A | Instrument panel decorative cushion No. 1 | 55448-0R010 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-0R010 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-0R010 |
| 55549B | Instrument panel hole cover No. 2 | 55549-42020 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0R030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0R010 · 55607-0R011 · 55607-0R030 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0R010 · 73960-0R011 |
| 82140 | Instrument panel wiring harness assembly | 82140-0R010 |
