Toyota RAV4 发动机盖锁和铰链 — Figure 5354

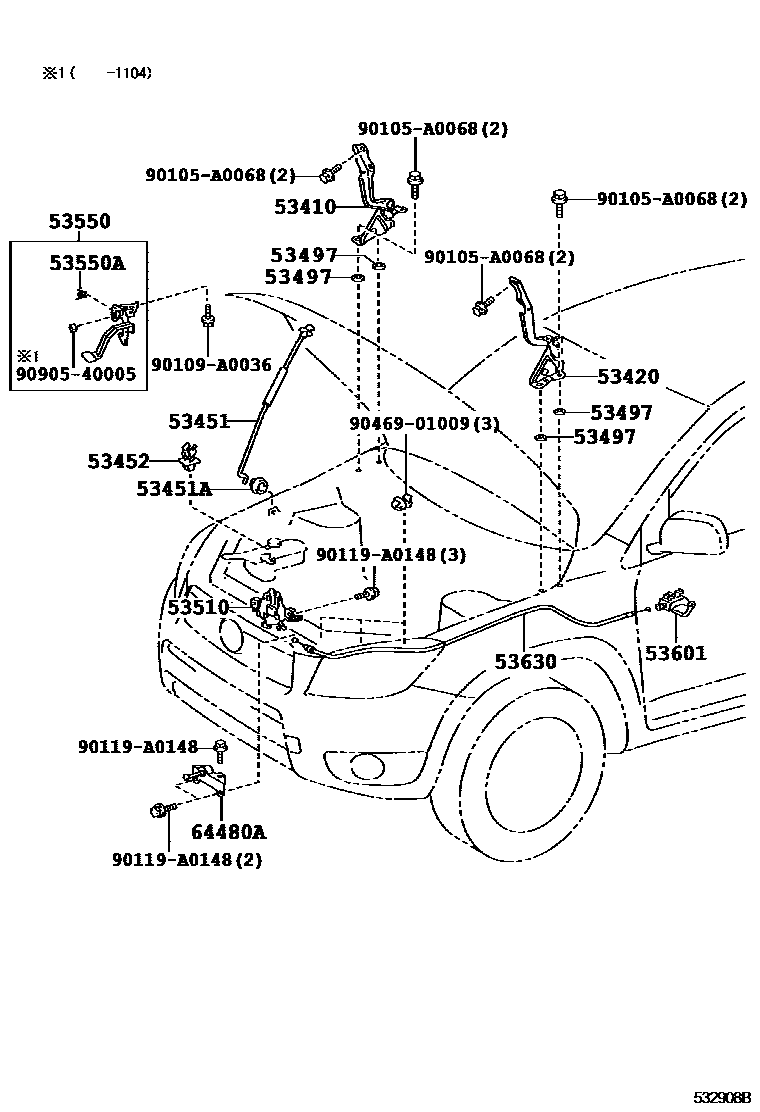

Toyota RAV4 EPC diagram 5354, 发动机盖锁和铰链, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0R030 |
| 53420 | Engine cover left hinge assembly | 53420-0R030 |
| 53451 | Engine cover support rod | 53440-0R010 |
| 53451A | Gasket (for engine cover support rod) | 53454-0R010 |
| 53452 | Engine cover stay rod fixing | 53452-0R010 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-42090 |
| 53550 | Engine cover auxiliary buckle assembly | 53550-42020 |
| 53550A | Torsion spring (for hood latch) | 90508-18102 · 90508-18120 |
| 53630 | Engine hood lock control cable assembly | 53630-0R010 |
| 64480A | Engine cover lock assembly | 64480-42010 |
