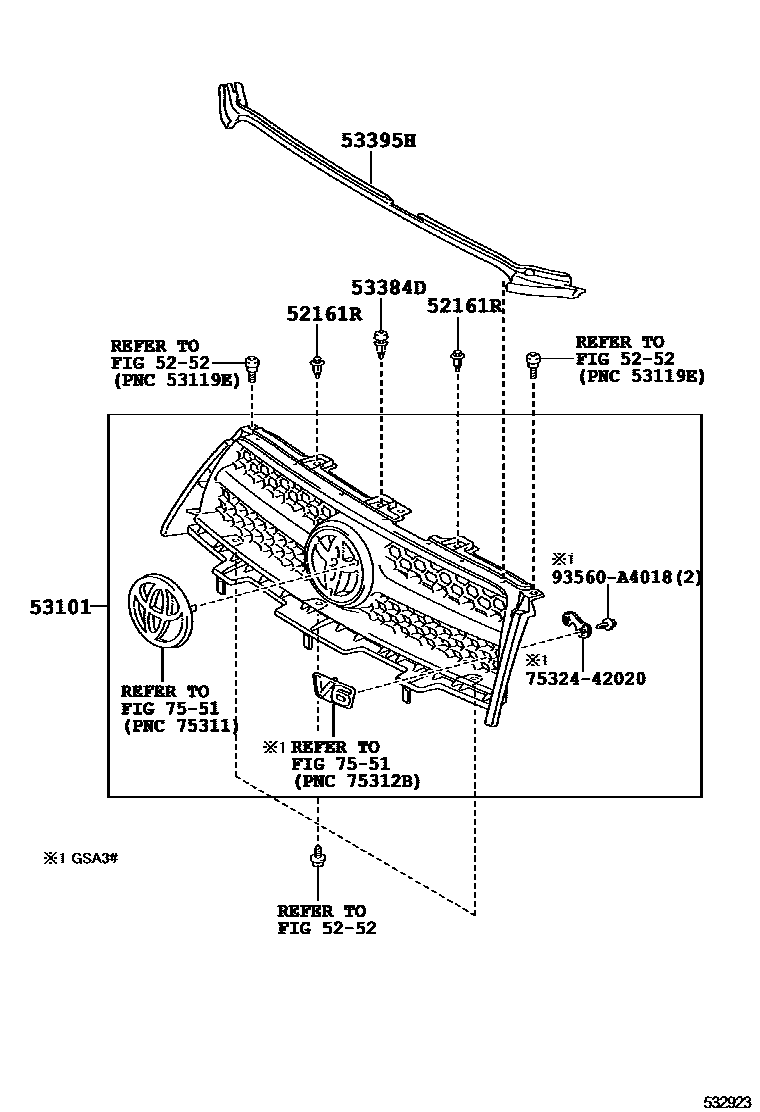

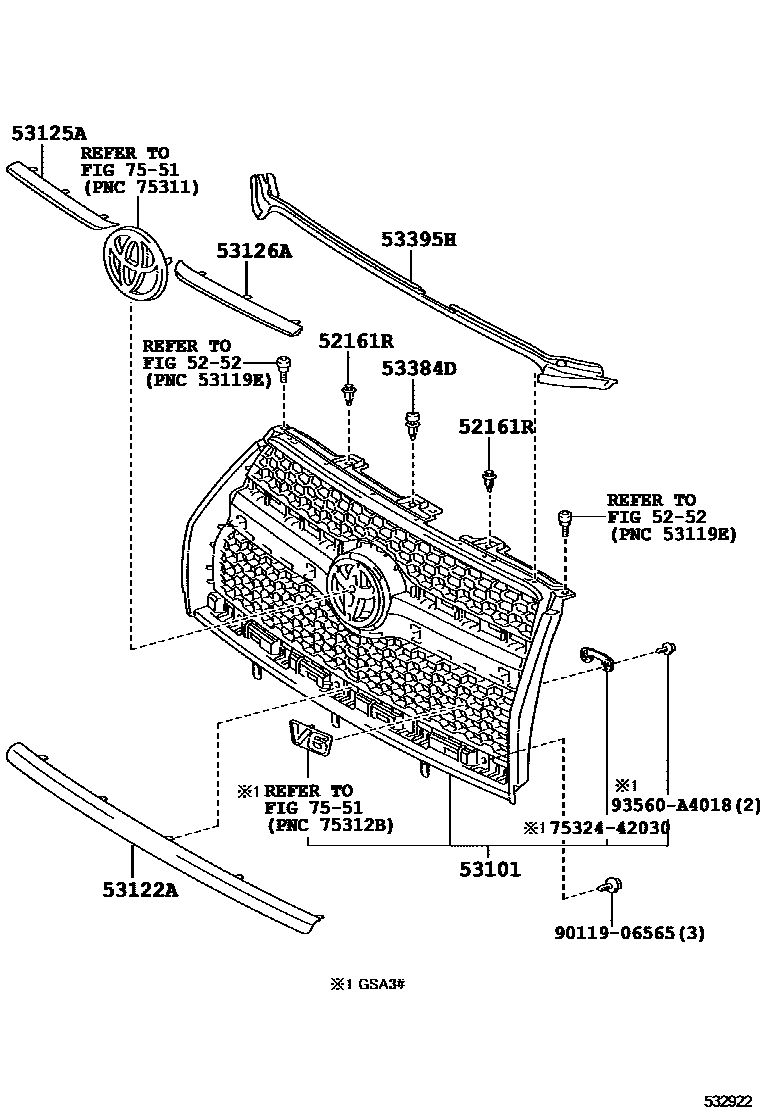

Toyota RAV4 radiator grille — Figure 5351
Toyota RAV4 EPC diagram 5351, radiator grille, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-02020 |
| 53101 | Radiator grille sub-assembly | 53101-0R010 · 53101-0R020 · 53101-0R050 · 53101-0R060 |
| 53122A | Radiator grille lower protective strip | 53122-42030 |
| 53125A | Radiator grille right center protective strip | 53125-42040 |
| 53126A | Radiator grille left middle protective strip | 53126-42030 |
| 53384D | Engine cover center cushion | 53384-0R010 |
| 53395H | Engine cover to radiator grille seal | 53395-0R010 · 53395-0R011 |
