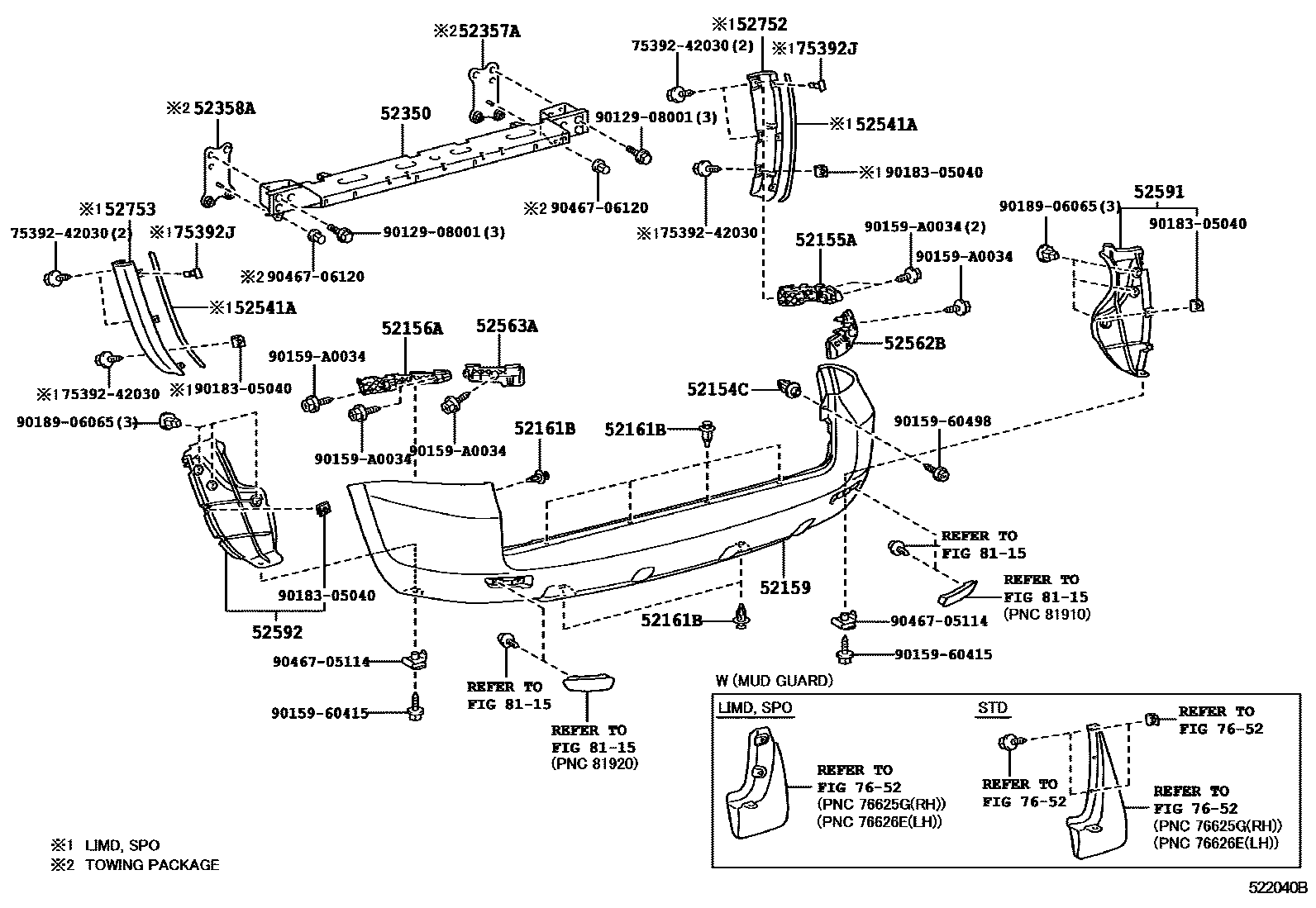

Toyota RAV4 后保险杠及附件 — Figure 5253
Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52154C | Rear bumper bracket No. 1 | 52154-0R010 |
| 52155A | Rear bumper right side bracket | 52155-0R010 |
| 52156A | Rear bumper left bracket | 52156-0R010 |
| 52159 | rear bumper cover | 52159-0R901 · 52159-0R902 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52350 | Rear bumper running board assembly | 52350-0R020 |
| 52357A | Rear running board right panel | 52357-0R010 |
| 52358A | Rear running board left plate | 52358-0R010 |
| 52541A | rear bumper protector | 52541-0R010 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0R010 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0R010 |
| 52591 | Rear bumper right seal | 52591-0R010 |
| 52592 | Rear bumper left seal | 52592-0R010 |
| 52752 | Rear bumper right side protective strip | 52752-0R901 |
| 52753 | Rear bumper left protective strip | 52753-0R901 |
| 75392J | External protective strip fixings | 75392-0R010 |
