Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152

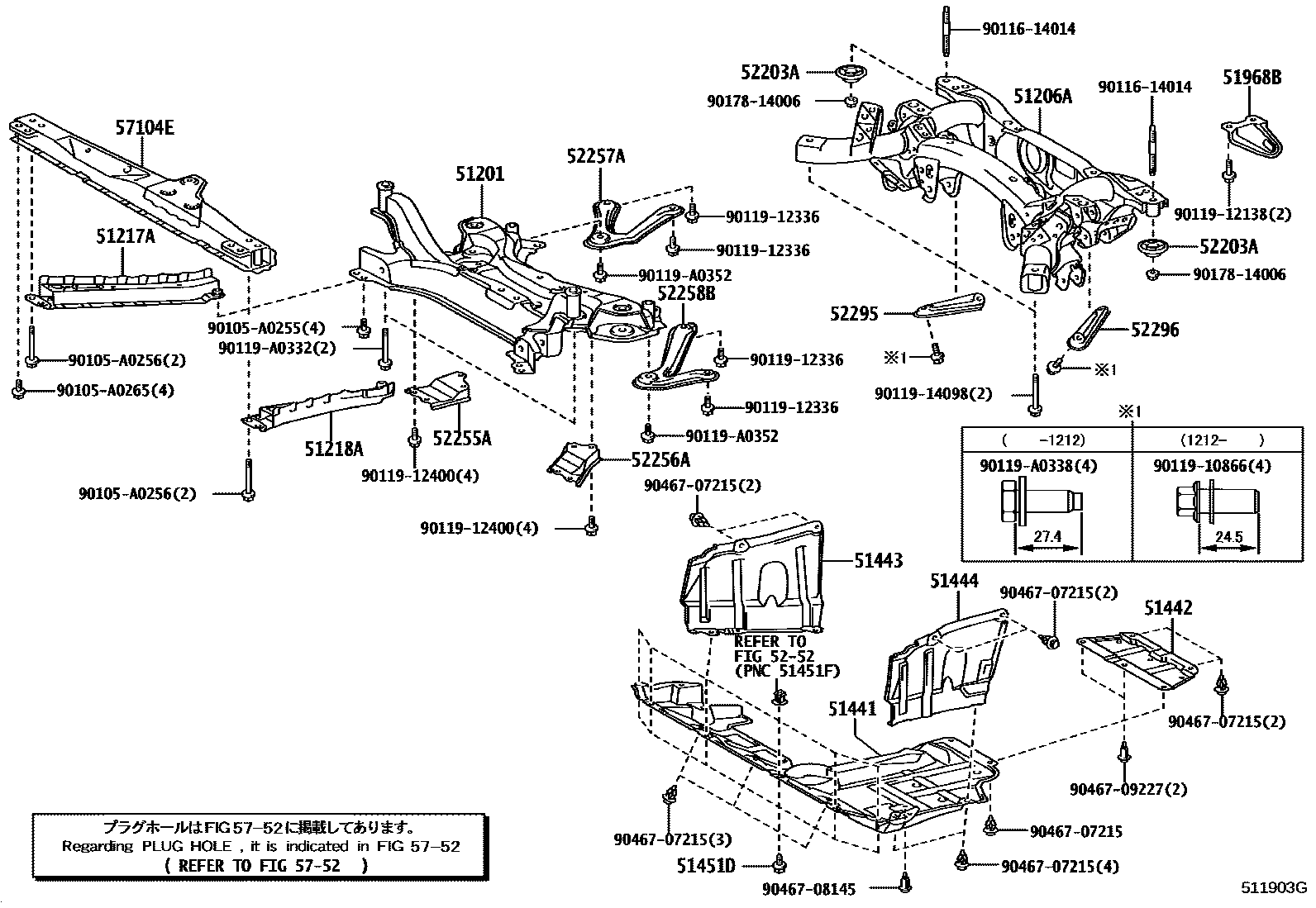

Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0R010 |
| 51206A | Rear suspension cross member sub-assembly | 51206-0R011 · 51206-0R031 · 51206-0R032 |
| 51217A | Right front suspension cross member reinforcement | 51107-0R010 · 51107-0R040 |
| 51218A | Left front suspension cross member reinforcement | 51108-0R010 · 51108-0R030 |
| 51441 | No. 1 engine bottom cover | 51410-0R010 |
| 51442 | No. 2 engine bottom cover | 51442-0R010 |
| 51443 | Engine right rear bottom cover | 51443-0R010 |
| 51444 | Engine left rear bottom cover | 51444-0R010 · 51444-0R020 |
| 51451D | VIS, NO.1 | 90159-60498 |
| 51968B | Left rear transport hook | 51968-0R010 |
| 52203A | Rear body fixed cushion pad sub-assembly | 52203-42010 |
| 52255A | Right front suspension cross member front bracket | 52255-0R010 |
| 52256A | Left front suspension cross member front bracket | 52256-0R010 |
| 52257A | Right front suspension cross member rear bracket | 52257-0R010 |
| 52258B | Left front suspension cross member rear bracket | 52258-0R010 · 52258-0R011 |
| 52295 | Right rear suspension cross member bracket | 52295-12040 · 52295-42010 |
| 52296 | Left rear suspension cross member bracket | 52296-12010 · 52296-42010 |
| 57104E | Front cross member sub-assembly | 57104-0R010 · 57104-0R011 |
