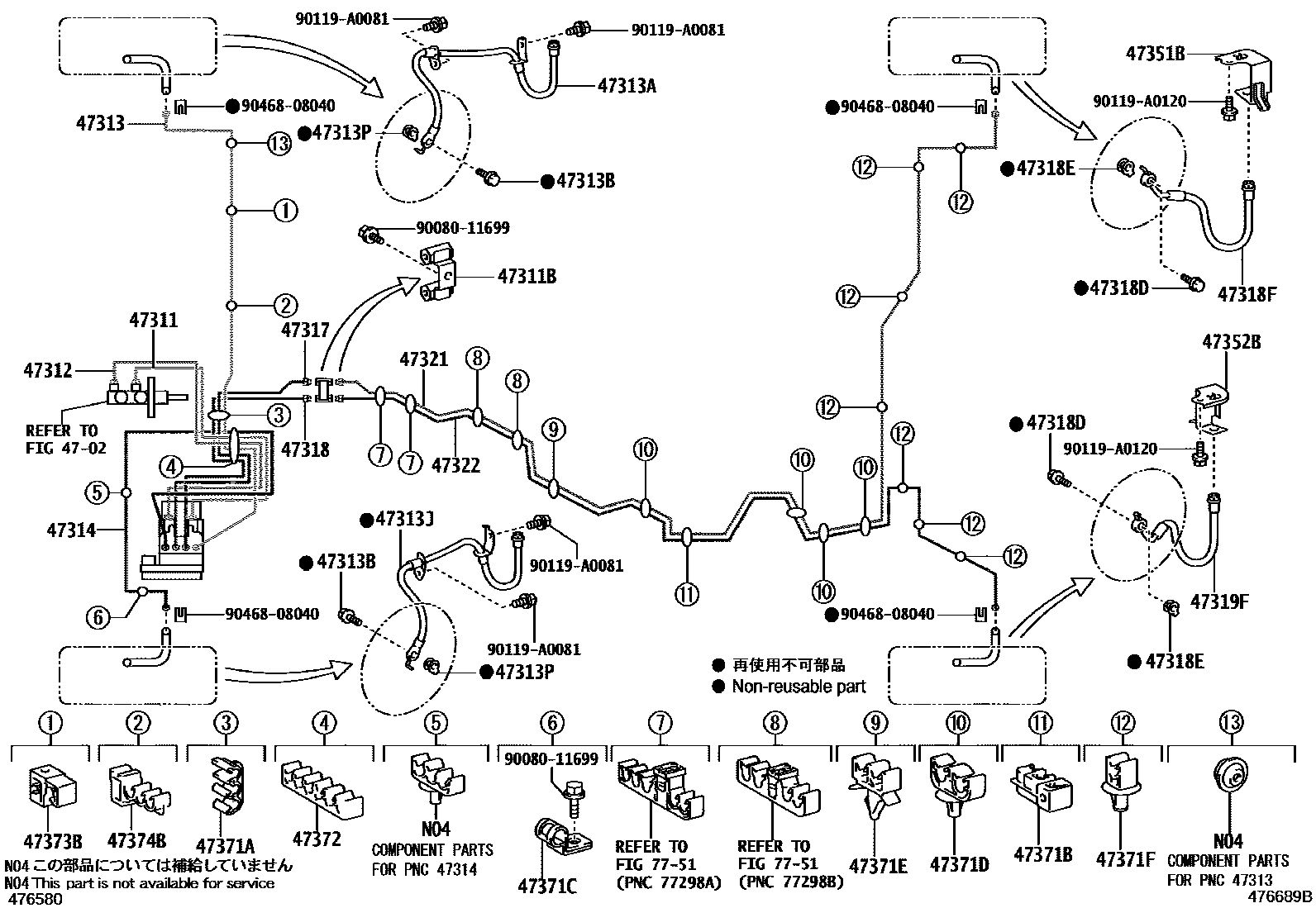

Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

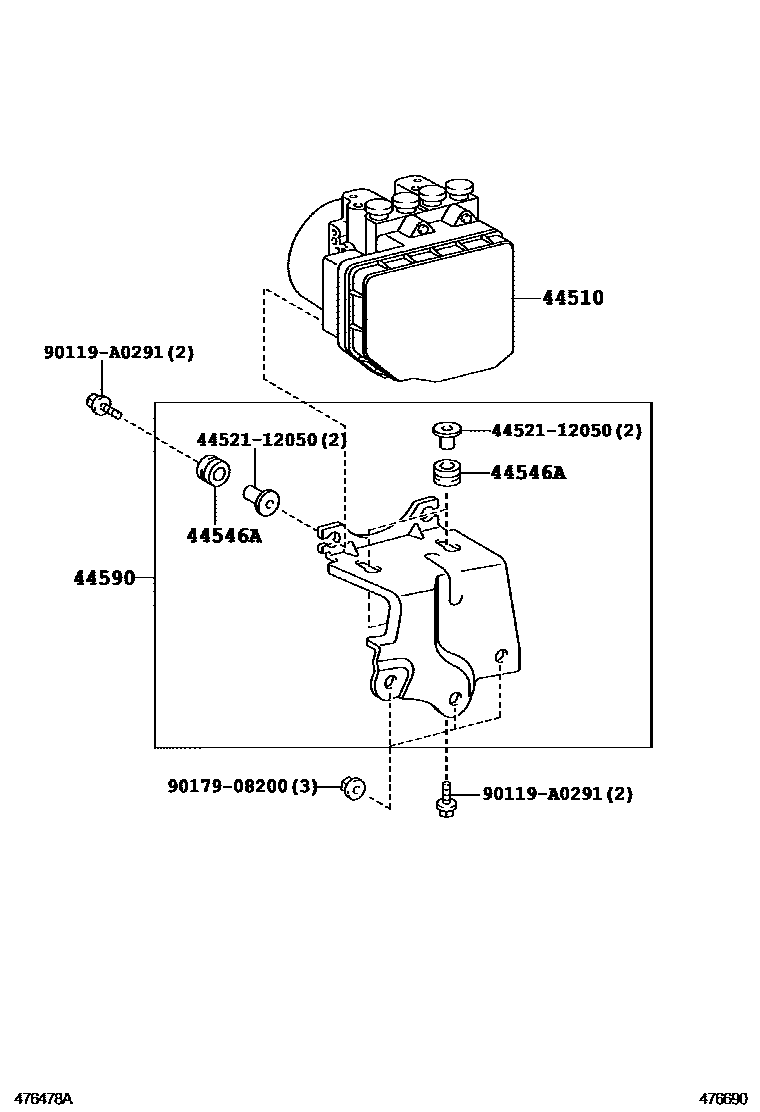

| 44510 | brake actuator assembly | 44050-0R060 · 44050-0R061 · 44050-0R062 · 44050-0R063 · 44050-0R070 · 44050-0R071 · 44050-0R072 · 44050-0R073 · 44050-0R080 · 44050-0R081 · 44050-0R082 · 44050-0R083 · 44050-0R090 · 44050-0R091 · 44050-0R092 · 44050-0R093 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-0R010 |
| 47311 | No. 1 front brake pipe | 47311-0R010 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47312 | No. 2 front brake pipe | 47312-0R010 |
| 47313 | No. 3 front brake pipe | 47313-0R010 |
| 47313A | No. 1 front flexible hose | 90947-A2042 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-A2043 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-0R010 |
| 47317 | No. 7 front brake pipe | 47317-0R010 |
| 47318 | No. 8 front brake pipe | 47318-0R010 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-A2044 |
| 47319F | Left rear flexible hose | 90947-A2045 |
| 47321 | No. 1 rear brake pipe | 47321-0R010 |
| 47322 | No. 2 rear brake pipe | 47322-0R010 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-0R010 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-0R010 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47371B | No. 6 brake pipe clamp | 77299-32030 |
| 47371C | No. 7 brake pipe clamp | 90461-10781 |
| 47371D | No. 8 brake pipe clamp | 90469-07020 |
| 47371E | No. 9 brake pipe clamp | 90469-07019 |
| 47371F | No. 10 brake pipe clamp | 90949-01D29 |
| 47372 | No. 2 brake pipe clamp | 90464-00890 |
| 47373B | No. 3 brake pipe clamp | 90949-01C82 |
| 47374B | No. 4 brake pipe clamp | 90949-01D05 |
