Toyota RAV4 制动总泵 — Figure 4702

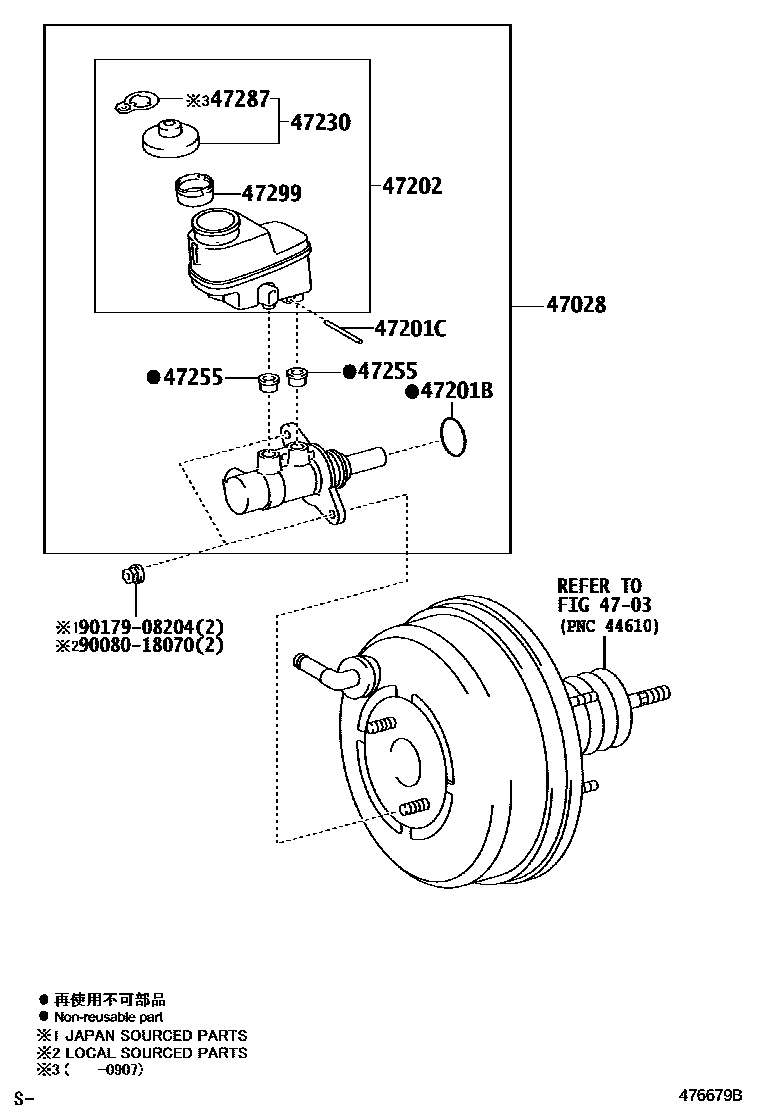

Toyota RAV4 EPC diagram 4702, 制动总泵, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47028 | Brake master cylinder sub-assembly | 47201-0R070 · 47201-0R080 · 47201-0R082 · 47201-42340 · 47201-42380 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-0R050 · 47220-42100 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-01030 · 47230-20140 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 |
