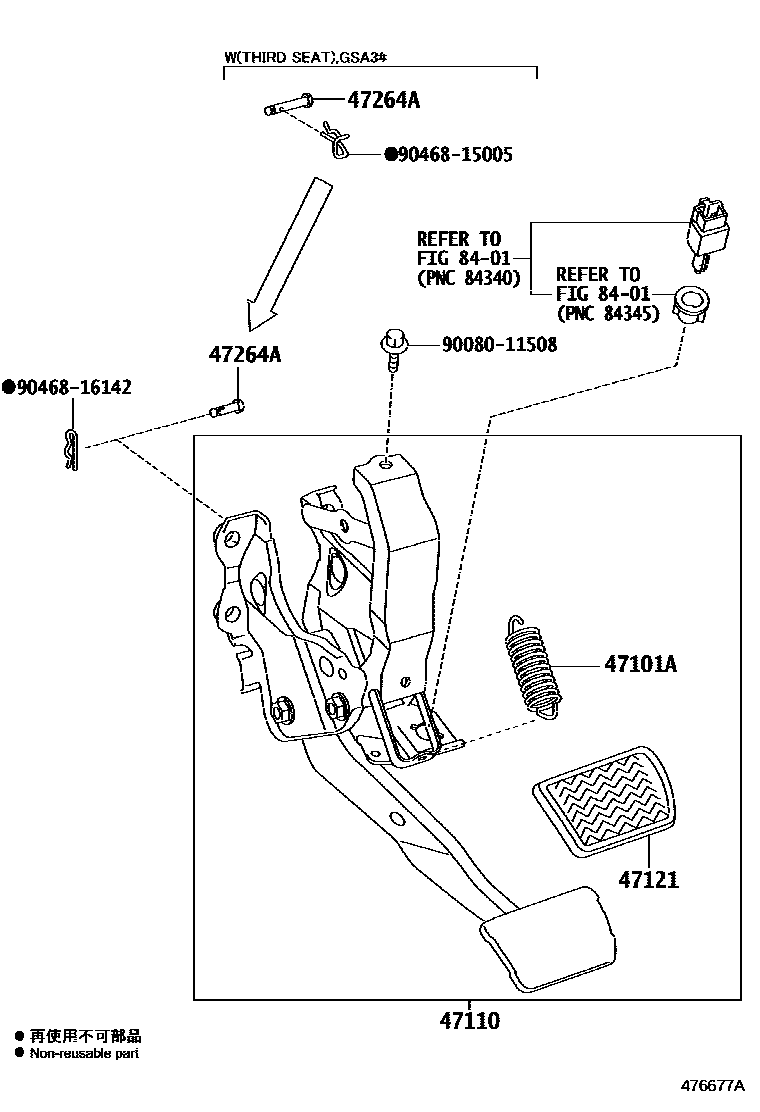

Toyota RAV4 Brake Pedal & Bracket — Figure 4701
Toyota RAV4 EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 47146-42020 |
| 47110 | Brake pedal bracket assembly | 47110-0R010 · 47110-0R011 · 47110-0R020 · 47110-0R021 |
| 47121 | brake pedal pad | 47121-42010 |
| 47264A | Pin (for push rod) | 90249-06180 · 90249-08256 |
