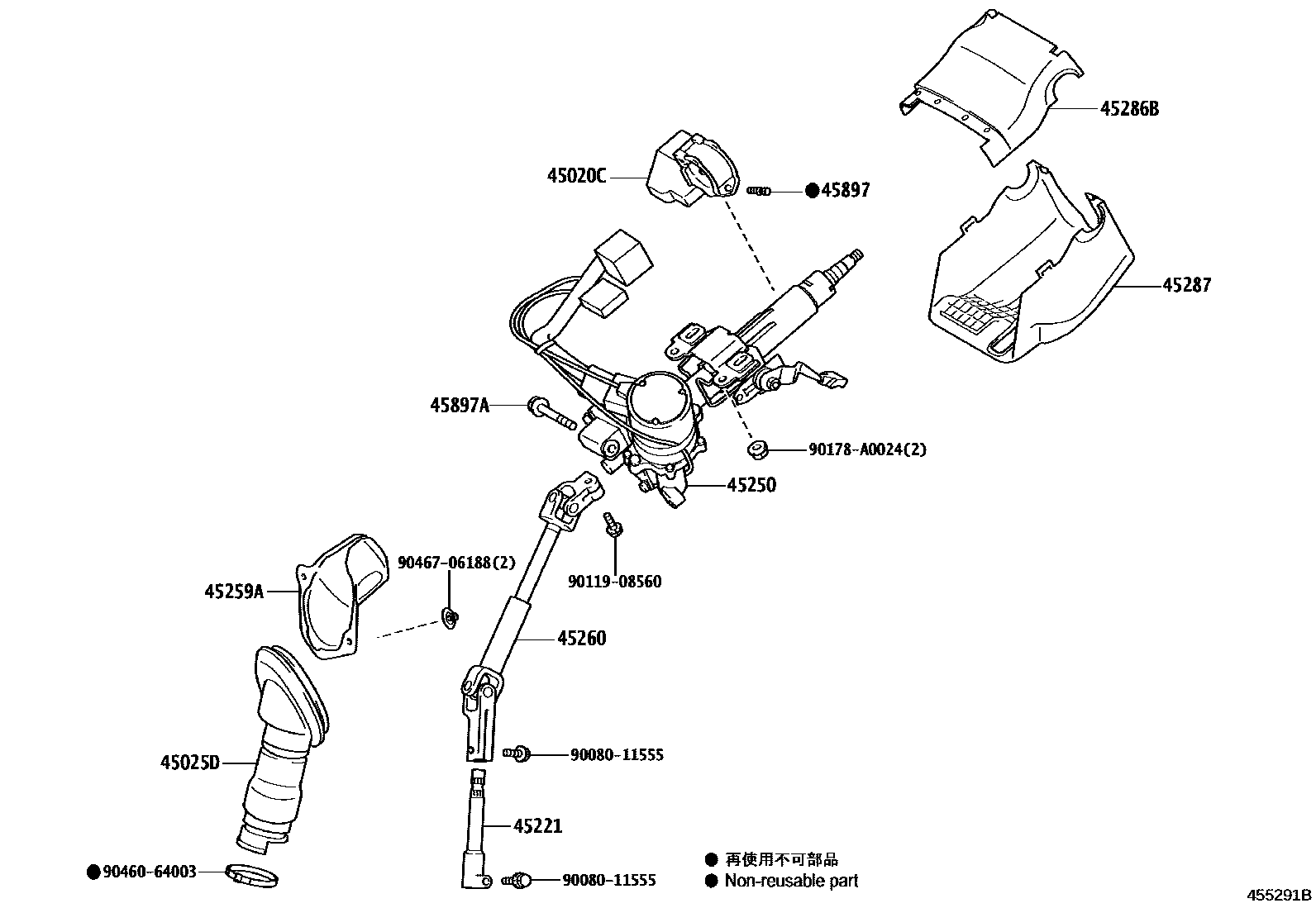

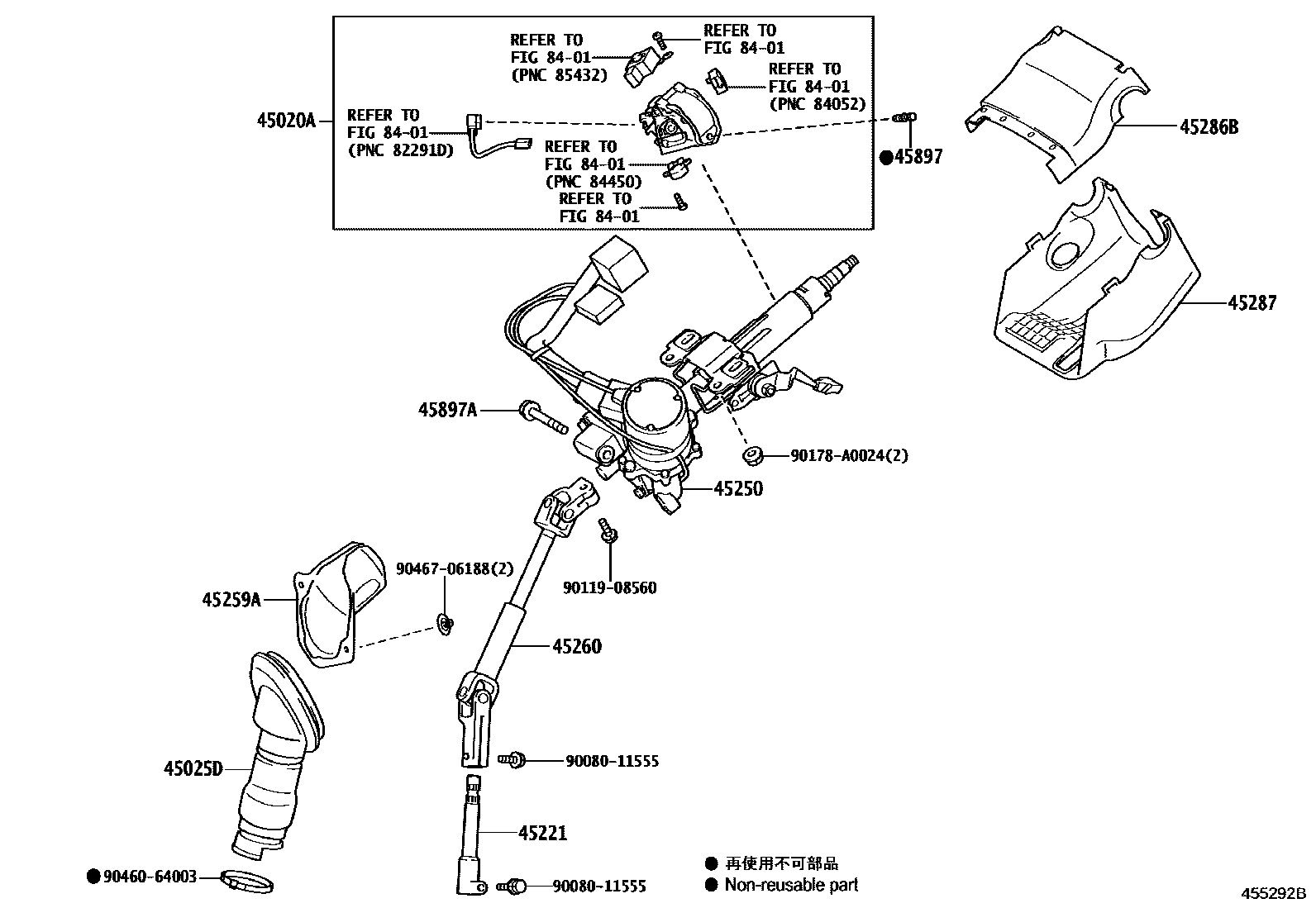

Toyota RAV4 Steering Column & Shaft — Figure 4501
Toyota RAV4 EPC diagram 4501, Steering Column & Shaft, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020A | Steering lock actuator assembly | 45020-02290 |
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-02330 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0R020 · 45025-42080 |
| 45221 | steering intermediate shaft | 45221-42070 |
| 45250 | Steering column assembly | 45250-42290 · 45250-42291 · 45250-42300 · 45250-42301 |
| 45259A | Steering column hole cover silencer plate | 45259-0R010 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-42090 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 |
