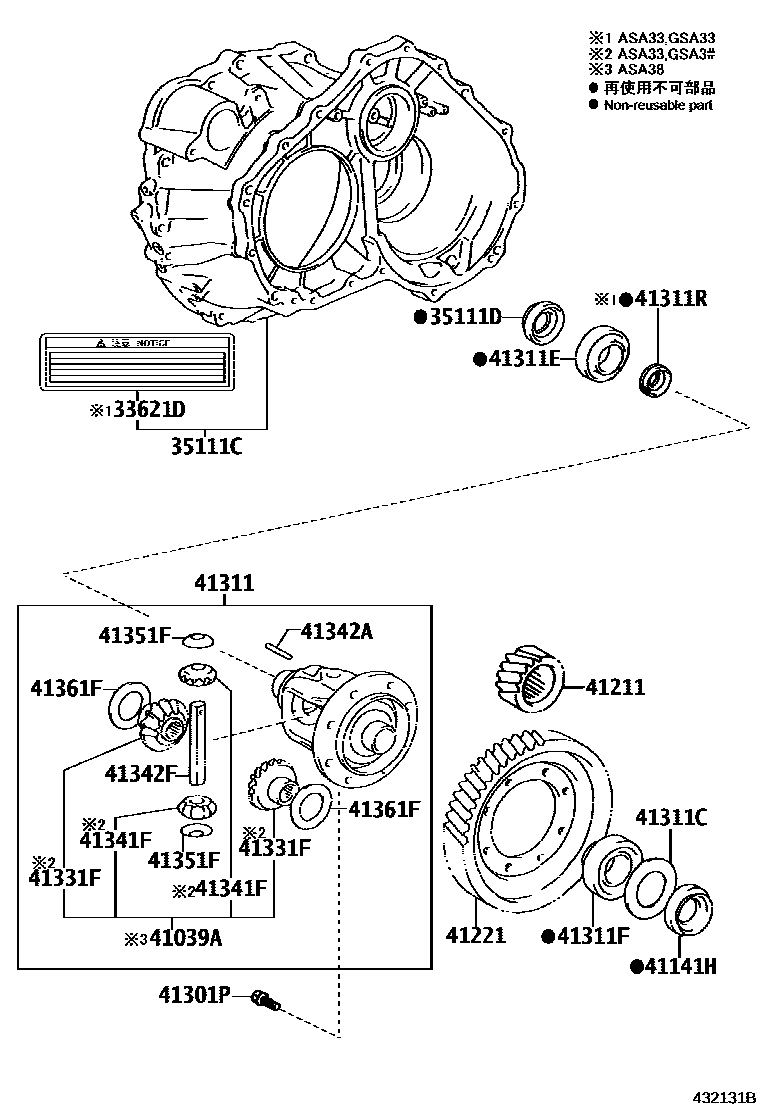

Toyota RAV4 前桥壳和差速器 — Figure 4301
Toyota RAV4 EPC diagram 4301, 前桥壳和差速器, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33621D | Transaxle oil information label | 33621-42010 |
| 35111C | Transmission axle housing | 35105-28032 · 35105-28044 · 35105-42021 · 35105-42031 |
| 35111D | Oil seal (for transaxle housing) | 90311-40029 · 90311-40031 · 90311-40038 · 90311-55005 |
| 41039A | Differential gear assembly | 41039-28020 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-50036 · 90311-50037 · 90311-50048 · 90311-50052 |
| 41211 | Differential drive pinion | 41211-28080 · 41211-42010 · 41211-42050 |
| 41221 | Front differential ring gear | 41221-28100 · 41221-42100 · 41221-42150 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-28090 · 41301-28100 · 41301-33080 · 41301-42120 · 41301-42170 · 41301-42180 |
| 41311C | Rear gasket (for front differential case) | 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 · 90564-79001 · 90564-79002 · 90564-79003 · 90564-79004 · 90564-79005 · 90564-79006 · 90564-79007 · 90564-79008 · 90564-79009 · 90564-79010 · 90564-79011 · 90564-79012 · 90564-79013 · 90564-79014 · 90564-79015 · 90564-79016 · 90564-79017 · 90564-79018 · 90564-79090 · 90564-79091 · 90564-79092 · 90564-79093 · 90564-79094 · 90564-79095 · 90564-79096 · 90564-79097 · 90564-79098 · 90564-79099 · 90564-79100 · 90564-79101 · 90564-79102 · 90564-79103 · 90564-79104 · 90564-79105 · 90564-79106 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-50075 · 90366-50106 · 90366-62004 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50078 · 90366-50106 |
| 41311R | Oil seal (for front differential case) | 90316-34001 |
| 41331F | Front differential side gear | 41331-48050 · 41331-48070 |
| 41341F | Front differential planetary gear | 41341-48040 · 41341-48060 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-28020 · 41342-28030 |
| 41351F | Front differential planetary gear thrust washer | 41351-28010 · 41351-33011 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 · 41361-33010 · 41362-33080 · 41363-33010 |
