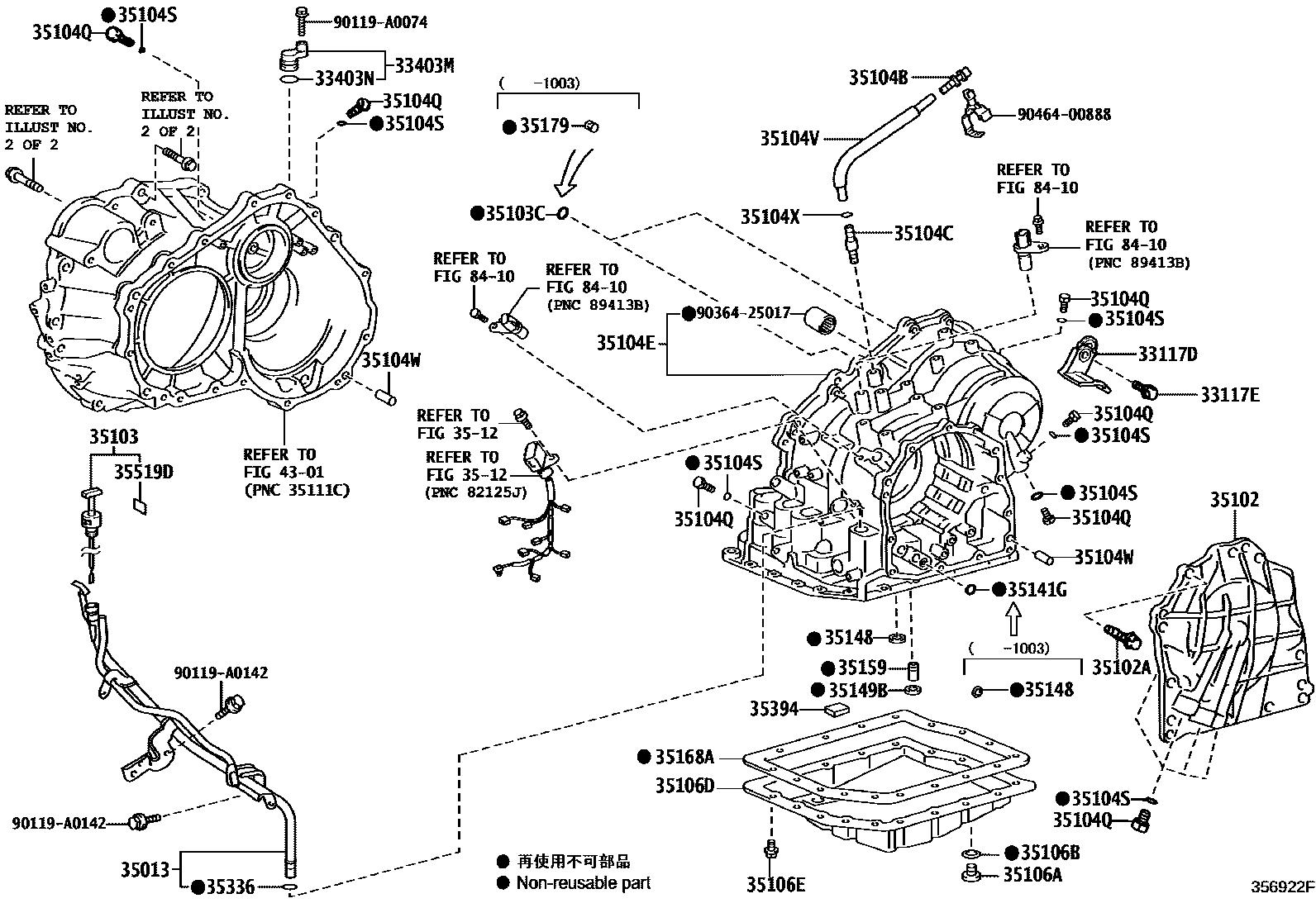

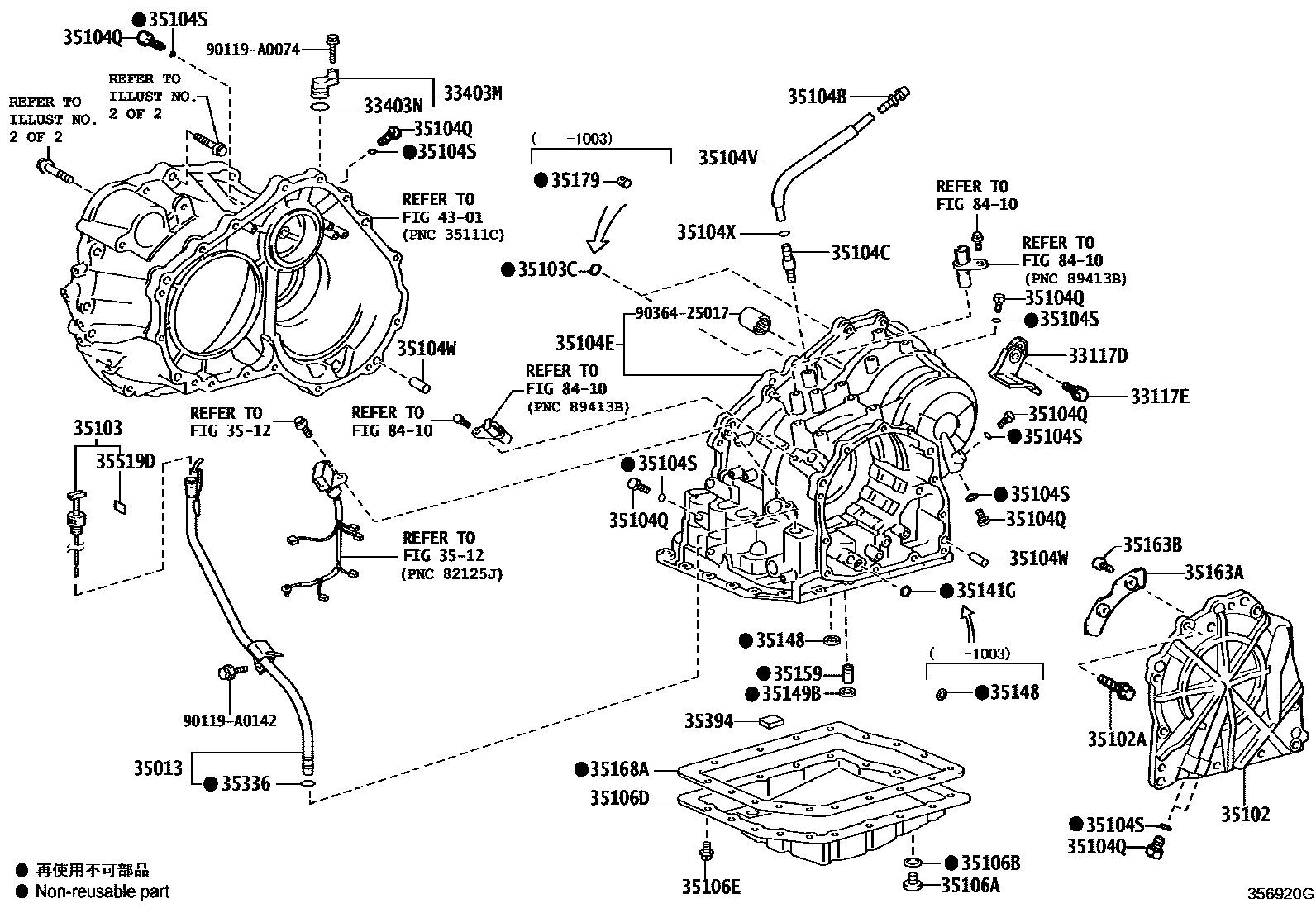

Toyota RAV4 变速器壳和油底壳(ATM) — Figure 3503
Toyota RAV4 EPC diagram 3503, 变速器壳和油底壳(ATM), with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

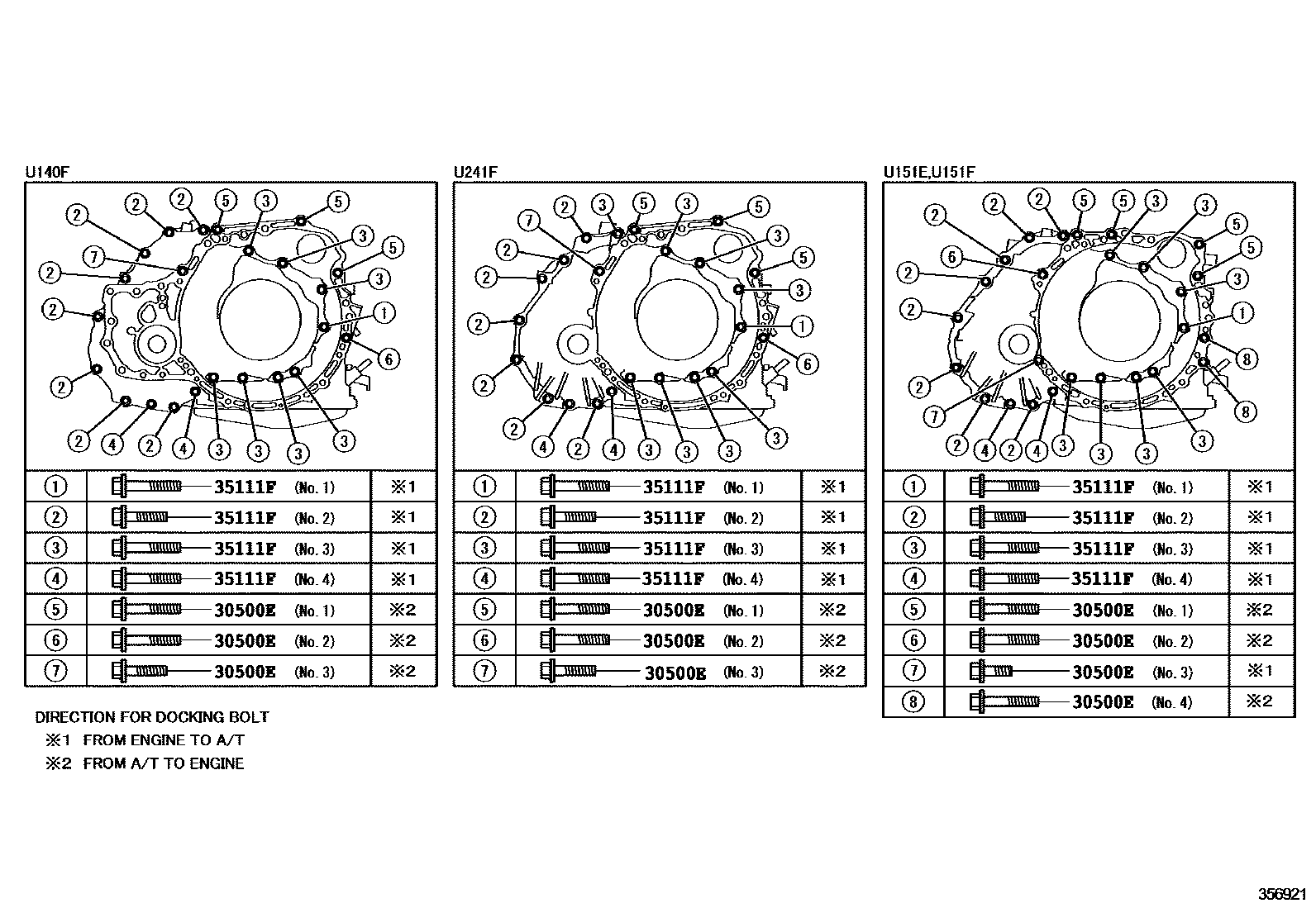

| 30500E | Bolts (for securing transaxle and engine) | 90080-10207 · 90080-10299 · 90080-11310 · 90080-11604 · 90105-10425 · 90119-12019 · 90119-12168 · 90119-12250 · 91512-61050 · 91512-61065 |
| 33117D | automatic transmission guard plate | 33117-0R010 · 33117-28020 |
| 33117E | Bolts (for automatic transmission guard) | 91641-H0820 |
| 33403M | Speedometer driven gear hole cover sub-assembly (ATM) | 33403-0E020 · 33403-20230 · 33403-21020 |
| 33403N | O-ring (for automatic transmission speedometer driven gear hole cover) | 96711-24018 · 96711-24020 |
| 35013 | Transmission oil pipe sub-assembly | 35013-42090 · 35013-42110 |
| 35102 | Transmission axle rear cover sub-assembly | 35102-20060 · 35102-42010 · 35102-42020 |
| 35102A | Bolts (for fixing the transmission axle rear cover) | 90105-08071 |
| 35103 | Transmission oil level scoring assembly | 35103-0R010 · 35103-0R020 · 35103-0R021 · 35103-0R030 |
| 35103C | O-ring | 90301-06008 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03149 |
| 35104C | Ventilation plug No. 2 (ATM) | 90930-03157 · 90930-03183 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-28082 · 35104-28083 · 35104-28092 · 35104-28093 · 35104-33042 · 35104-33043 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104V | Hoses (for breather plug) | 35121-21020 |
| 35104W | Direct sales (for transmission axle housing) | 90250-10034 |
| 35104X | O-ring (for breather plug) | 90301-06005 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-18016 |
| 35106B | Drain plug gasket (ATM) | 90430-18008 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-28090 · 35106-33040 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 90105-06320 · 90105-08066 · 90105-08233 · 90105-08353 |
| 35141G | O-ring (for automatic transmission) | 90301-10189 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35145-21010 |
| 35149B | Transaxle housing second gear brake pad | 35149-21010 |
| 35159 | brake drum gasket | 35159-21010 |
| 35163A | Transmission axle rear cover | 35163-28010 |
| 35163B | Hexalobular screws (for transaxle rear cover) | 90148-60055 |
| 35168A | Automatic transaxle oil pan gasket | 35168-21011 |
| 35179 | overdrive brake pad | 35179-32010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-48010 |
| 35519D | Automatic transmission information label | 35519-41010 |
