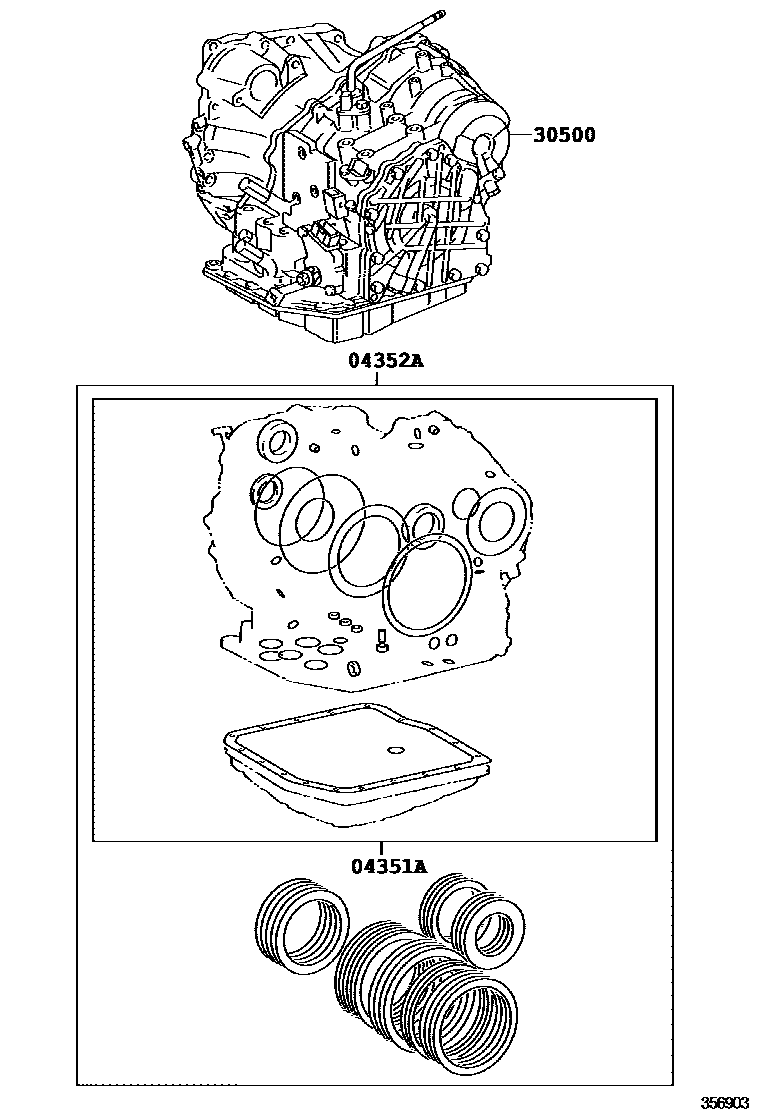

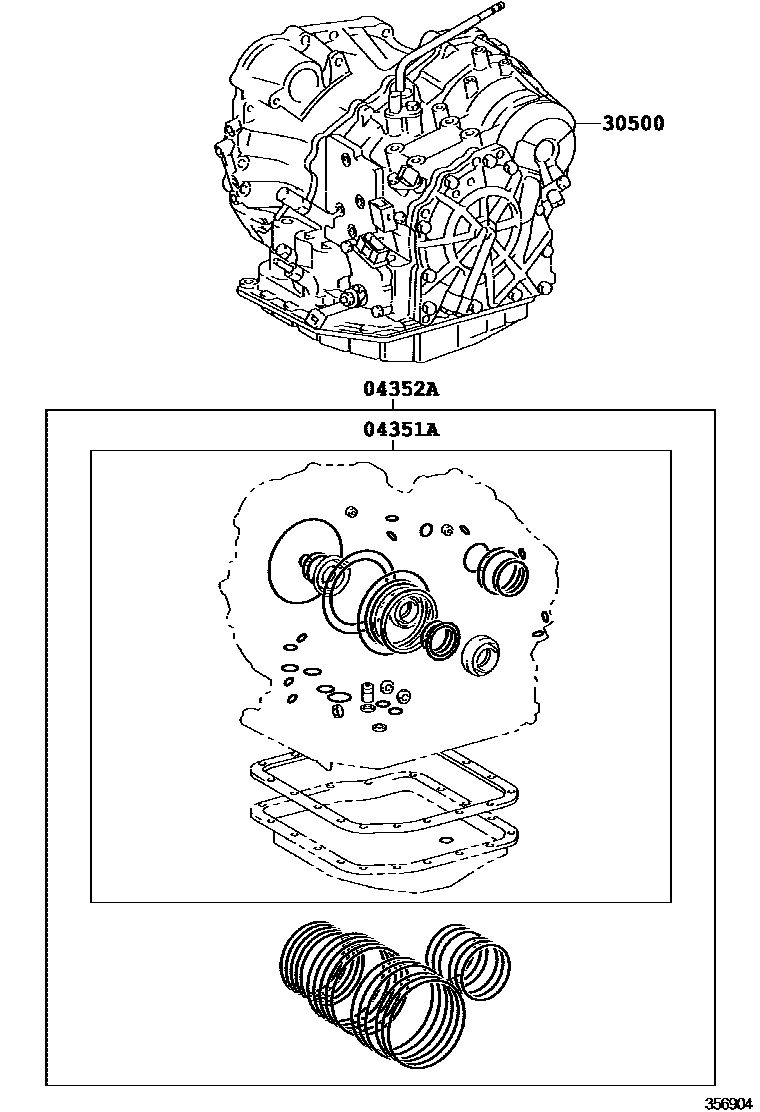

Toyota RAV4 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota RAV4 EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-12780 · 04351-33240 · 04351-42051 · 04351-42080 · 04351-42130 · 04351-48090 · 04351-48091 |
| 04352A | Transaxle Overhaul Kit (ATM) | 04352-12780 · 04352-33110 · 04352-42061 · 04352-42081 · 04352-42100 · 04352-42180 · 04352-48160 · 04352-48161 |
| 30500 | Automatic transmission axle assembly | 30500-12C90 · 30500-42191 · 30500-42201 · 30500-42202 · 30500-42260 · 30500-42330 |
