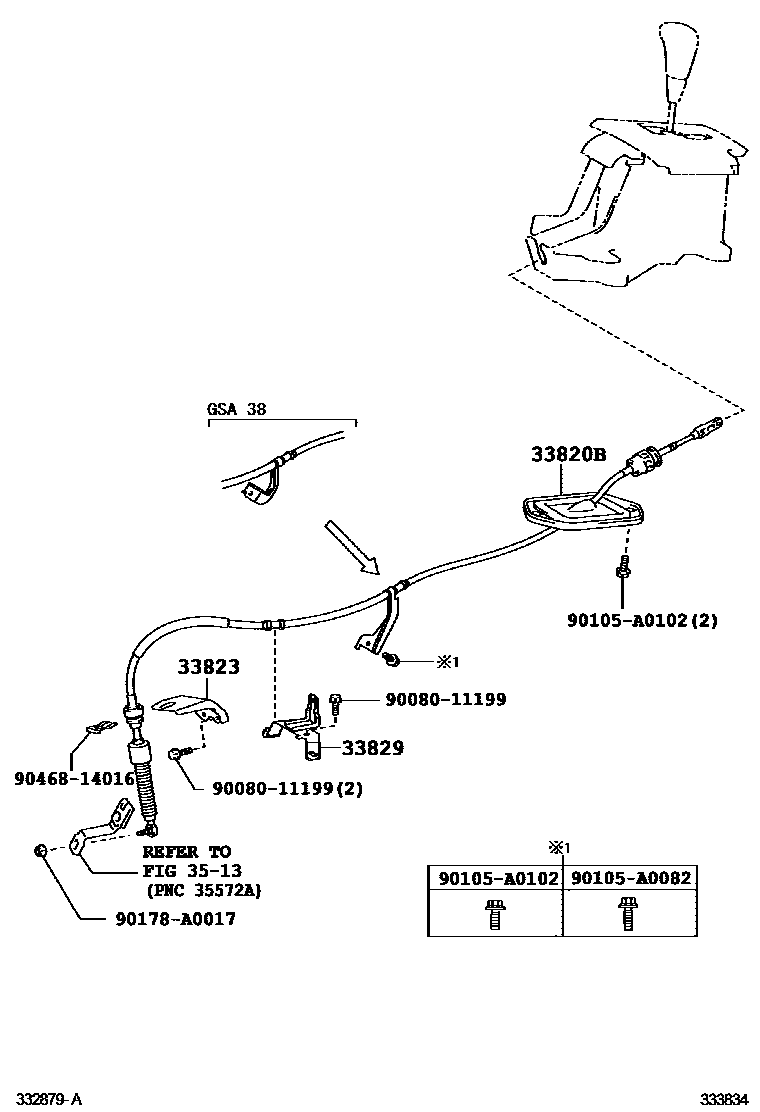

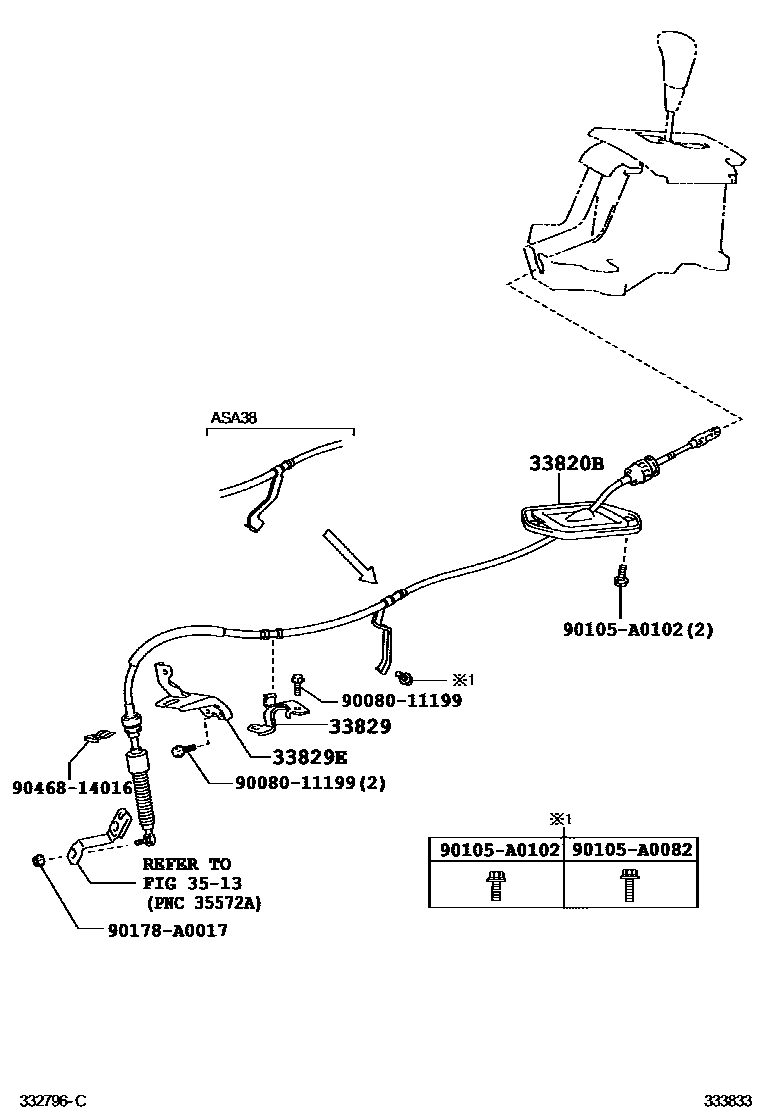

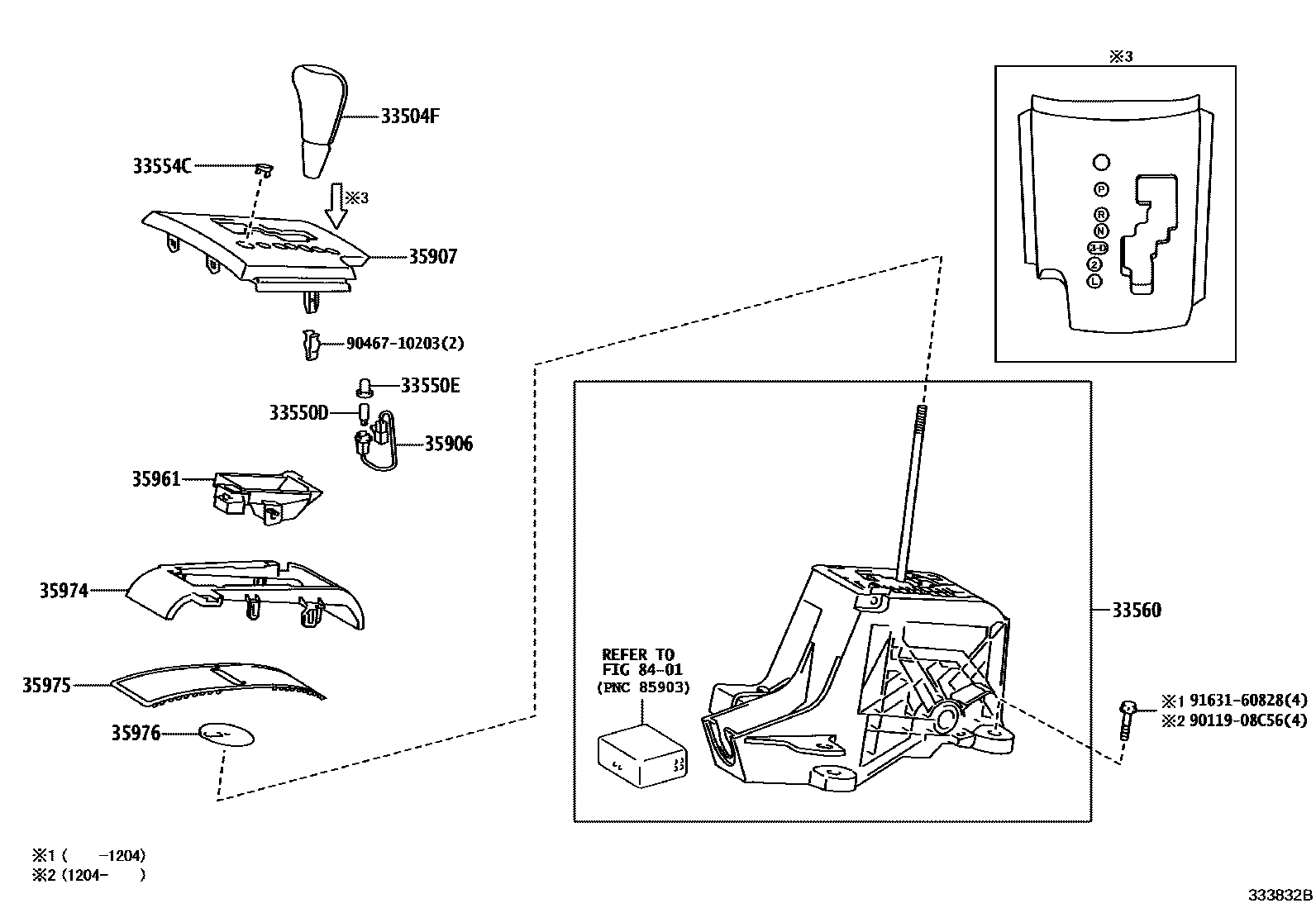

Toyota RAV4 Shift Lever & Retainer — Figure 3312
Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04071 |
| 33554C | Shift lock release button cover | 33554-0R010 |
| 33560 | Shift lock control unit assembly | 33560-0R020 · 33560-0R030 |
| 33820B | Transmission control cable assembly | 33820-0R010 · 33820-0R020 · 33820-0R030 · 33820-0R040 |
| 33823 | No. 1 transmission control cable bracket | 33823-0R010 |
| 33829 | Transmission control cable bracket | 33829-0R010 · 33829-0R030 |
| 33829E | Transmission control cable bracket | 33829-0R050 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-42050 · 35906-42060 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-0R010 · 35907-0R020 |
| 35961 | position indicator housing | 35961-0R010 |
| 35974 | Position indicator light lower shell | 33560-0R040 |
| 35975 | Slide cover (for position indicator light) | 35975-0R010 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-0R010 |
