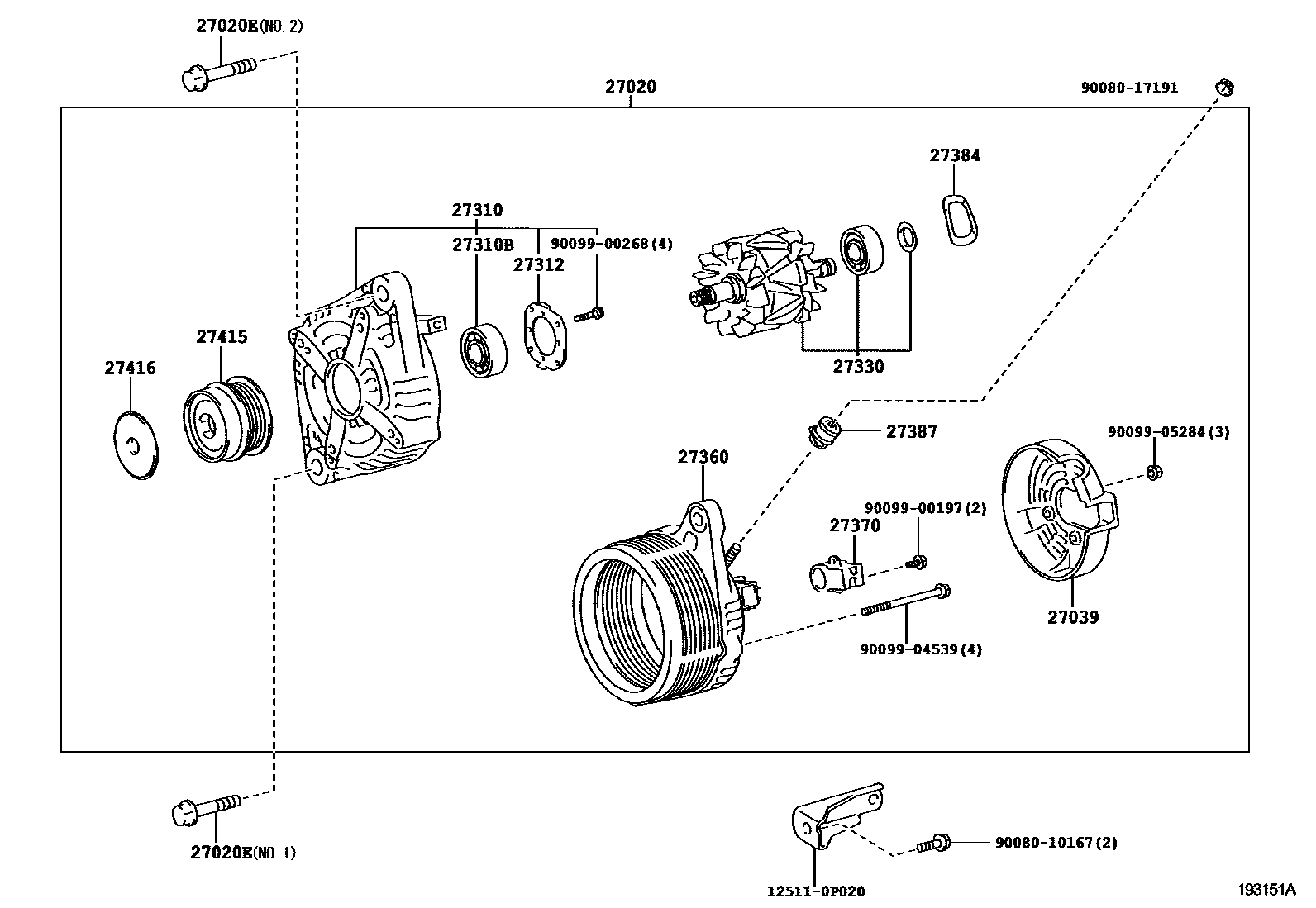

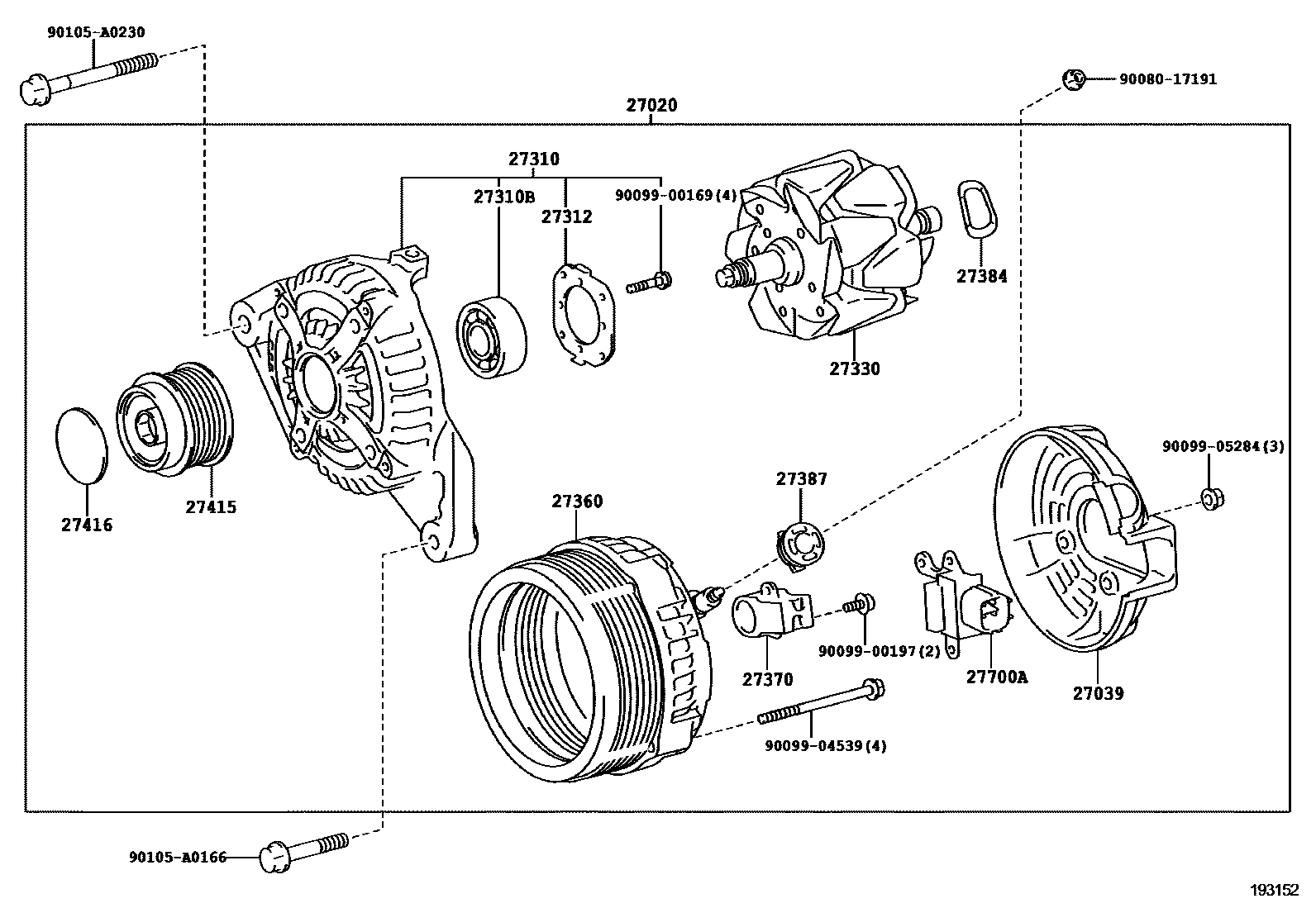

Toyota RAV4 Alternator — Figure 1903
Toyota RAV4 EPC diagram 1903, Alternator, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0P141 · 27060-0P241 · 27060-0V010 |
| 27020E | Bolts (for generator) | 90105-A0129 · 90105-A0166 |
| 27039 | Alternator Rear End Cover | 27039-0A110 · 27039-0T040 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0P140 · 27310-0V010 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0A110 · 27330-0F060 |
| 27360 | Alternator Stator Coil Assembly | 27360-0P140 · 27360-0P240 · 27360-0V010 |
| 27370 | Alternator Brush Holder Assembly | 27370-0P020 |
| 27384 | Washer | 27384-0A020 |
| 27387 | Terminal Insulator | 27387-0V060 · 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W020 · 27415-0W130 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27700A | Generator voltage regulator assembly | 27700-0V030 · 27700-20090 |
