Toyota RAV4 点火线圈和火花塞 — Figure 1901

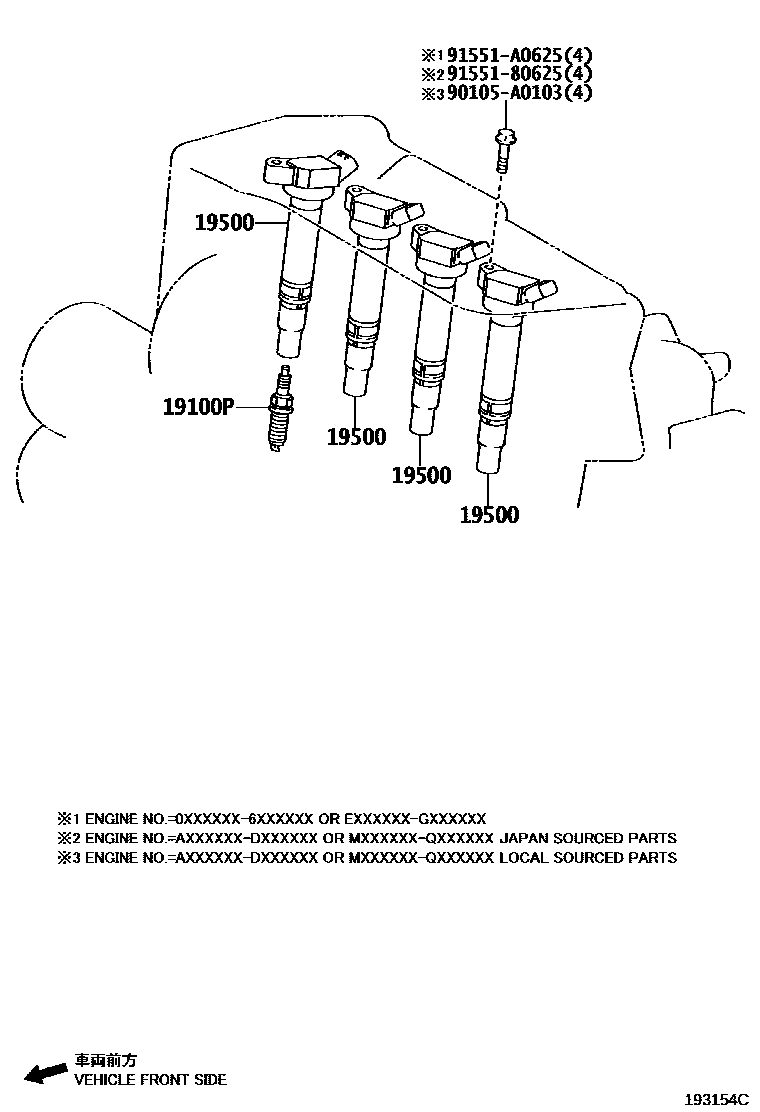

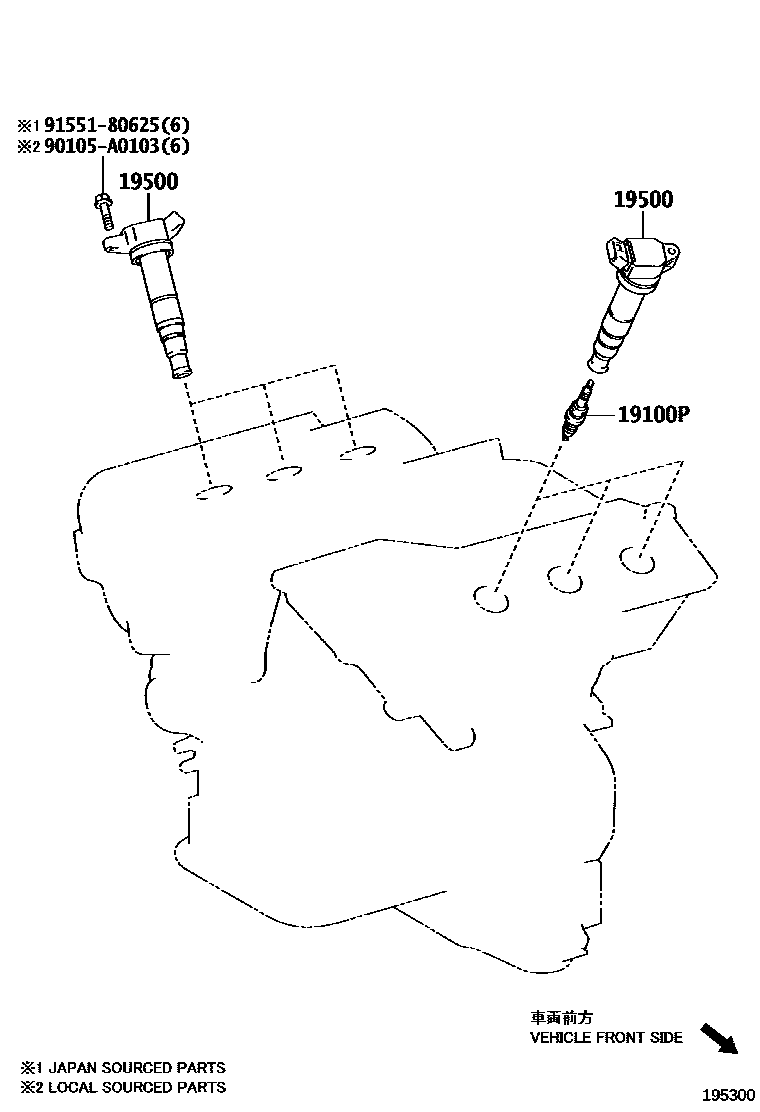

Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01233 · 90919-01247 · 90919-A1003 |
| 19500 | Ignition coil assembly | 90919-02251 · 90919-02255 · 90919-02256 · 90919-A2004 · 90919-A2005 · 90919-A2007 |
