Toyota RAV4 Exhaust Pipe — Figure 1702

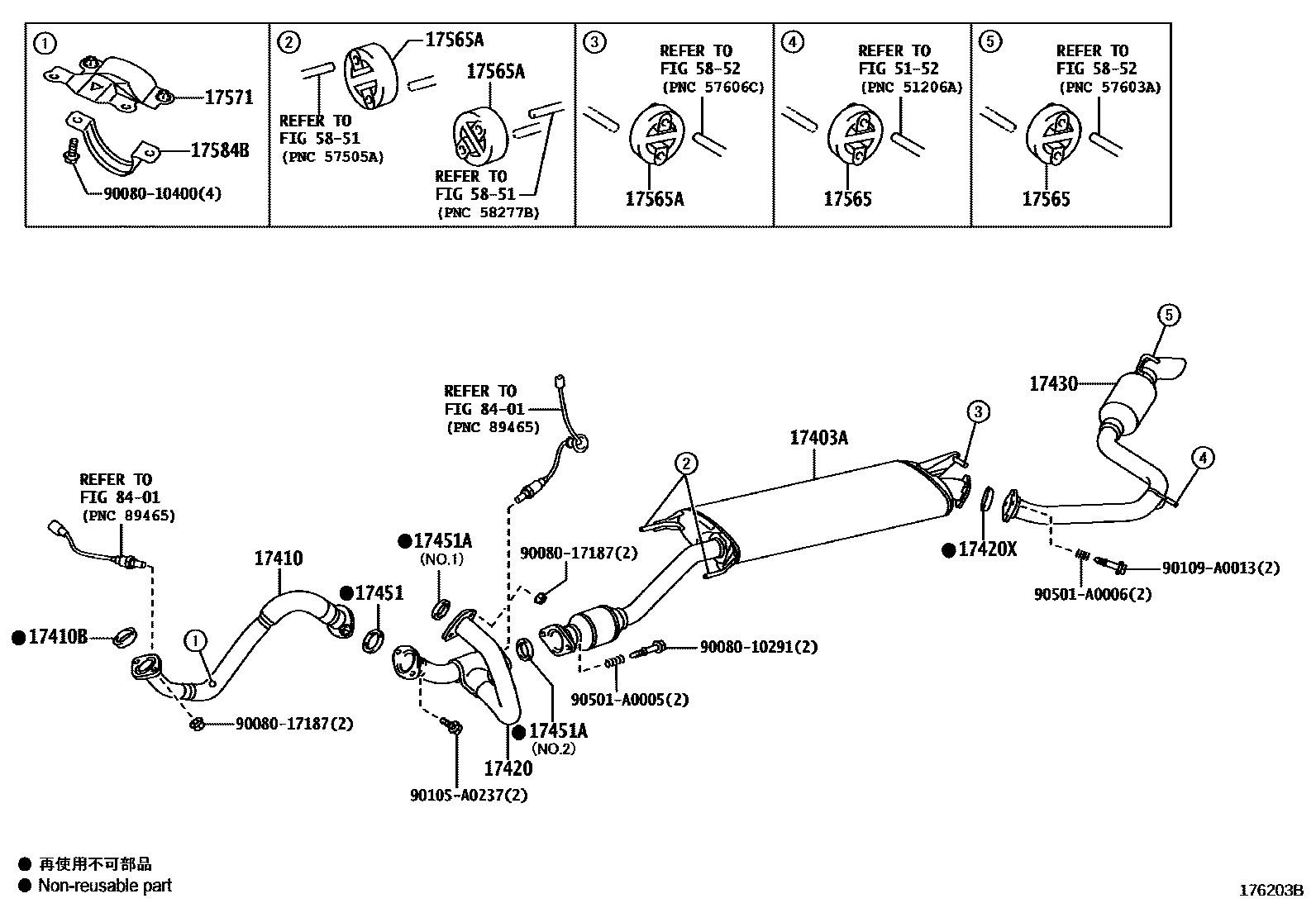

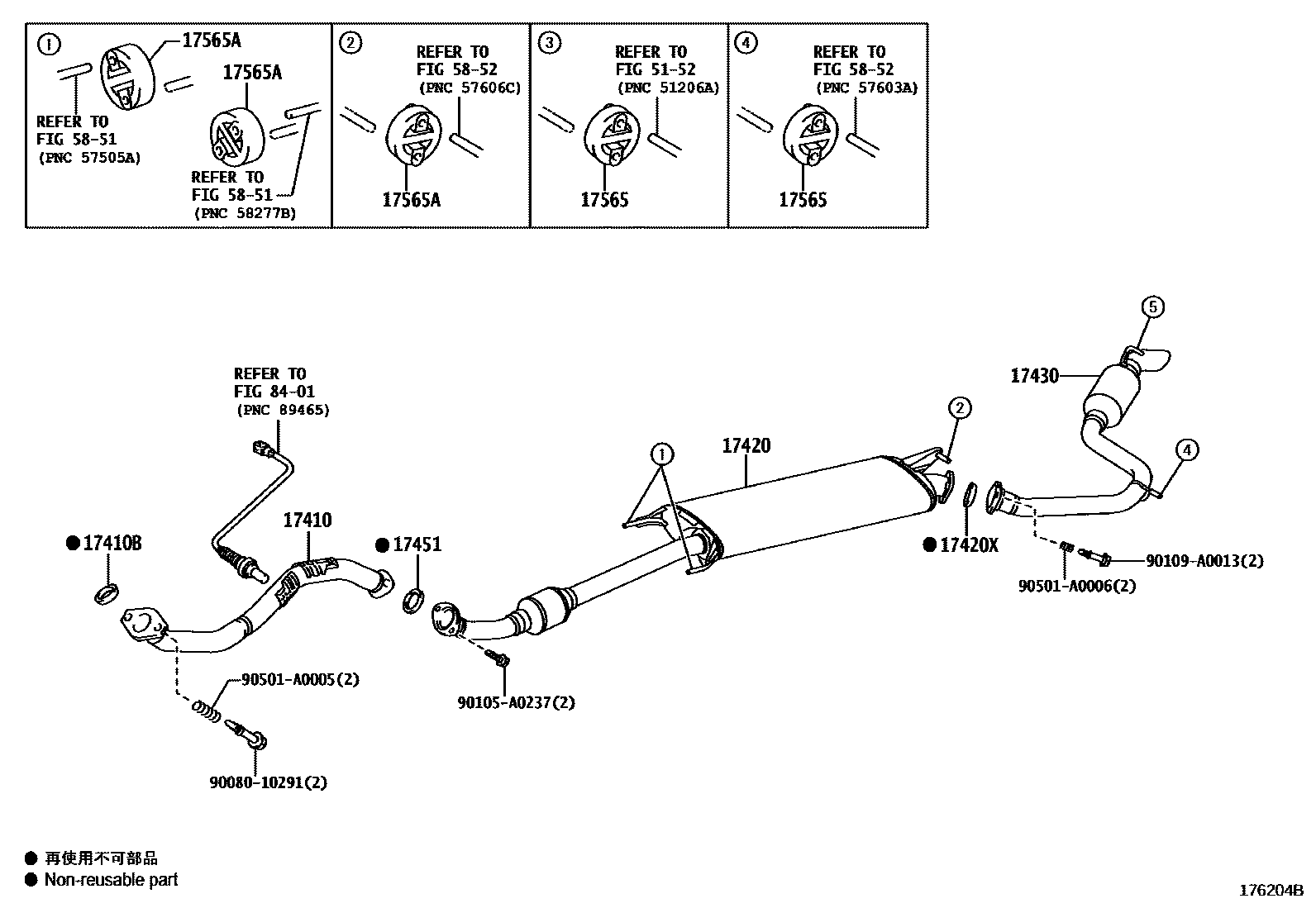

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17403A | No. 2 central exhaust pipe sub-assembly | 17404-0P020 · 17404-0P021 · 17404-0P022 |
| 17410 | Front exhaust pipe assembly | 17410-0P240 · 17410-0P241 · 17410-0V020 · 17410-0V021 |
| 17410B | Exhaust pipe gasket | 17451-0D150 · 90917-06089 |
| 17420 | Central exhaust pipe assembly | 17403-0P080 · 17403-0P081 · 17420-0V020 · 17420-0V021 · 17420-0V022 · 17420-0V070 · 17420-0V071 · 17420-0V072 |
| 17420X | Center exhaust pipe liner | 17451-0P021 · 17451-0P022 |
| 17430 | Exhaust tailpipe assembly | 17430-0P190 · 17430-0P191 · 17430-0V020 · 17430-0V021 |
| 17451 | Exhaust pipe gasket | 90917-06078 |
| 17451A | No. 2 exhaust pipe gasket | 17451-0D140 · 90917-06089 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0P030 · 17565-0P031 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0P040 · 17565-0P041 |
| 17571 | No. 1 exhaust pipe bracket | 17571-0P120 |
| 17584B | No. 1 exhaust pipe bracket | 17584-0P130 |
