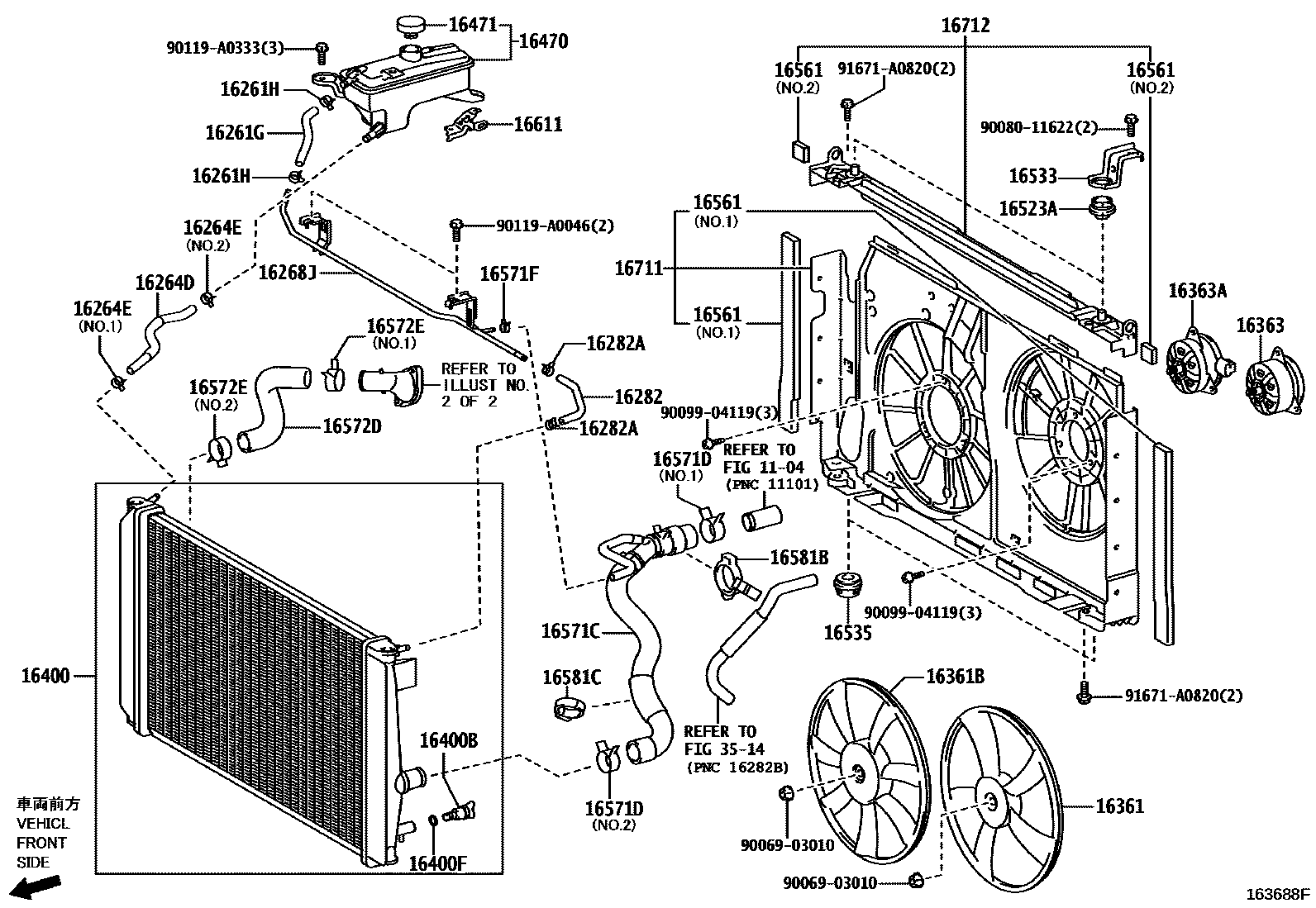

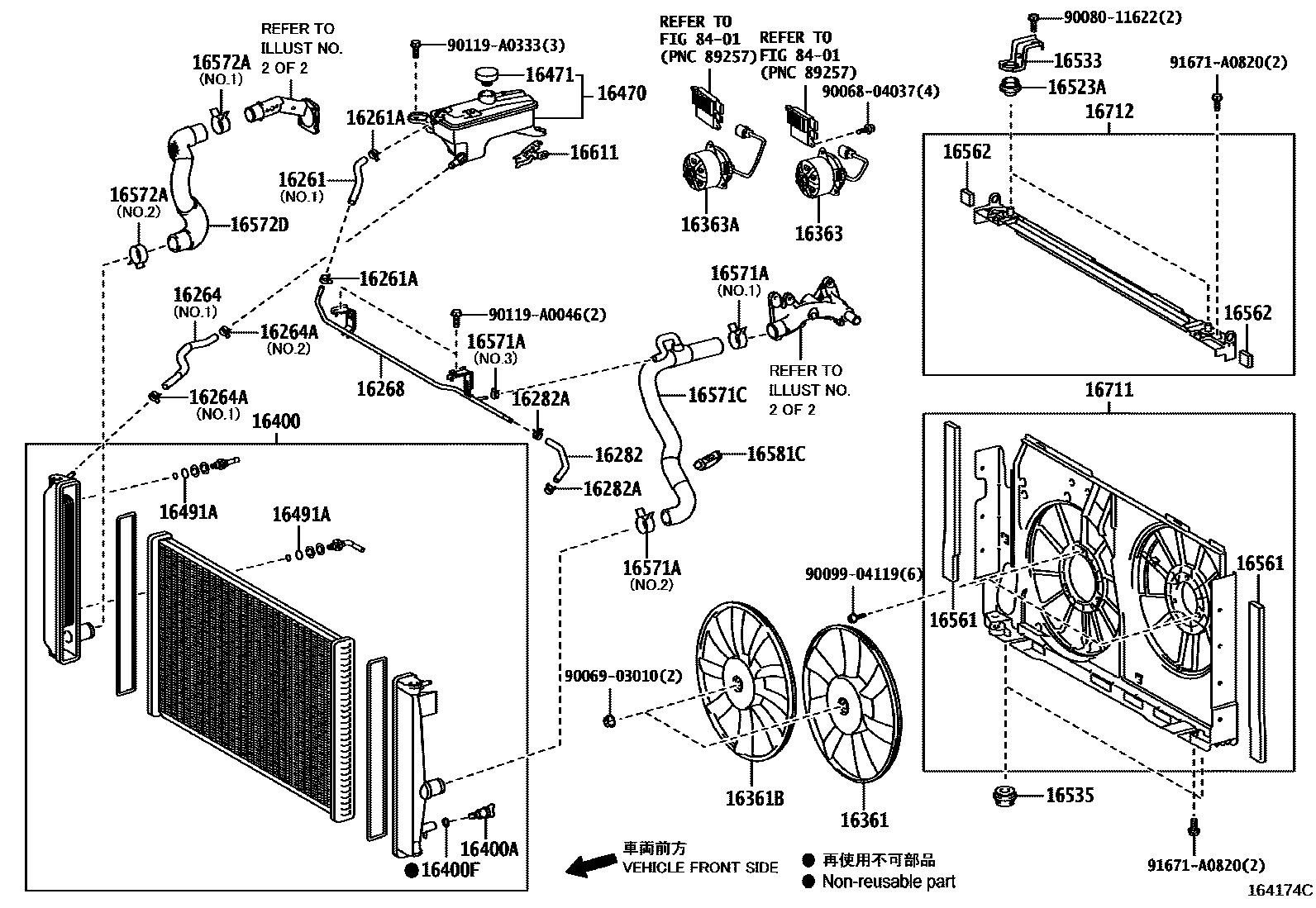

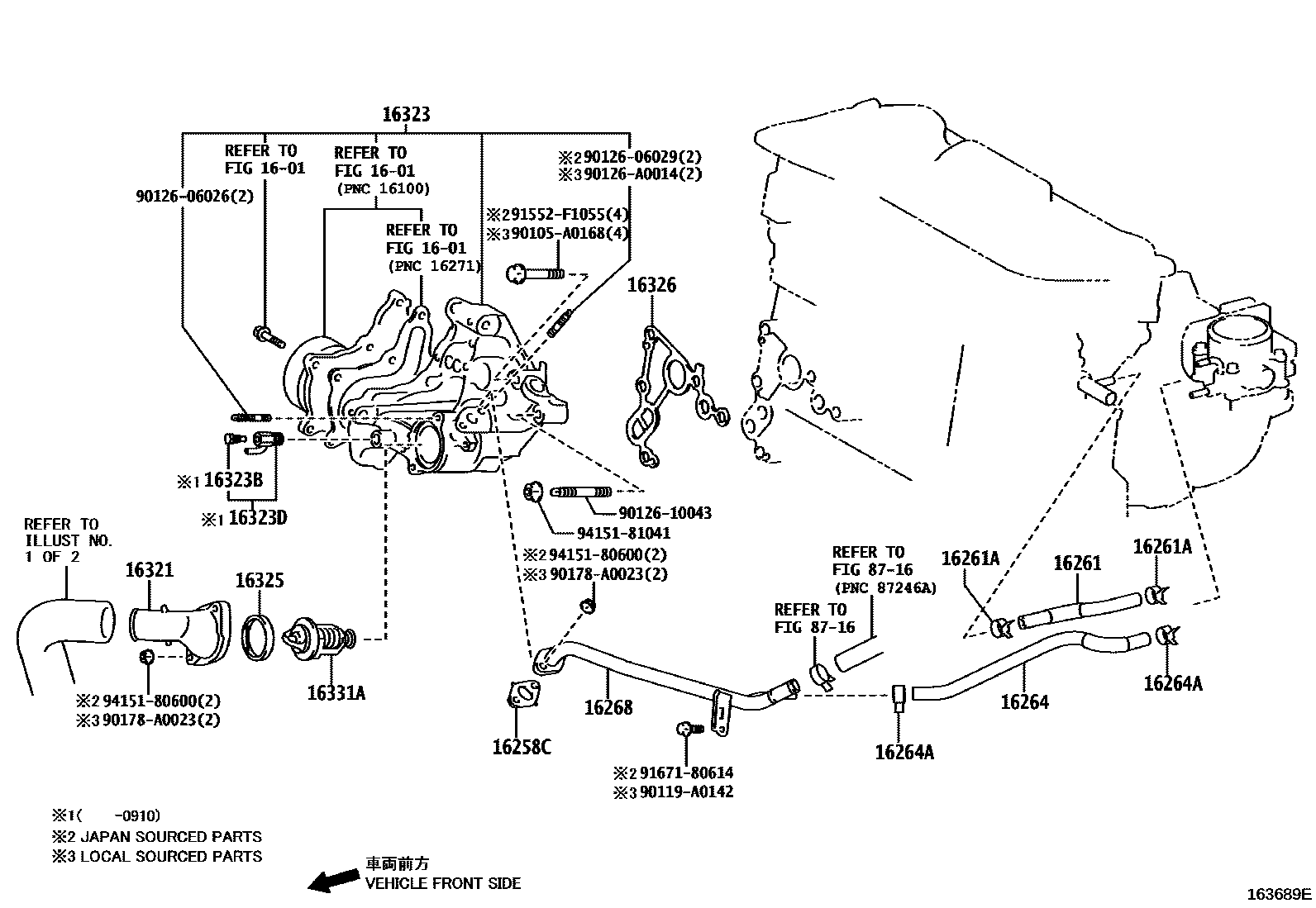

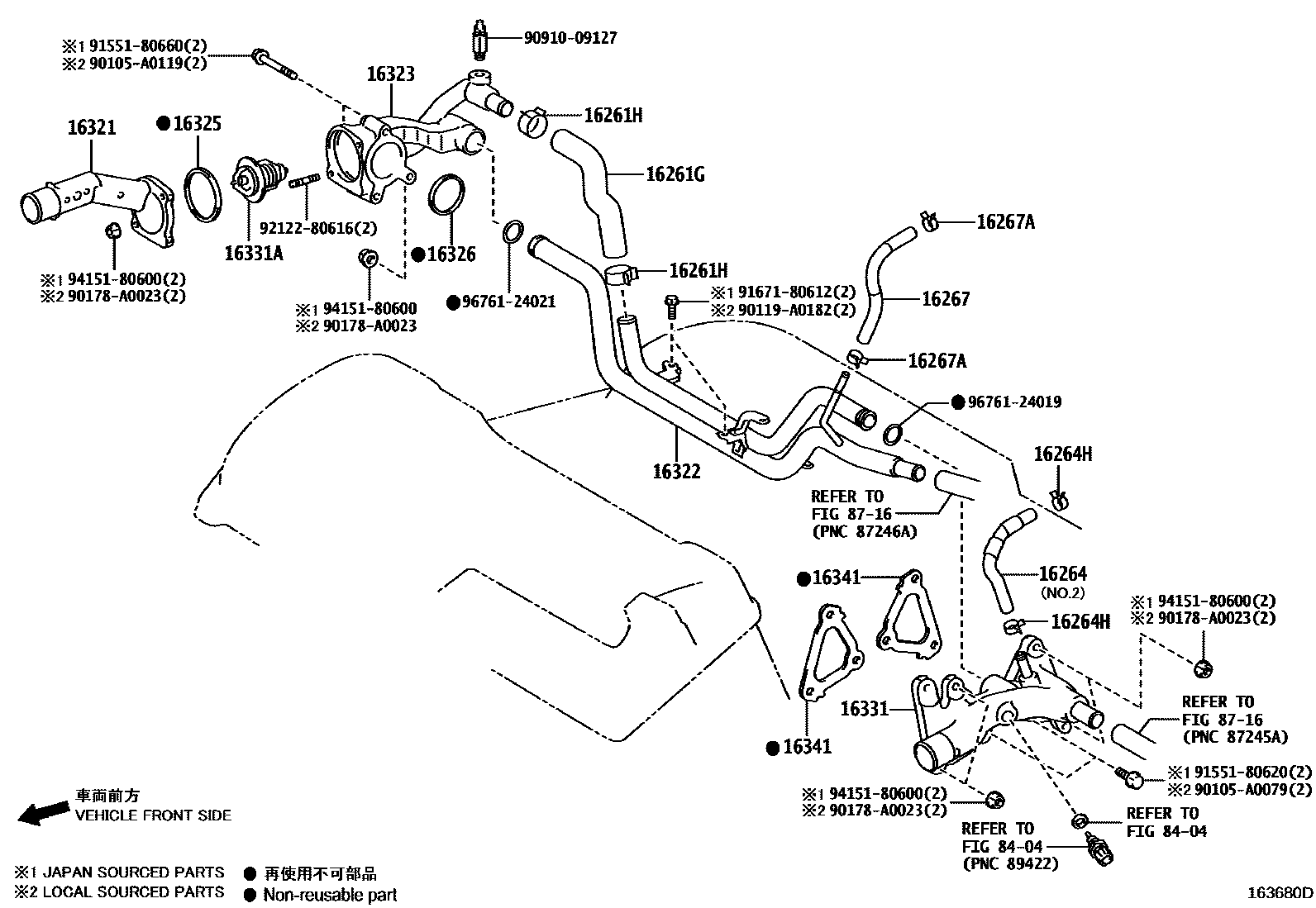

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258C | Gasket (for water bypass pipe) | 16258-0H010 · 16258-36010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0V020 · 16261-28070 · 16261-36010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-A0017 · 90467-15022 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0P030 · 16261-28070 · 16261-31050 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-A0015 · 90467-15022 · 96136-42701 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0P031 · 16264-0V020 · 16264-28090 · 16264-36010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 · 90467-15022 · 96134-51700 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-28090 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96134-51700 |
| 16264H | Clamp (for No. 3 water bypass hose) | 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0P020 · 16267-31040 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-A0017 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0V080 · 16268-31011 · 16268-36010 |
| 16268J | No. 5 water bypass pipe | 16268-31011 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-28120 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-15022 |
| 16321 | water inlet | 16321-0P010 · 16321-0V010 · 16321-31011 · 16321-31030 · 16321-36010 |
| 16322 | PIPE, WATER INLET | 16322-0P010 · 16322-31010 · 16322-31020 |
| 16323 | HOUSING, WATER INLET | 16032-0V011 · 16032-36010 · 16032-36011 · 16323-0P030 · 16323-31040 |
| 16323B | Screw plug (for water inlet housing) | 90910-09087 |
| 16323D | Water discharge switch assembly (for water inlet shell) | 90910-09129 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-0P020 · 16325-31010 · 16326-36010 |
| 16331 | Water outlet | 16331-31140 |
| 16331A | thermostat | 90916-03129 · 90916-03140 · 90916-A3002 · 90916-A3003 |
| 16341 | GASKET, WATER OUTLET | 16341-31010 · 16341-AD010 |
| 16361 | Fan | 16361-0P130 · 16361-0V010 |
| 16361B | Fan No. 2 | 16361-0P140 · 16361-0V020 |
| 16363 | cooling fan motor | 16363-0P120 · 16363-0V030 · 16363-31130 |
| 16363A | Cooling fan motor No. 2 | 16363-0P140 · 16363-0V040 · 16363-31120 |
| 16400 | Radiator assembly | 16400-0P230 · 16400-0P240 · 16400-0V030 |
| 16400A | Radiator drain switch sub-assembly | 16417-21280 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16470 | Radiator reservoir assembly | 16470-0V010 |
| 16471 | Liquid storage tank cover sub-assembly | 16475-51010 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-50240 |
| 16523A | Radiator bracket cushion | 16523-28030 |
| 16533 | Radiator upper bracket | 16533-28030 · 16533-31010 |
| 16535 | Radiator lower support | 16535-0A090 · 16535-0V010 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0V020 · 16561-0V030 |
| 16562 | Seal No. 2 (radiator to bracket) | 16561-0P050 · 16561-0V020 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-A0020 · 90466-A0024 · 90467-13128 · 96136-54301 · 96136-54801 |
| 16571C | Radiator hose No. 1 | 16571-0P170 · 16571-0V020 |
| 16571D | No. 1 radiator hose clip | 90466-A0020 · 90466-A0024 · 96136-54301 · 96136-54801 |
| 16571F | Clamps or clips (for water hoses) | 90467-13128 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-A0020 · 90466-A0024 · 96136-54301 · 96136-54801 |
| 16572D | Radiator hose No. 2 | 16572-0P190 · 16572-0V020 |
| 16572E | No. 2 radiator hose clip | 90466-A0020 · 90466-A0024 · 96136-54301 · 96136-54801 |
| 16581B | Hose clamp (for radiator hose) | 16581-26040 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-26040 · 16581-36010 |
| 16611 | Radiator reservoir bracket | 16611-0V010 |
| 16711 | fan cover | 16711-0P130 · 16711-0P140 · 16711-0V030 |
| 16712 | No. 2 fan cover | 16712-0P010 · 16712-0V010 |
