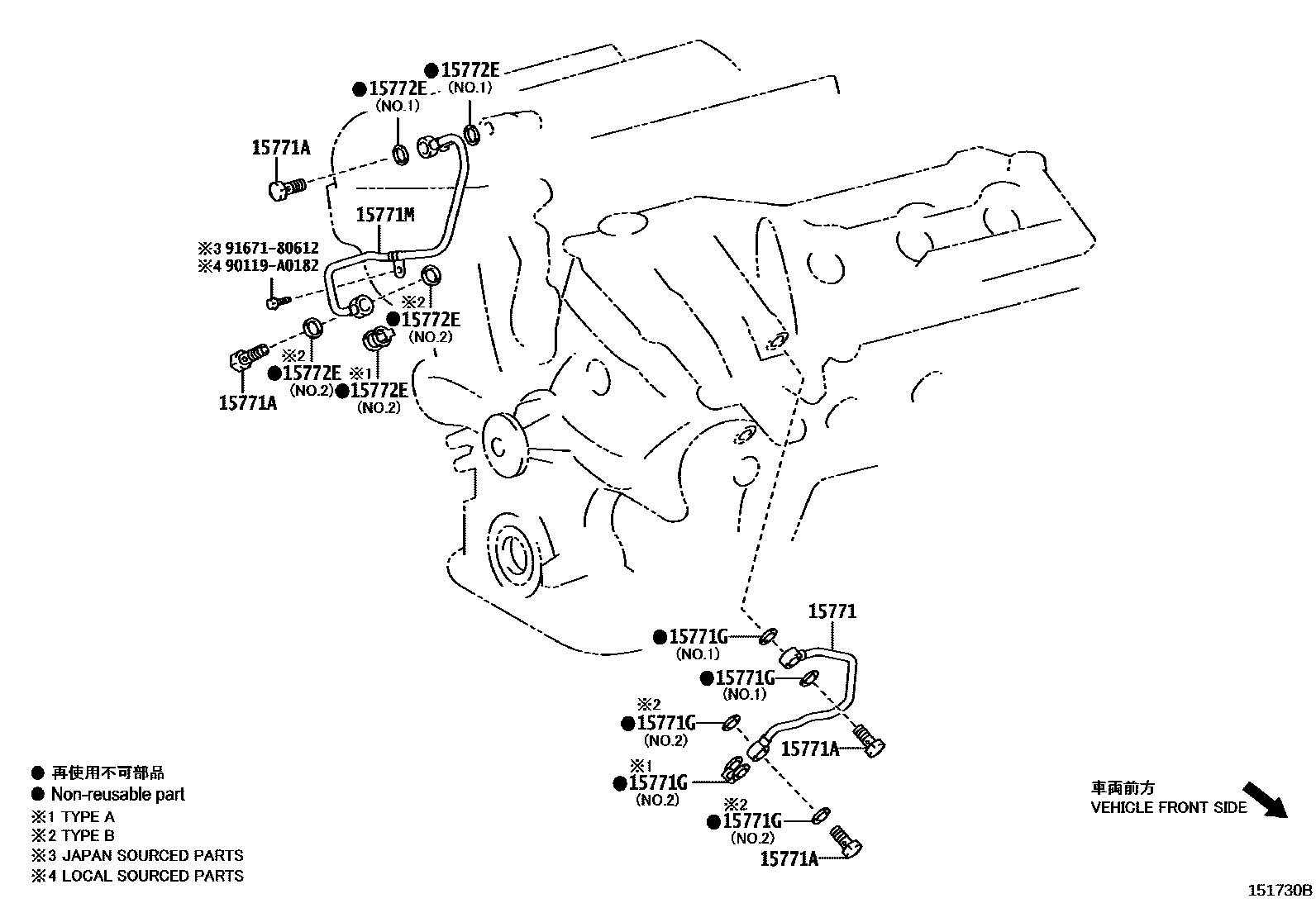

Toyota RAV4 Engine Oil Cooler — Figure 1503
Toyota RAV4 EPC diagram 1503, Engine Oil Cooler, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15771 | No. 1 oil pipe | 15771-31010 |
| 15771A | Connector (for oil pipe) | 90401-16043 |
| 15771G | padding | 90430-16016 · 90430-16017 |
| 15771M | Oil pipe | 15772-31030 |
| 15772E | Gasket (for oil pipe) | 90430-16016 · 90430-16017 |
