Toyota RAV4 Engine Oil Pump — Figure 1501

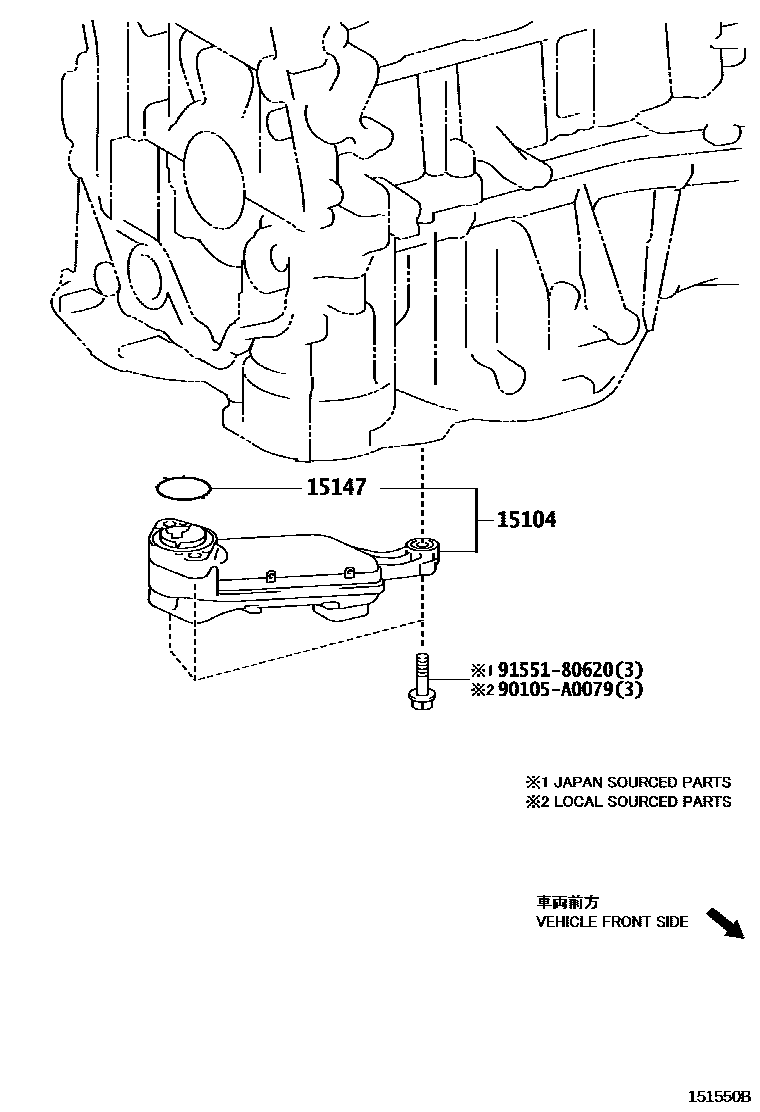

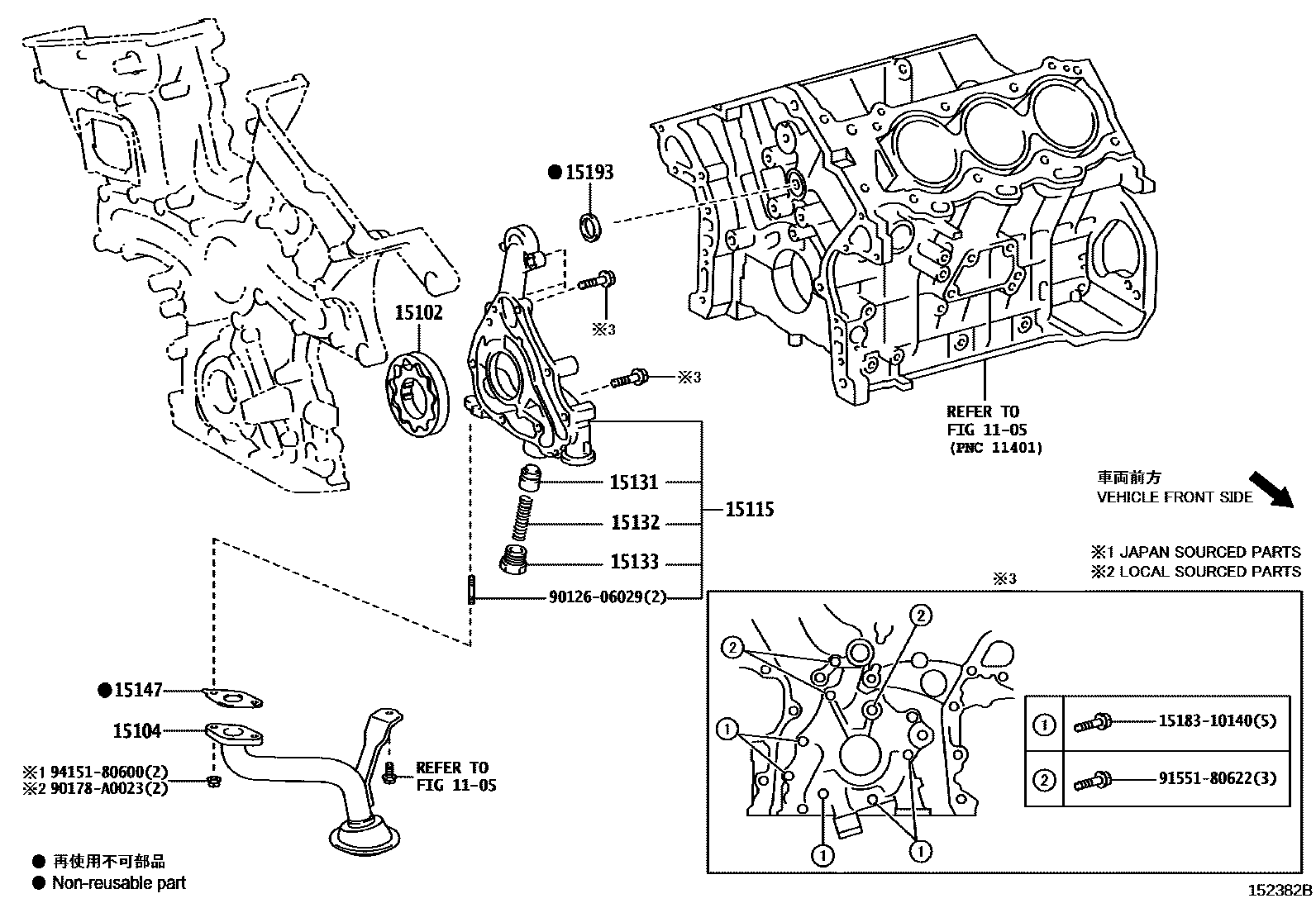

Toyota RAV4 EPC diagram 1501, Engine Oil Pump, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15102 | Oil pump rotor assembly | 15103-0P010 · 15103-31050 |
| 15104 | Oil filter sub-assembly | 15104-31120 · 15104-36030 |
| 15115 | oil pump cover | 15115-0P030 · 15115-31040 |
| 15131 | Oil pump pressure reducing valve | 15131-17010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-0A020 · 15132-46020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-28020 |
| 15147 | Oil filter gasket | 15147-0P020 · 15147-31060 · 15147-36010 |
| 15193 | oil pump gasket | 15193-0P010 · 15193-31020 |
