Toyota RAV4 Camshaft & Valve — Figure 1302

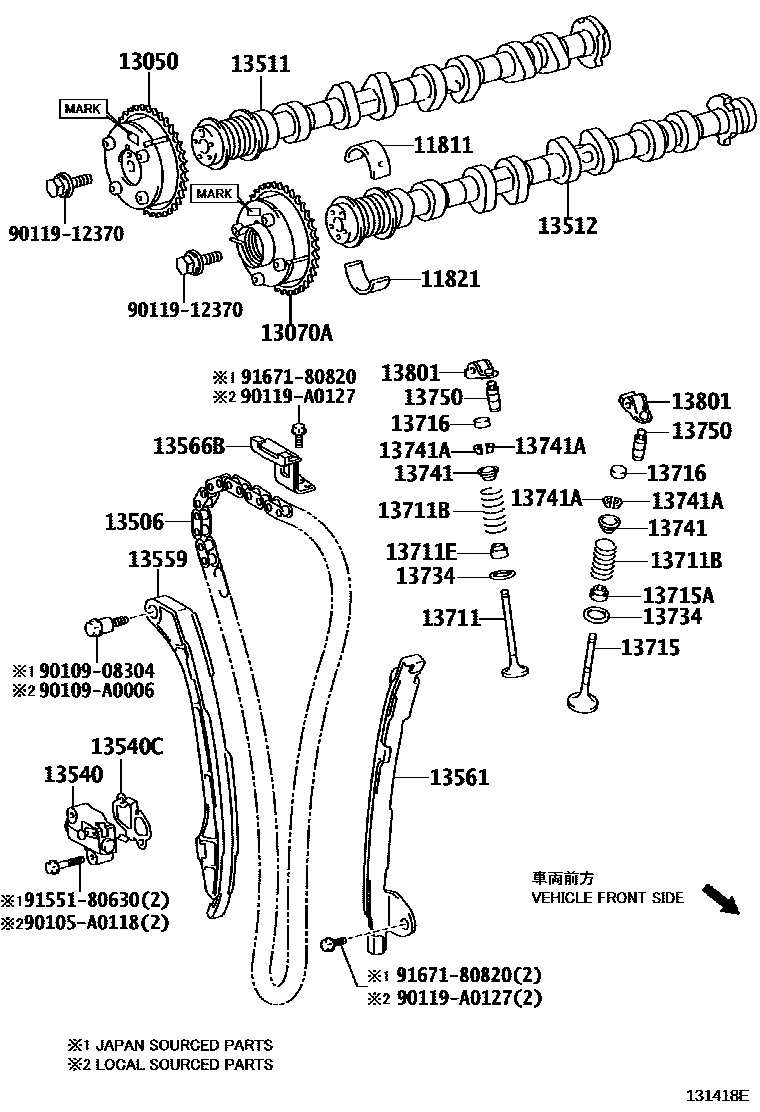

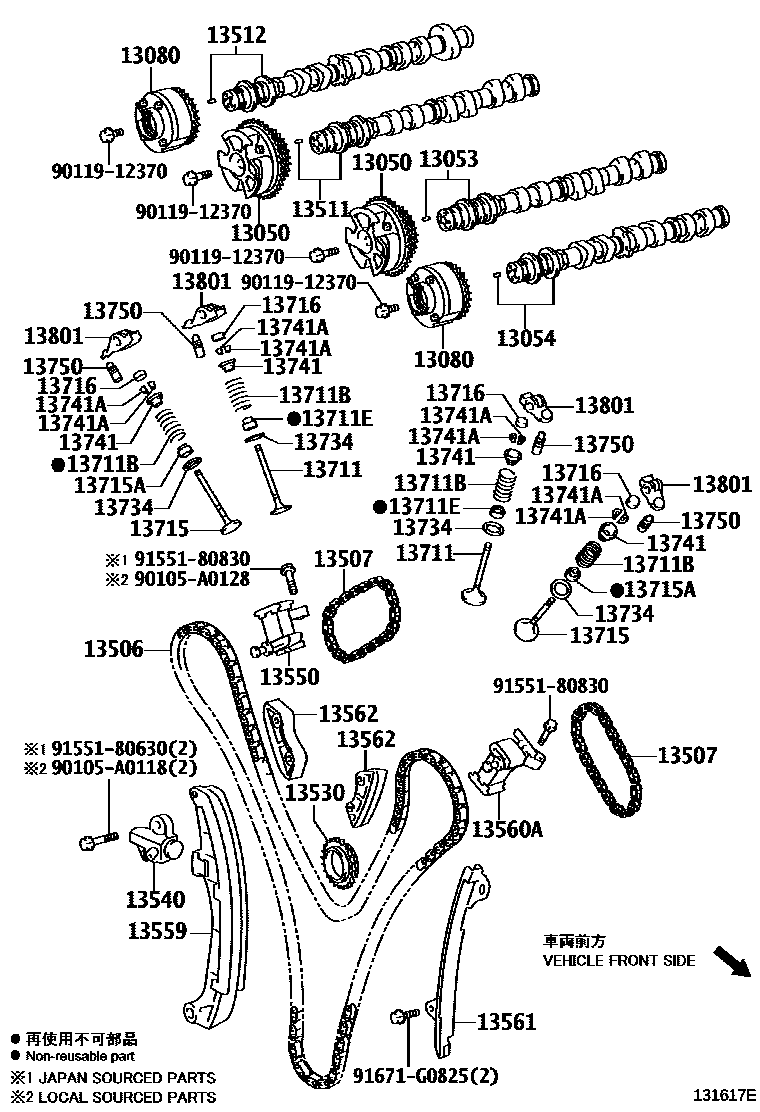

Toyota RAV4 EPC diagram 1302, Camshaft & Valve, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-0V020 · 11811-36010 |
| 11821 | No. 2 camshaft bearing | 11821-0V020 · 11821-36010 |
| 13050 | Camshaft timing gear assembly | 13050-0P070 · 13050-0P071 · 13050-0V011 · 13050-0V030 · 13050-0V040 · 13050-31170 · 13050-36010 · 13050-36011 · 13050-36030 |
| 13053 | No. 3 camshaft sub-assembly | 13053-0P021 · 13053-31080 |
| 13054 | No. 4 camshaft sub-assembly | 13054-0P021 · 13054-31080 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0V013 · 13070-0V040 · 13070-36010 · 13070-36011 · 13070-36030 |
| 13080 | Left exhaust camshaft timing gear assembly | 13080-0P040 · 13080-31050 |
| 13506 | Chain sub-assembly | 13506-0P011 · 13506-0V010 · 13506-31031 · 13506-36010 |
| 13507 | No. 2 chain sub-assembly | 13507-0P010 · 13507-31020 |
| 13511 | camshaft | 13501-0P021 · 13501-0V010 · 13501-31100 · 13501-36020 · 13501-36050 |
| 13512 | Camshaft No. 2 | 13502-0P021 · 13502-0V010 · 13502-31080 · 13502-36010 · 13502-36030 |
| 13530 | Idle sprocket assembly | 13530-31021 |
| 13540 | No. 1 chain tensioner assembly | 13540-0P010 · 13540-0V010 · 13540-31021 · 13540-36010 |
| 13540C | Pad (for chain tensioner) | 13552-0V010 · 13552-36010 |
| 13550 | No. 2 chain tensioner assembly | 13550-0P010 · 13550-31020 |
| 13559 | chain tensioner guide plate | 13559-0P010 · 13559-0V010 · 13559-31020 · 13559-36010 |
| 13560A | No. 3 chain tensioner assembly | 13560-0P010 · 13560-31020 |
| 13561 | No. 1 chain shock absorber | 13561-0P010 · 13561-0V010 · 13561-31021 · 13561-36010 |
| 13562 | No. 2 chain shock absorber | 13562-0P010 · 13562-31020 |
| 13566B | Timing chain guide plate | 13566-0V010 · 13566-0V011 · 13566-36010 · 13566-36011 |
| 13711 | intake valve | 13711-0P010 · 13711-0V010 · 13711-31100 · 13711-36060 |
| 13711B | Compression spring (for inner side) | 90501-33023 · 90501-34016 · 90501-34017 · 90501-36007 · 90501-A0050 · 90501-A0090 |
| 13711E | Intake valve stem oil seal | 90080-31043 · 90913-02101 |
| 13715 | exhaust valve | 13715-0P010 · 13715-0P030 · 13715-0V010 · 13715-31120 · 13715-31150 · 13715-36020 |
| 13715A | Exhaust valve stem oil seal | 90080-31101 · 90913-02112 |
| 13716 | valve stem cover | 13716-75020 |
| 13734 | Valve spring seat | 13734-0P010 · 13734-62020 |
| 13741 | Valve spring seat ring | 13741-0P010 · 13741-0V010 · 13741-20021 · 13741-31020 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-A3001 |
| 13750 | Valve lash adjuster assembly | 13750-0P020 · 13750-31030 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0P010 · 13801-23011 |
