Toyota RAV4 Crankshaft & Piston — Figure 1301

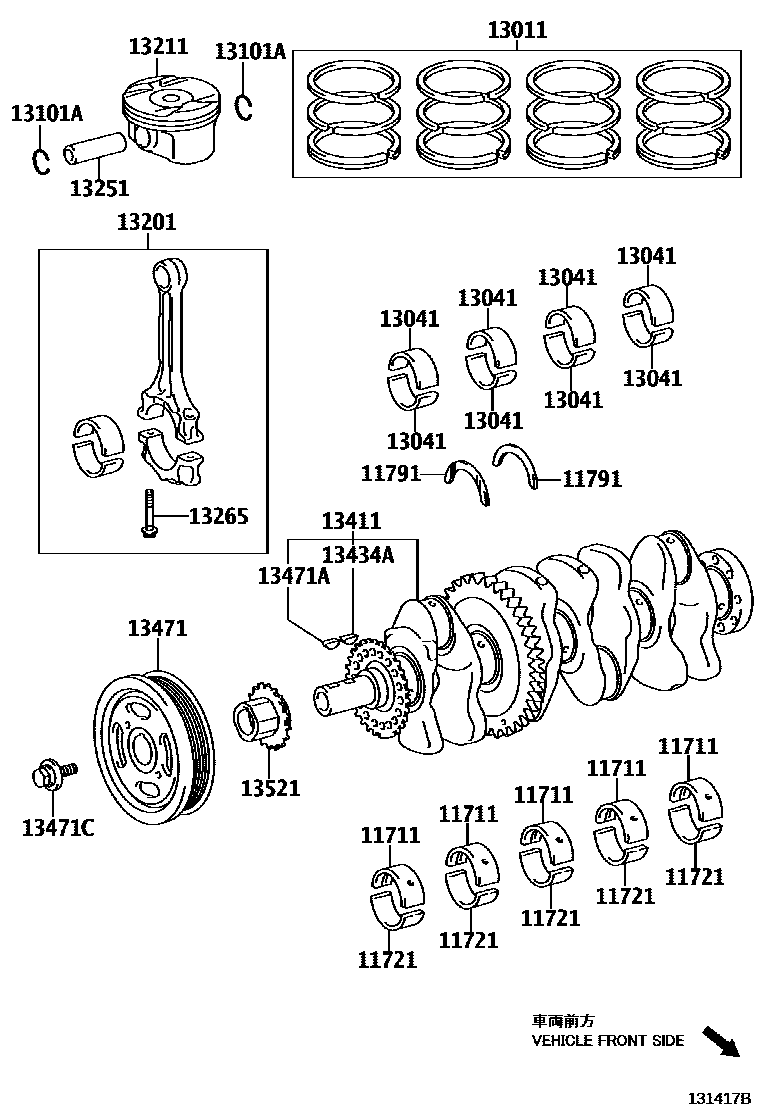

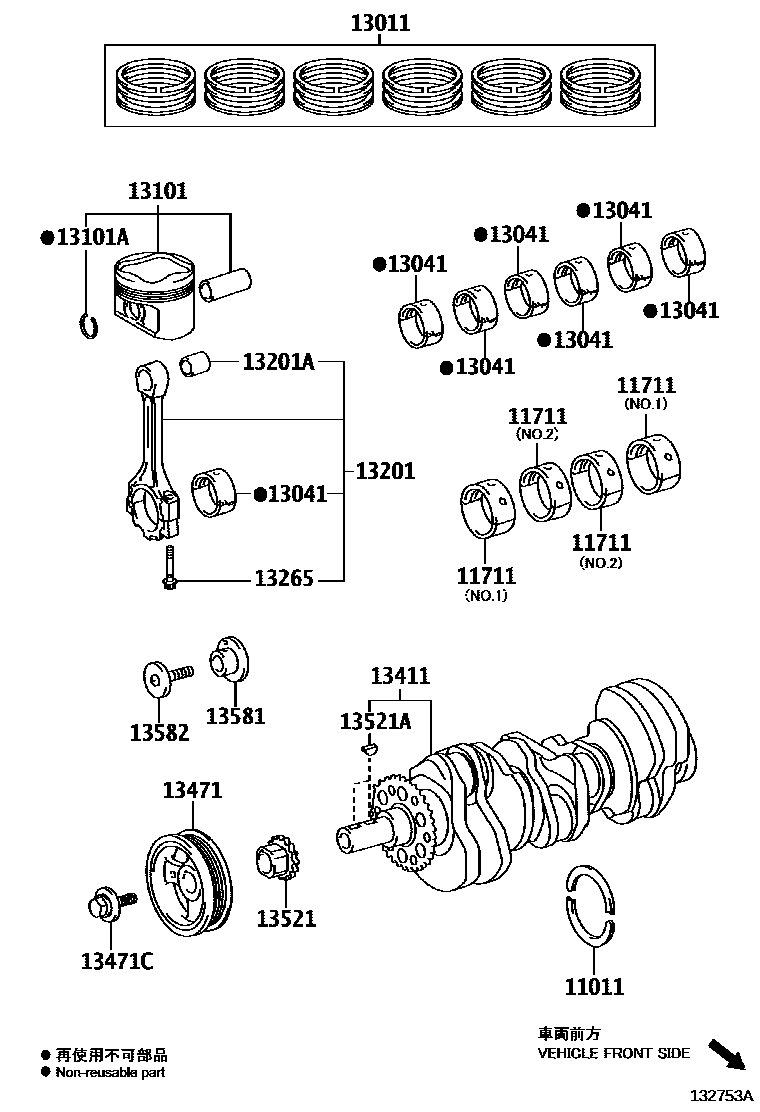

Toyota RAV4 EPC diagram 1301, Crankshaft & Piston, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-0P030 · 11011-31060 |
| 11791 | Thrust washer on crankshaft | 11791-0V010 · 11791-36010 |
| 13011 | Piston ring assembly | 13011-0P040 · 13011-0V010 · 13011-31130 · 13011-31150 · 13011-36030 · 13011-36070 |
| 13101 | Piston sub-assembly with pin | 13101-0P053 · 13101-31091 |
| 13101A | Bore snap ring (for piston pin) | 90520-22025 · 90520-A0004 |
| 13201 | Connecting rod sub-assembly | 13201-09830 · 13201-39135 |
| 13201A | Bushing (for connecting rod small end) | 90999-73144 |
| 13265 | Connecting rod bolts | 13265-28010 · 13265-31020 |
| 13411 | crankshaft | 13401-0P030 · 13401-0V010 · 13401-31040 · 13401-36010 · 13401-36011 |
| 13434A | Key (for oil pump active spline) | 95161-30516 |
| 13471 | crankshaft pulley | 13470-0V020 · 13470-31030 · 13470-36010 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-16004 · 90119-16020 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0P011 · 13521-0V010 · 13521-31041 · 13521-36010 |
| 13521A | Key (for crankshaft timing gear) | 95161-30516 |
| 13581 | No. 1 idler shaft | 13581-31030 · 13581-AD010 |
| 13582 | No. 2 idler shaft | 13582-31031 |
