Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

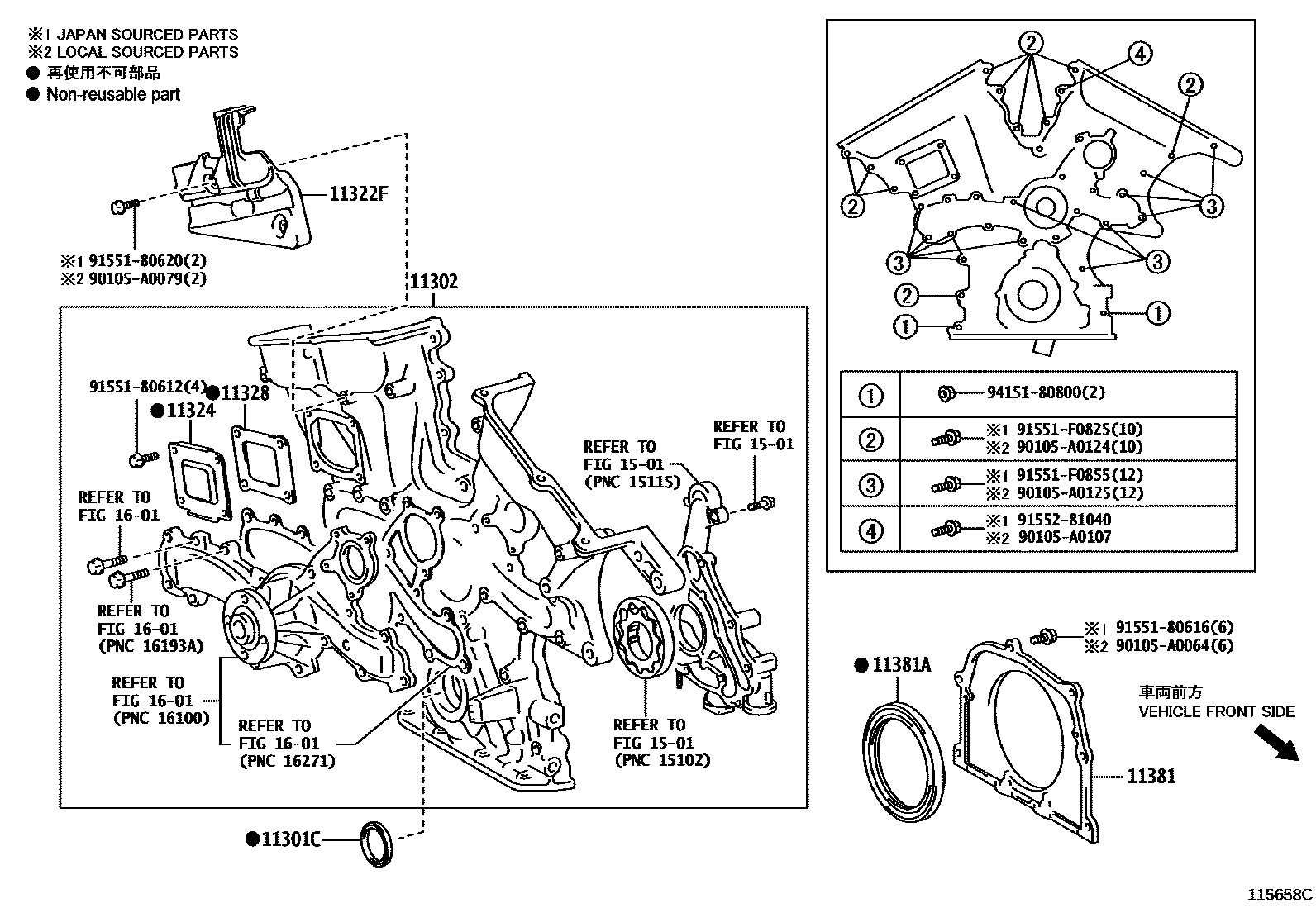

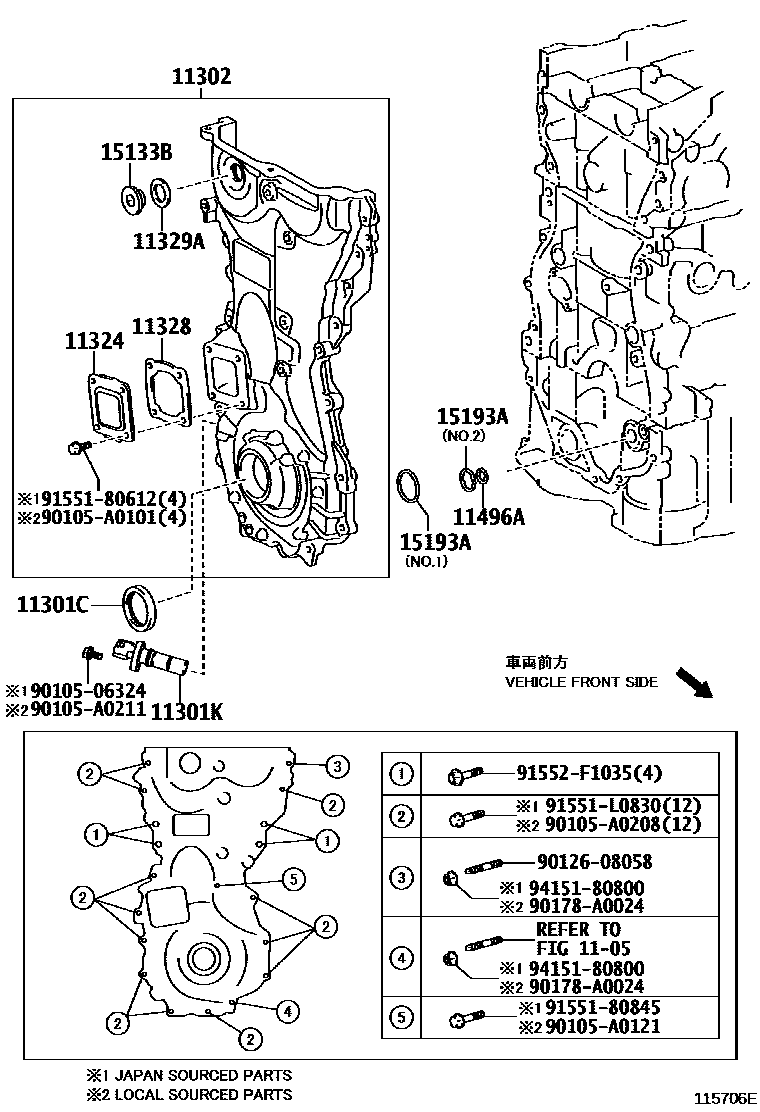

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-42037 · 90311-42043 · 90311-42045 · 90311-A0005 · 90311-A0015 · 90311-A0019 |
| 11301K | crankshaft position sensor | 90919-05070 · 90919-A5004 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11310-0P040 · 11310-0V020 · 11310-31020 · 11310-36020 · 11310-36040 |
| 11322F | No. 2 timing gear cover | 11322-31021 |
| 11324 | Timing chain cover | 11324-0P010 · 11324-0V010 · 11324-31020 · 11324-36010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-0P010 · 11328-0V010 · 11328-31030 · 11328-36020 |
| 11329A | No. 2 timing belt or chain cover gasket | 11329-36010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-31021 |
| 11381A | SEAL, ENGINE REAR OIL | 90080-31053 · 90311-92009 · 90311-92010 |
| 11496A | Oil hole cover gasket | 11496-36010 |
| 15133B | PLUG, OIL PUMP RELIEF VALVE | 15133-36020 |
| 15193A | oil pump gasket | 15193-36010 · 15197-36010 |
