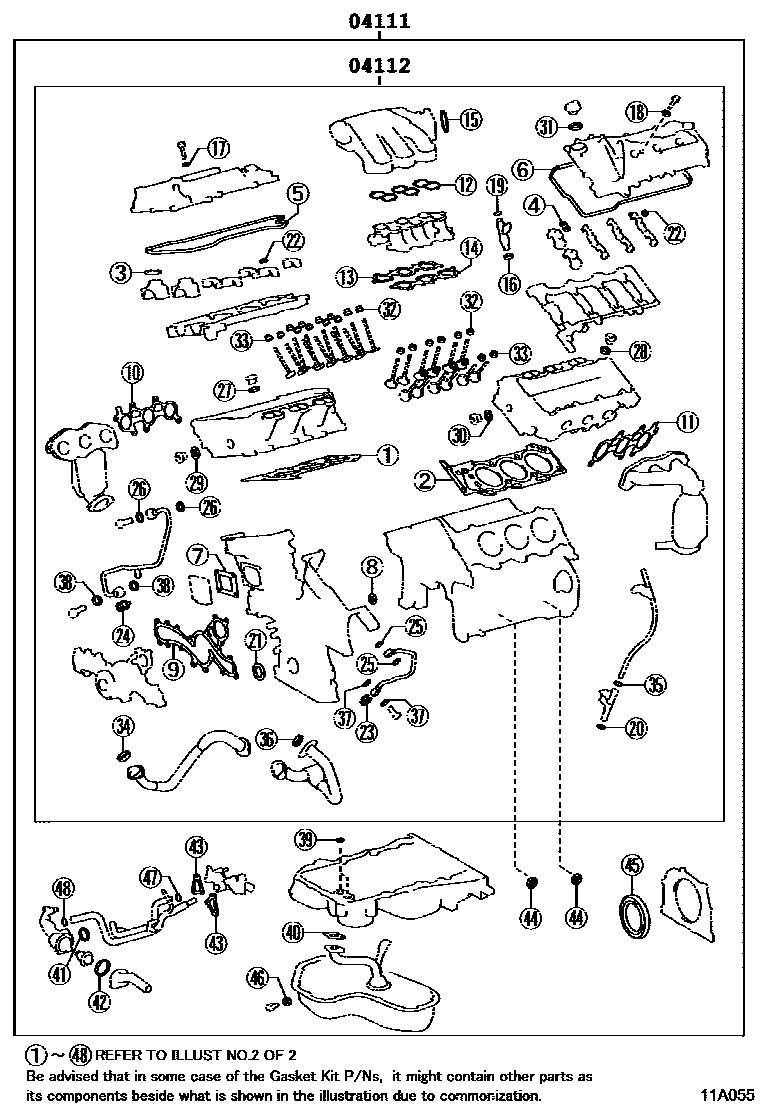

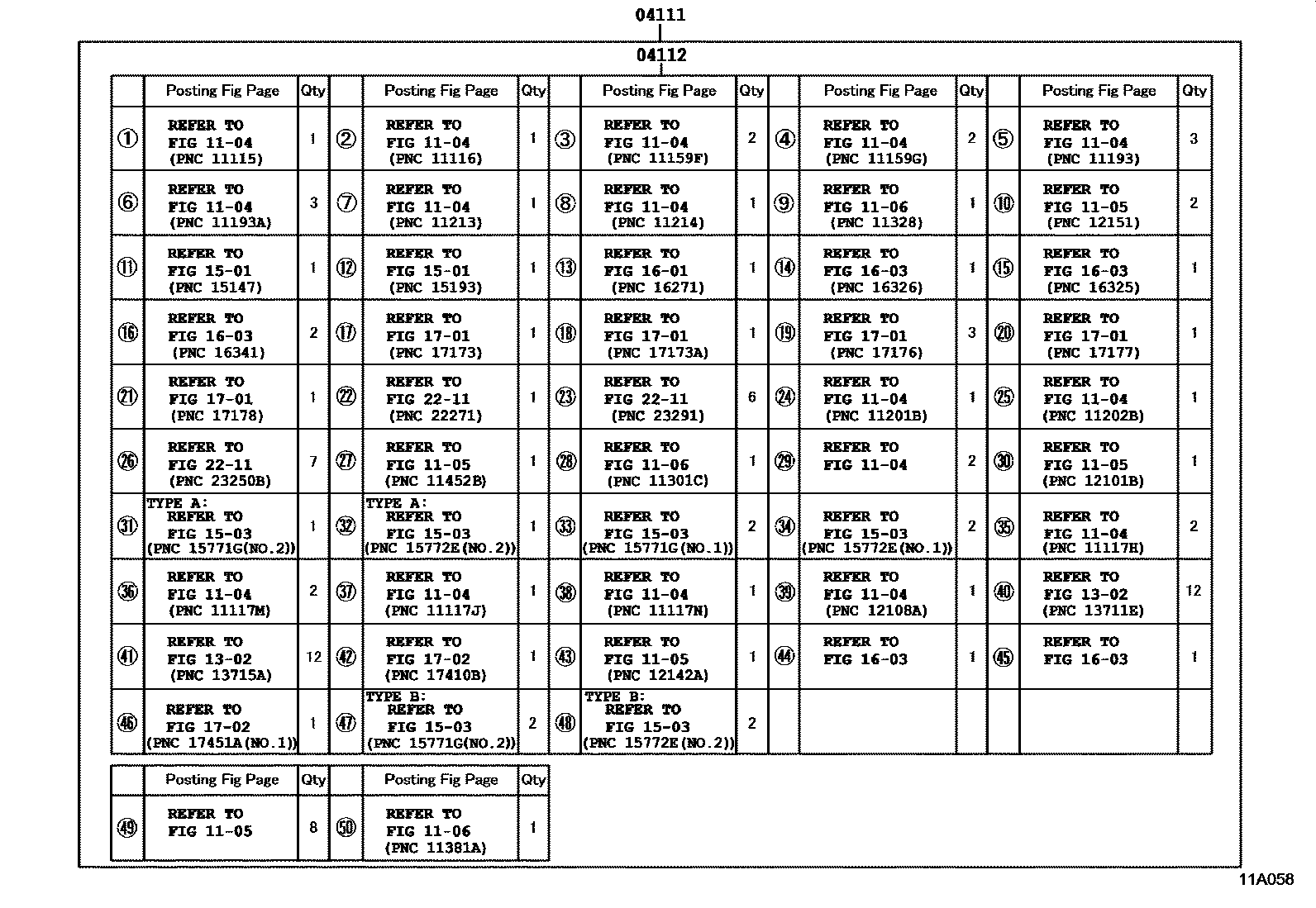

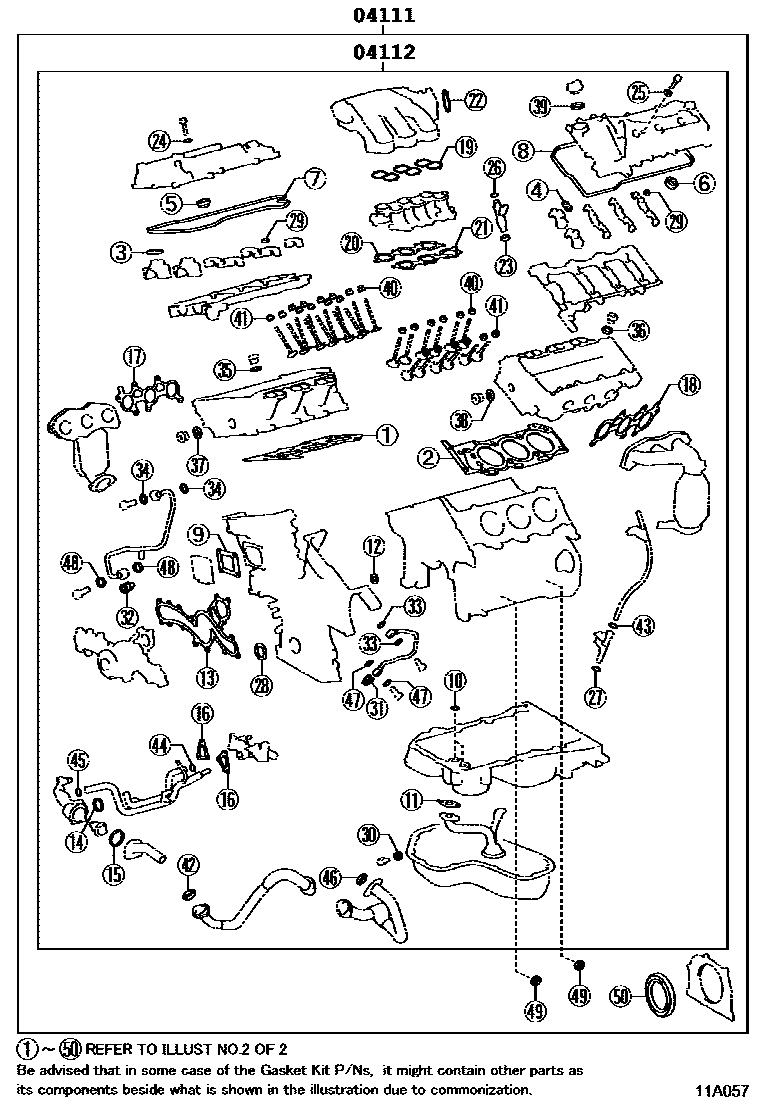

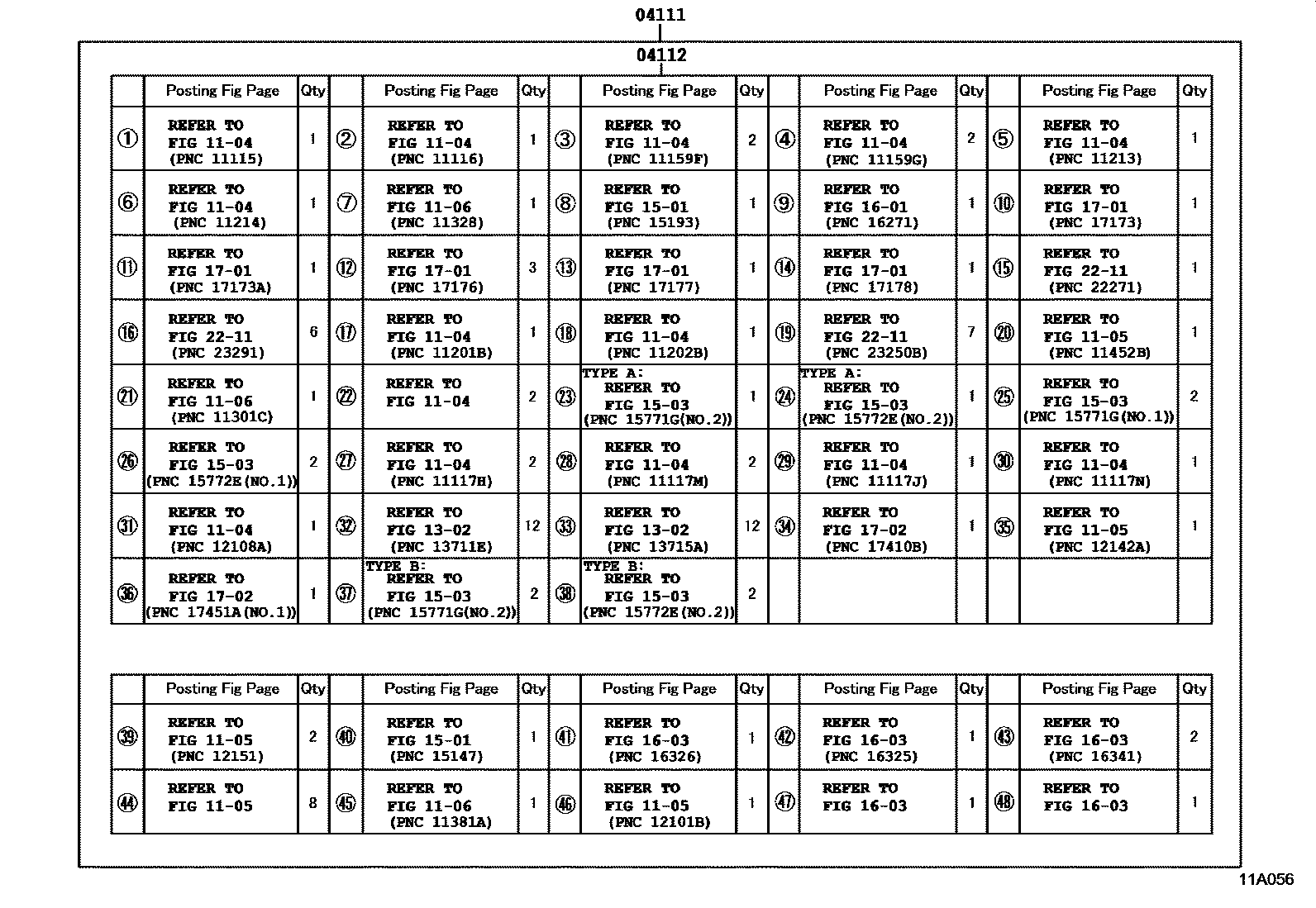

Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103
Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 5 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-0P063 · 04111-0P064 · 04111-0P140 · 04111-0P181 · 04111-0V021 · 04111-0V030 · 04111-31442 · 04111-31443 · 04111-31444 · 04111-36060 · 04111-36061 · 04111-36062 |
| 04112 | Engine valve grinding pad assembly | 04112-0P053 · 04112-0P054 · 04112-0P055 · 04112-0P120 · 04112-0P171 · 04112-0V021 · 04112-0V030 · 04112-31272 · 04112-31273 · 04112-31274 · 04112-36050 · 04112-36051 |
