Toyota RAV4 暖风和空调系统 - 水管 — Figure 8716

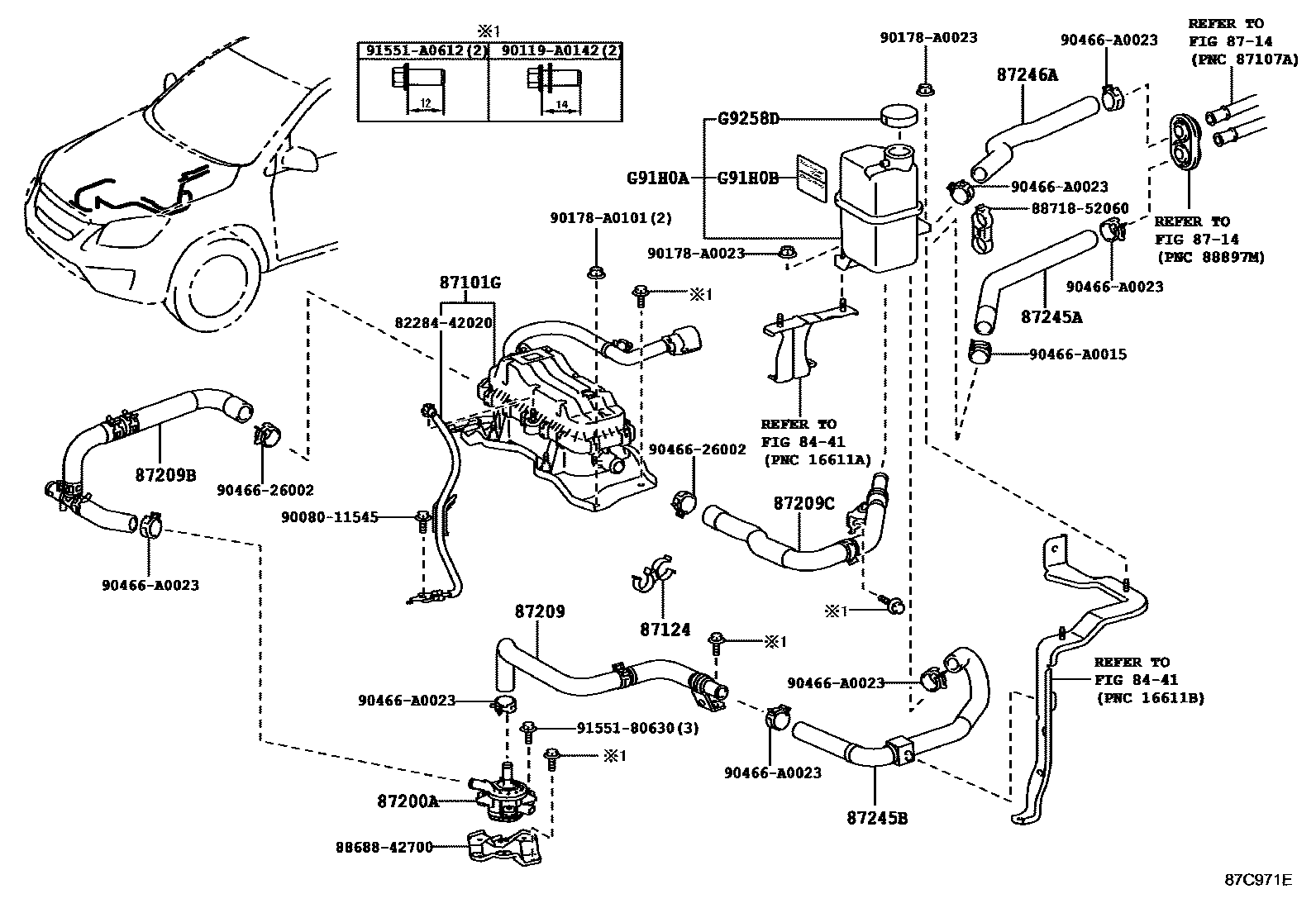

Toyota RAV4 EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101G | SS-ENS. RECHAUFFEUR, ELECTRIQUE | 87101-42010 |
| 87124 | heater clip | 87124-26410 |
| 87200A | Water pump assembly (for heater) | G9040-33020 |
| 87209 | Water hose sub-assembly | 87209-0R070 |
| 87209B | Water hose sub-assembly B | 87209-0R080 |
| 87209C | Water hose sub-assembly C | 87209-0R090 |
| 87245A | Heater water inlet hose A | 87245-0R040 |
| 87245B | Heater water inlet hose B | 87245-0R060 |
| 87246A | Heater outlet hose A | 87245-0R030 |
| G91H0A | Heater liquid tank assembly | G91H0-42010 |
| G91H0B | Coolant system information label | 11285-10010 |
| G9258D | Heater reservoir cap | G9258-47011 |
