Toyota RAV4 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota RAV4 EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

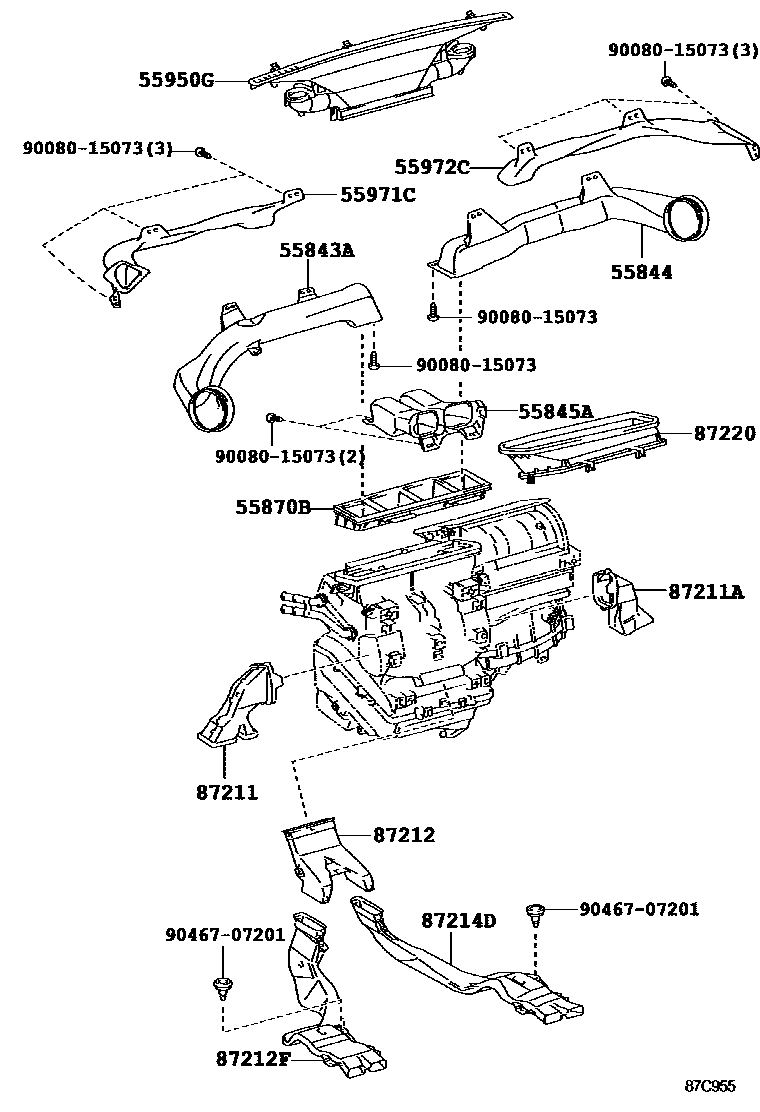

| 55843A | Air duct No. 1 from heater to air register | 55843-0R010 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-0R010 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-0R010 |
| 55870B | Heater to air regulator air duct assembly | 55870-0R010 |

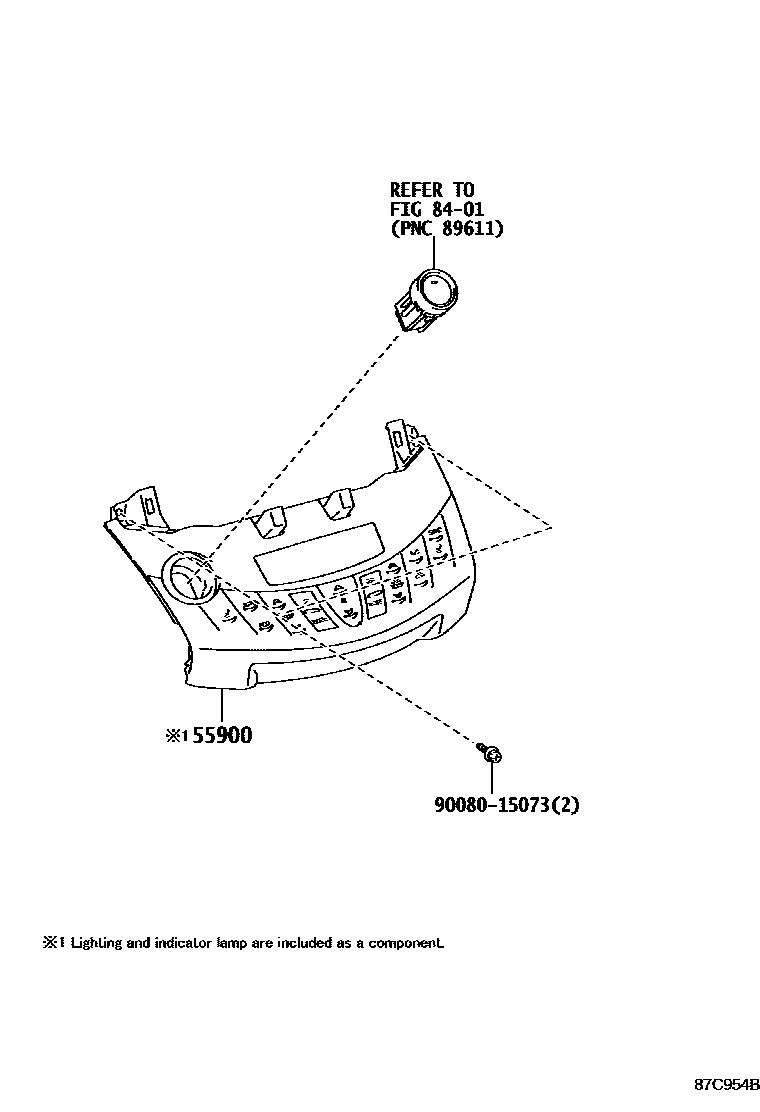

| 55900 | Air conditioning control assembly | 55900-0R080 |
| 55950G | Defroster nozzle assembly | 55950-0R010 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-0R010 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-0R010 |
| 87211 | No. 1 air duct | 87211-0R010 |
| 87211A | Duct No. 2 | 87211-0R020 |
| 87212 | No. 1 rear air duct | 87215-0R010 |
| 87212F | No. 2 rear air duct | 87213-0R010 |
| 87214D | No. 3 rear air duct | 87212-0R050 |
| 87220 | Air duct assembly | 87220-0R010 |
| 87268W | Protective parts | 87268-33030 |

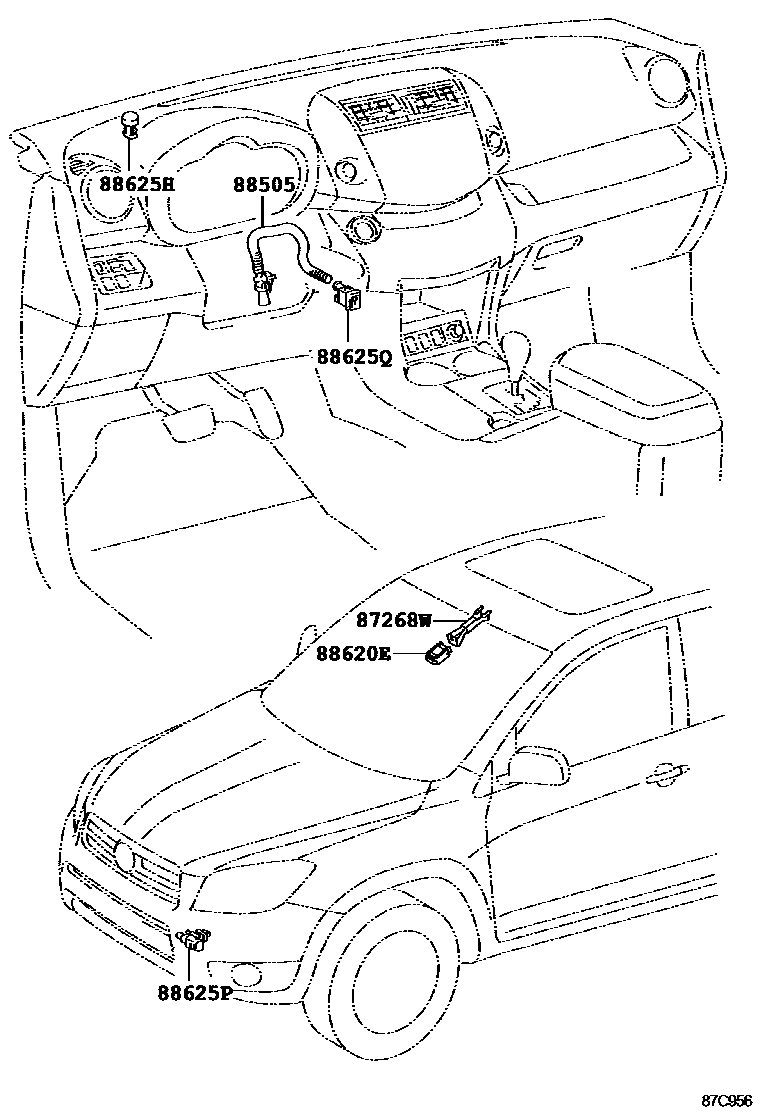

| 88505 | Air conditioning duct sub-assembly | 88505-0R010 |
| 88620E | Air conditioning thermistor assembly | 88620-33010 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-51010 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-06010 · 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06040 · 88625-47021 |
