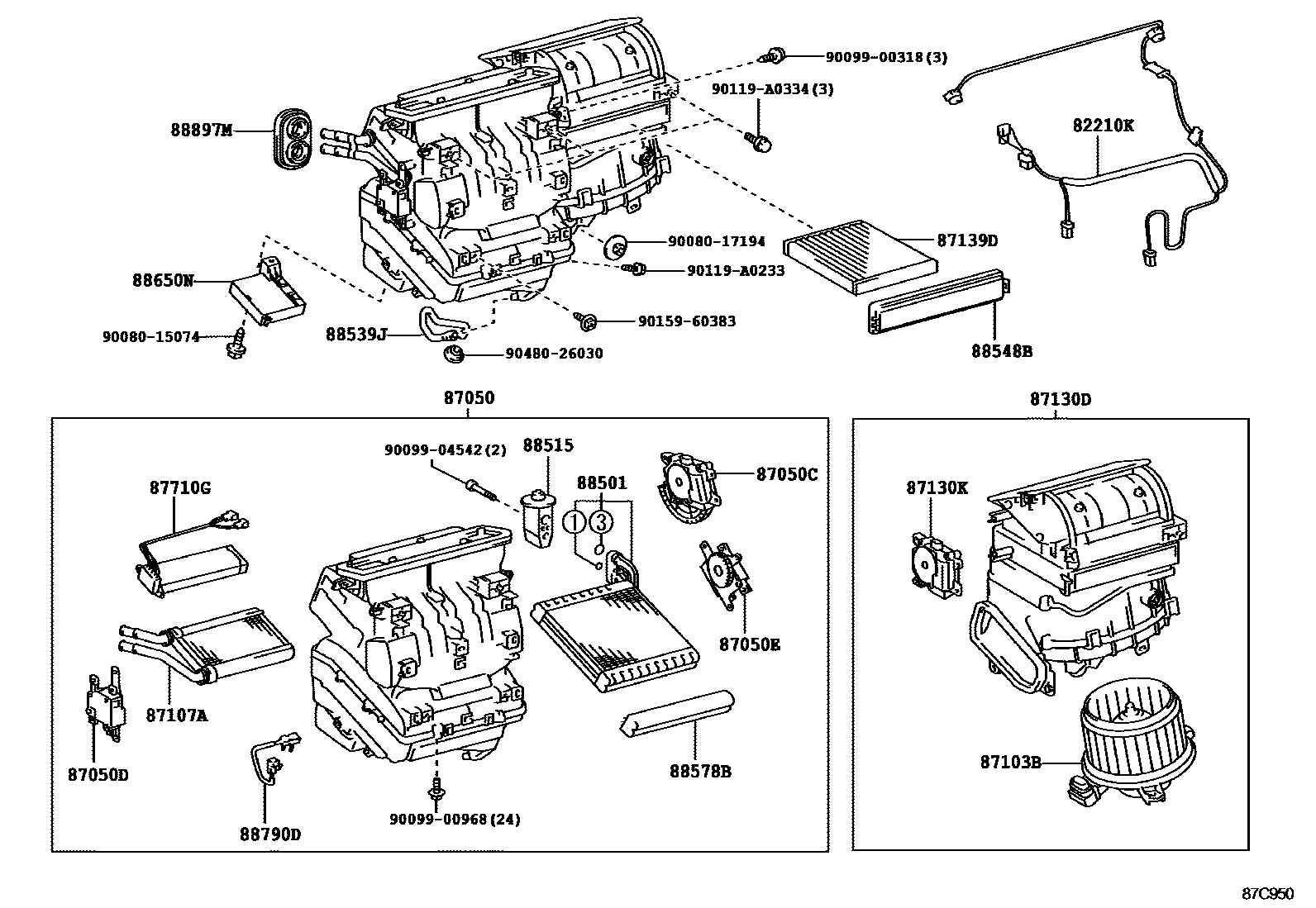

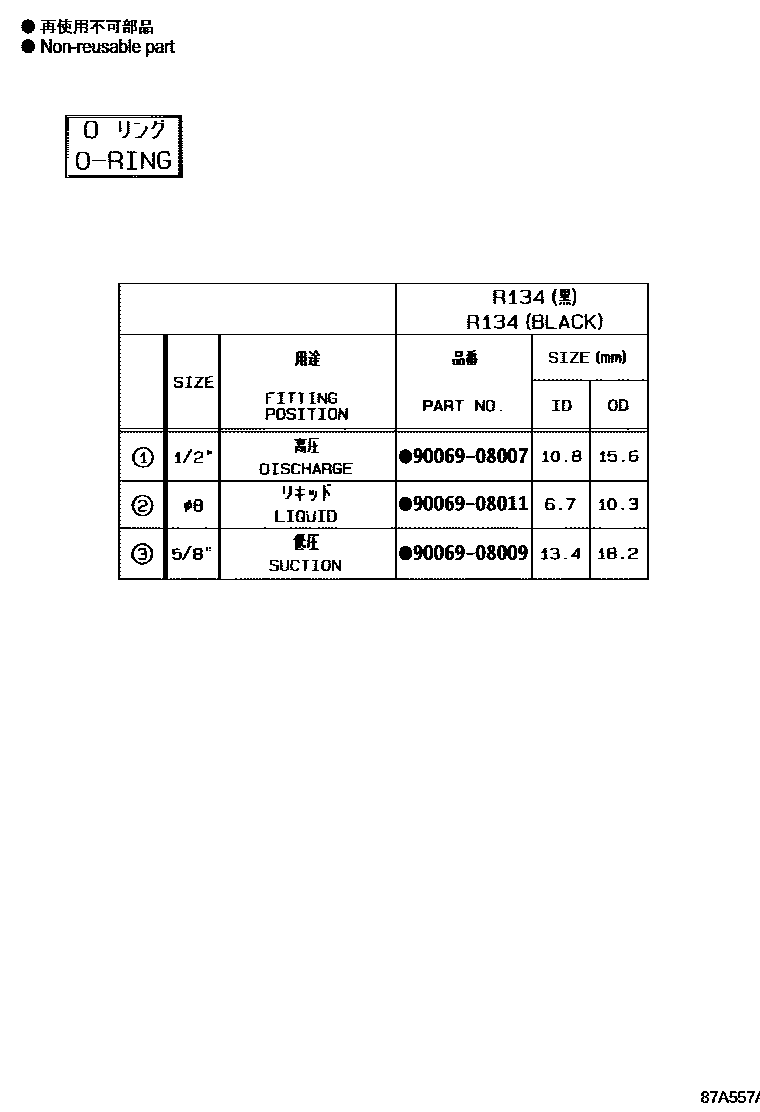

Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0R010 |
| 87050 | Air conditioning radiator assembly | 87050-0R060 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-02200 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-0R020 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-0R060 |
| 87103B | Blower motor sub-assembly with fan | 87103-0R030 |
| 87107A | Heater radiator device sub-assembly | 87107-02230 |
| 87130D | Blower assembly | 87130-0R050 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-02220 |
| 87139D | Air fine filter element | 87139-02090 · 87139-07020 · 87139-50100 |
| 87710G | Rapid heater assembly | 87710-42020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0R010 |
| 88515 | Cooler expansion valve | 88515-02530 |
| 88539J | Cooler drain hose | 88539-0R010 · 88539-0R011 |
| 88548B | air filter housing | 88548-02110 |
| 88578B | Cooling unit seal No. 1 | 88619-BZ030 |
| 88650N | Air conditioning amplifier assembly | 88650-0R130 · 88650-0R131 |
| 88790D | Thermistor assembly | 88790-35060 |
| 88897M | Seals (for heater tubes) | 87128-02040 |
