Toyota RAV4 后视镜 — Figure 8701

Toyota RAV4 EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.

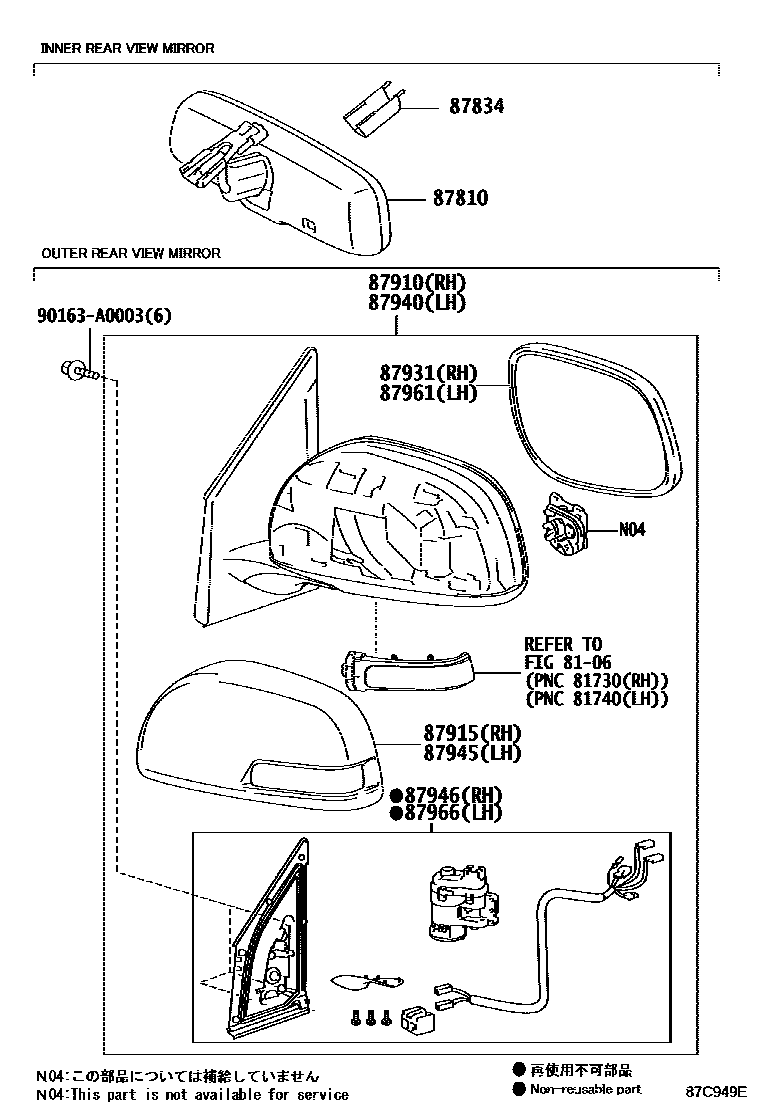

Toyota RAV4 后视镜 EPC diagram — 87C949E
后视镜 — 87C949E (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0R020
87834Interior rearview mirror stay fixing cover87818-04010
87931Right exterior rearview mirror87931-42C90
87946Right exterior rearview mirror retractor87946-42C90
87961Left exterior rearview mirror87961-42C60
87966Left exterior rearview mirror retractor87966-42C60
